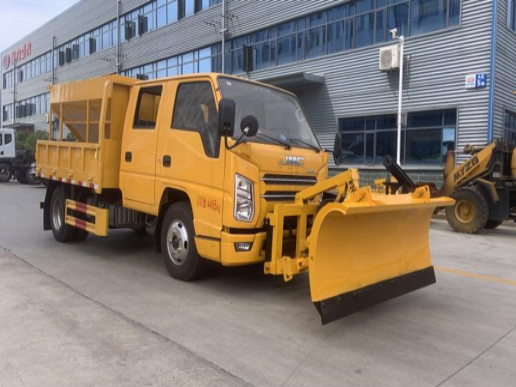

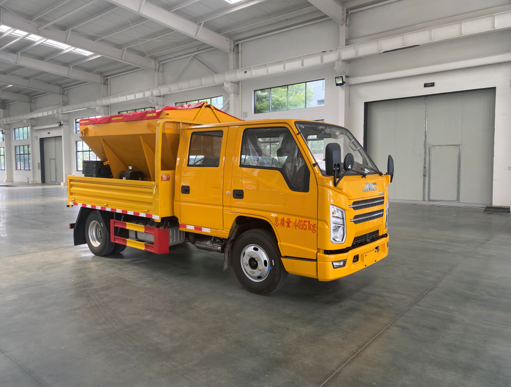

JMC Double-row Snow Removal Truck

Name: JMC Double-row Snow Removal Truck
Brand: SHENBAI
Availability: OutOfStock

1 / 5

1. Complete Vehicle Basic Parameters

Parameter	Value
Vehicle Type	Snow Removal Truck
Complete Vehicle Model	CL5040TCX6HL
Gross Vehicle Weight	4495 kg
Rated Load Capacity	830 kg / 520 kg
Curb Weight	3340 kg / 3650 kg
Number of Axles	2
Axle Load Distribution	1725 kg / 2770 kg
Cab Seating Capacity	2 + 3 Persons (Double Cab)
Fuel Type	Diesel
Maximum Speed	100 km/h
Chassis Model	JX1041TSG26

2. Dimension & Wheel Parameters

Parameter	Value
Overall Dimension (L×W×H)	5870 / 5775 / 5950 × 2060 × 2230 / 2500 mm
Wheelbase	3360 mm
Front Overhang / Rear Overhang	1075 mm / 955 mm
Approach Angle / Departure Angle	13° / 22°
Front Track Width	1385 mm
Rear Track Width	1425 mm
Tire Specification	7.00R16LT 10PR
Number of Tires	6
Leaf Spring Configuration	7 / 4+6, 7 / 5+6

3. Powertrain System

Parameter	Value
Engine Model	JX4D30B6H
Engine Power	JMC 115 HP

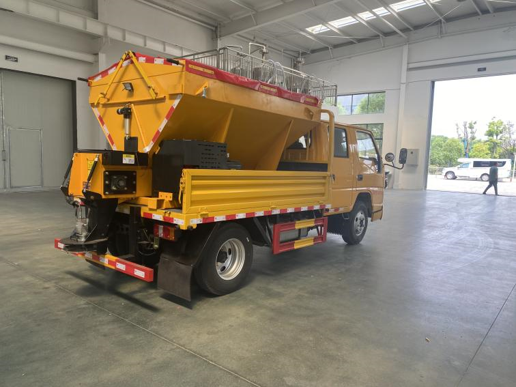

4. Hopper & Deicing Agent Spreader

Parameter	Value
Hopper Material	Q235 Carbon Steel
Hopper Dimension (L×W×H)	2600 × 2060 × 400 mm
Spreader Hopper Volume	3 m³
Spreader Material	4mm Carbon Steel
Power Source	Chassis PTO / Single Cylinder Auxiliary Engine
Fuel Type for Auxiliary Engine	Diesel
Material Conveying Type	Scraper Conveyor
Spreading Width	2 – 14 m (adjustable)
Spreader Disc Material	Stainless Steel
Spreader Disc Diameter	350 mm
Deicing Agent Application Rate	20 – 200 g/m² (adjustable)
Working Speed	5 – 20 km/h
Control Mode	Wired In-Cab Operation
Uniform Feeding Feature	Filter screen prevents large particles/debris from entering, ensures equipment and traffic safety
Loading/Unloading Feature	Detachable dedicated lifting support system for easy storage in non-operating state
Structural Feature	V-shaped hopper with simple reliable structure, ensures automatic complete discharging with no residue

5. Optional 2m Snow Plow

Parameter	Value
Product Model	CHL-XC-2000
Weight	260 kg
Overall Dimension (L×W×H)	2000 × 1080 × 1000 mm
Working Voltage	12V / 24V (selected per chassis)
Lifting Height	200 – 400 mm
Operation Mode	Electro-Hydraulic Linkage Control
Control Voltage	12/24V matched power unit
Left-Right Deflection Angle	≥ 30°
Snow Removal Efficiency	90 %
Maximum Obstacle Clearance Height	100 mm
Working Speed	5 – 30 km/h
Blade Thickness	4 mm
Cutting Edge Thickness	14 mm
Cutting Edge Material	High Wear-Resistant Steel

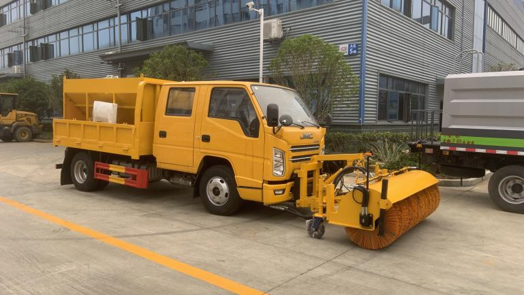

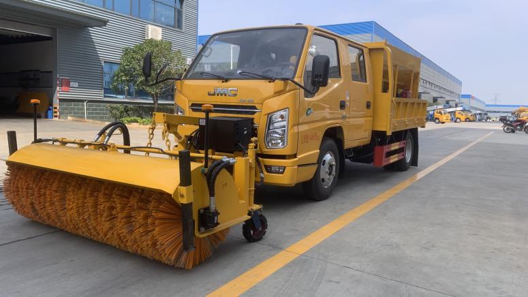

6. Optional 2m Snow Roller Brush

Parameter	Value
Sweeping Width	2 m
Left-Right Adjustment Angle	± 30°
Brush Diameter	660 mm
Working Speed	5 – 20 km/h
Obstacle Clearance Height	250 mm
Total Weight	300 – 350 kg
Control Mode	Remote Control
Drive System	Independent Hydraulic Unit
Brush Material	Polypropylene mixed with elastic steel wire
Support Wheels	2 load-bearing wear-resistant universal wheels
Brush Protection	Support rods on both ends to prevent brush crushing damage
Position Indicator	Warning lights for brush head position monitoring during operation

7. Chassis Standard Configuration

Parameter	Value
Cab Color	Engineering Yellow
Cab Interior	Original Factory Air Conditioner, Electric Windows, Central Door Locking
Brake System	ABS Hydraulic Brake, Exhaust Brake
Safety Feature	Seatbelt Voice Alarm Reminder
