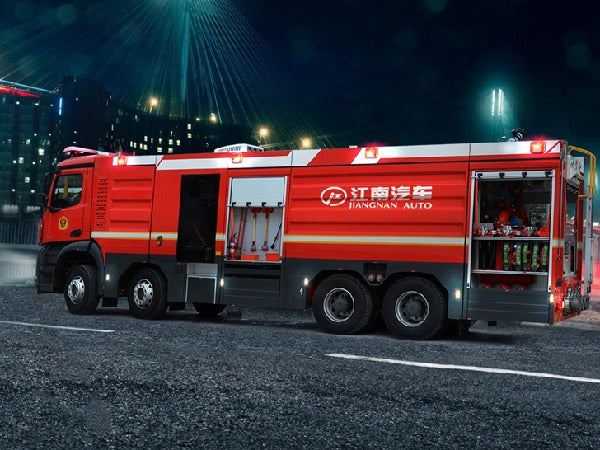

MERCEDES-BENZ 18 TON FOAM FIRE TRUCK TECHNICAL
| Item | Specification |
|---|---|
| 1. CHASSIS BASIC PARAMETERS | |
| Chassis Brand & Model | Mercedes-Benz Actros 6x4 |
| Drive Type | 6×4 Rear Double Axle Drive |
| Cab Type | Double Row 4-door Crew Cab, 6 Seats Total |
| Wheelbase | 3800 + 1450 mm |
| Overall Dimension (L×W×H) | 10200 × 2500 × 3480 mm |
| Tire Specification | 12.00R20 Heavy Duty Radial Tire, 10 pcs |
| Transmission Gearbox | Automatic Transmission |
| Steering System | Hydraulic Power Steering |
| Brake System | Full Air Brake with ABS & ASR Anti-slip System |
| Max Travel Speed | 95 km/h |
| Emission Standard | Euro VI |
| 2. ENGINE PARAMETERS | |
| Engine Model | Mercedes-Benz OM470LA |
| Fuel Type | Diesel |
| Rated Power | 350 kW / 476 HP |
| Displacement | 12.8 L |
| Intake Mode | Turbocharged & Intercooled |
| Cooling Mode | Water Cooling |
| 3. VEHICLE WEIGHT & LOAD CAPACITY | |
| Gross Vehicle Weight (GVW) | 32000 kg |
| Curb Weight | 14000 kg |
| Rated Liquid Loading Capacity | 18000 kg |
| Front Overhang | 1500 mm |
| Rear Overhang | 2450 mm |
| 4. TANK & LIQUID CAPACITY | |
| Water Tank Volume | 15000 L |
| Foam Tank Volume | 3000 L |
| Total Liquid Capacity | 18000 L |
| Water Tank Material | High-strength Carbon Steel with Full Anti-corrosion & Anti-rust Treatment |
| Foam Tank Material | 304 Food Grade Stainless Steel |
| Tank Structure | Built-in Wave Baffles, Reinforced Tank Body, Float-type Liquid Level Indicator |
| Tank Thickness | 5mm Tank Body, 6mm Tank Head |
| Drain Valve | 3-inch Stainless Steel Ball Valve |
| Manhole | 500mm Diameter Sealed Manhole with Access Ladder |
| 5. FIRE FIGHTING CORE PERFORMANCE | |
| Fire Pump Model | Medium & Low Pressure Dual-purpose Fire Pump |
| Rated Pump Flow | 50 L/s |
| Rated Working Pressure | 1.0 MPa |
| Suction Depth | ≥ 7 m |
| Self-priming Time | ≤ 25 s |
| Fire Monitor | PL40 Water & Foam Dual-purpose Cannon |
| Rated Monitor Flow | 40 L/s |
| Water Jet Range | ≥ 65 m |
| Foam Jet Range | ≥ 55 m |
| Monitor Rotation | 360° Horizontal Rotation, -30° ~ +70° Vertical Pitch |
| Power Take-off (PTO) | Full Power Sandwich PTO |
| Foam Proportioning System | Automatic & Manual Dual Control Mixing System |
| 6. STANDARD EQUIPMENT | |
| Fire Fighting Accessories | Full set of fire hoses, suction pipes, quick couplings, spray nozzles & fire hydrant connectors |
| Warning & Lighting System | Roof red long row warning light, high-decibel 100W alarm siren, LED search working lamp & internal compartment lighting |

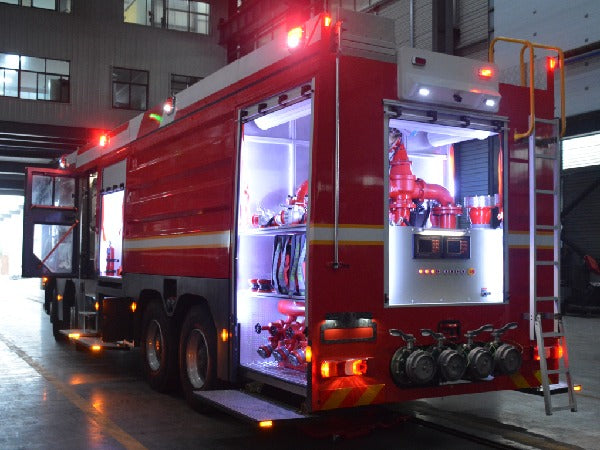

| Compartment Structure | Full aluminum alloy equipment compartments with lockable doors, independent pump room |
| Safety Protection Devices | Emergency stop device, pump overload protection, pressure relief safety valve, anti-freeze device |
| Rescue Hand Tools | Complete fire rescue hand tools, fire axe, crowbar, fire spade, 6m fire ladder |
| Pump Control System | In-cab + Pump Room Dual Control System, water circulation cooling system for pump operation |
| Pump System Accessories | Water filter, check valve, high-precision pressure gauge & flow meter |
| 7. CERTIFICATION & AFTER-SALES TERMS | |
| Main Certificates | CE, ISO9001, CCC, Vehicle Official Road Announcement Certificate |
| Warranty Period | 12 months or 20,000 km from delivery date (whichever comes first) |
| Standard Production Lead Time | 20–25 working days |
| Standard Loading Port | Shanghai Port / Wuhan Port, China |
| Optional Upgrade Items | Imported fire pump, wireless remote monitor control, fully automatic foam mixing system, thermal imaging camera |
