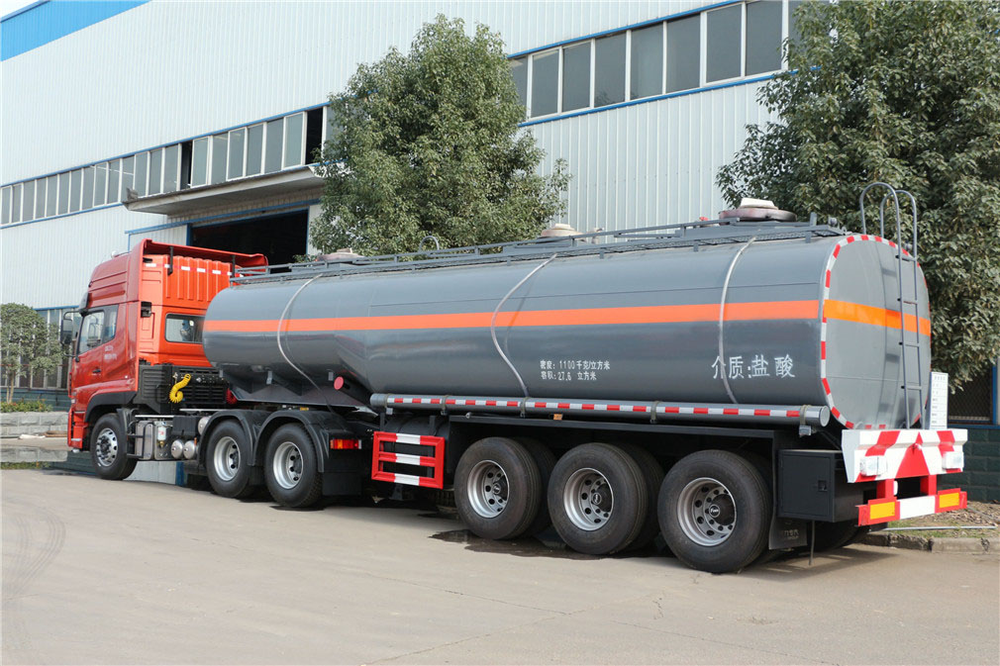

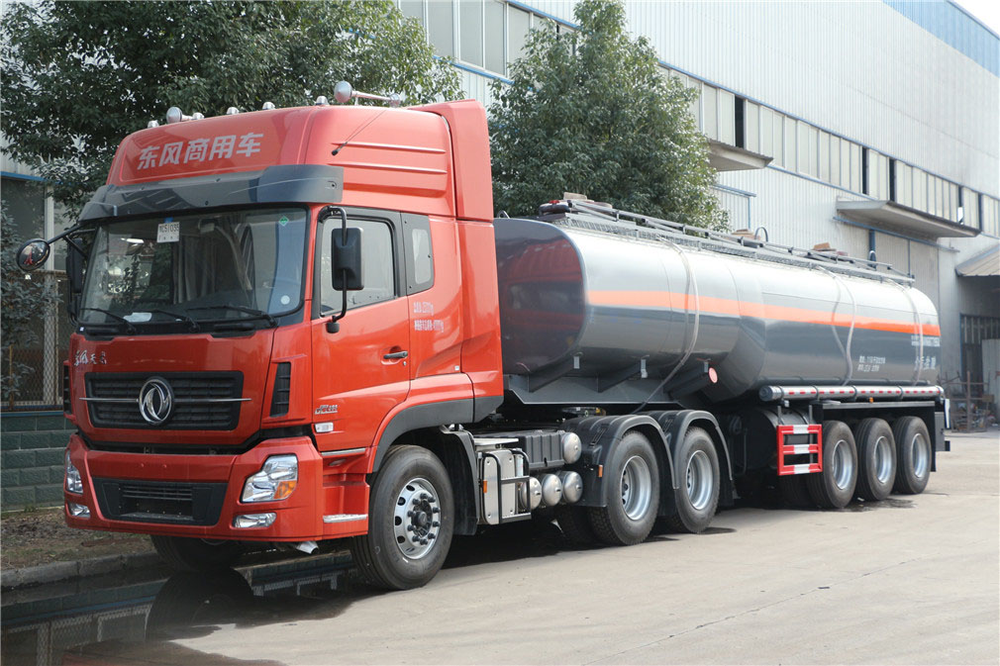

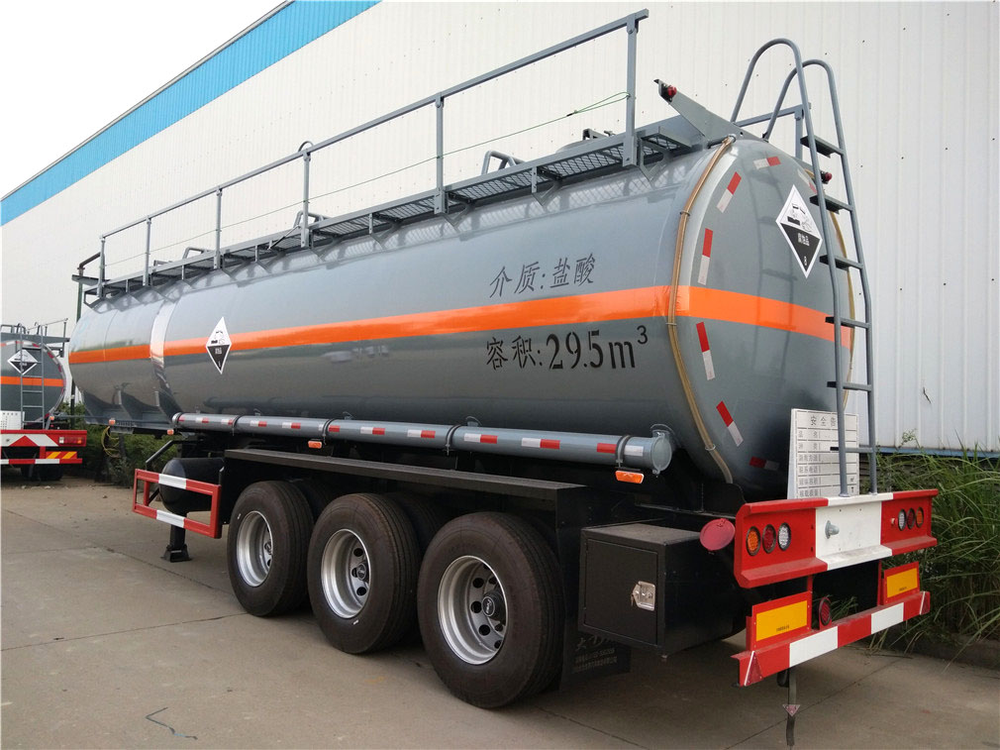

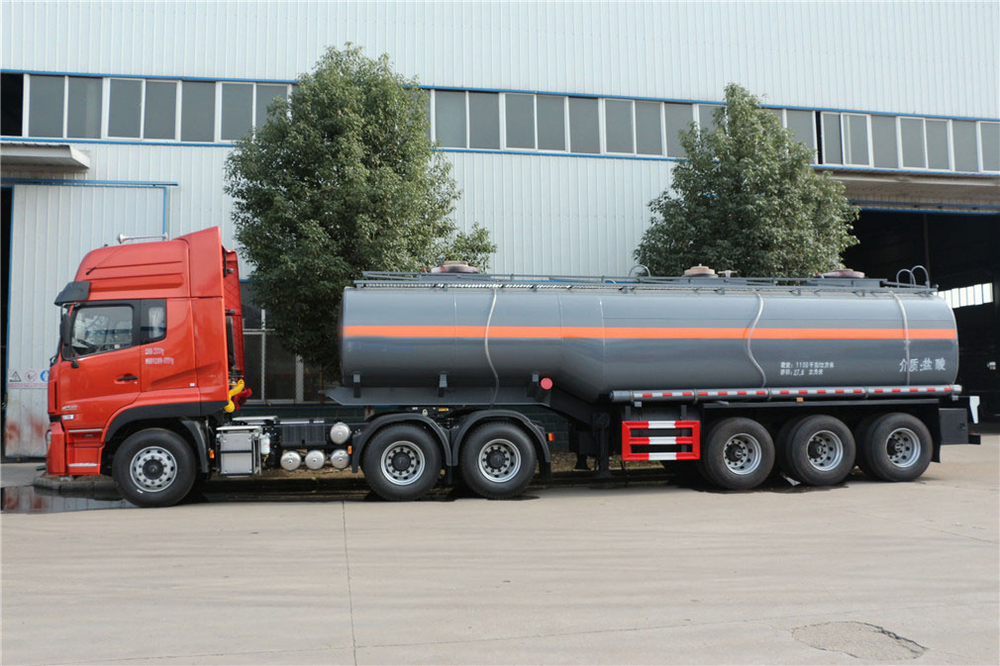

Model CLW9401GFW Tank Semi-Trailer for Corrosive Goods Transportation
| Category | Item | Specification |
|---|---|---|
| Basic Information | Vehicle Model | CLW9401GFW |
| Announcement Batch | 292 | |
| Overall Dimensions (mm) | 10000×2500×3500 | |
| Tank Effective Volume (m³) | 27.6 | |
| Weight Parameters | Gross Vehicle Weight (kg) | 40000 |
| Rated Payload (kg) | 29000 | |
| Curb Weight (kg) | 11000 | |
| Passenger & Axle Load | Front Row Passengers | N/A |
| Axle Load (kg) | - / 24000 (Triple Axle Group) | |
| Tax & Performance Index | Tax Exemption | No |
| Maximum Speed (km/h) | N/A | |
| Fuel Vehicle | No | |
| Fuel Consumption (L/100Km) | N/A | |
| Environmental Certification | No | |
| Fuel & Emission Standard | Fuel Type | N/A |
| Emission Standard | N/A |
| Category | Item | Specification |
|---|---|---|
| Axle & Track Parameters | Number of Axles | 3 |
| Front Wheel Track (mm) | N/A | |
| Wheelbase (mm) | 4600+1320+1320 | |
| Rear Wheel Track (mm) | 1840/1840/1840 | |
| Tire Configuration | Number of Tires | 12 pcs |
| Tire Specification | 11.00R20 12PR, 12R22.5 12PR | |
| Angle & Overhang Parameters | Approach / Departure Angle (°) | N/A / 18 |
| Front Overhang / Rear Overhang (mm) | N/A / 1340 |
