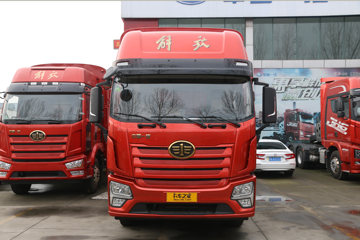

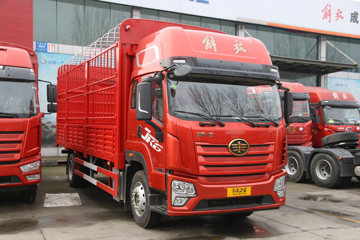

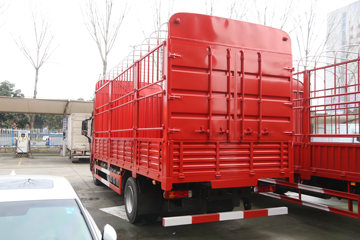

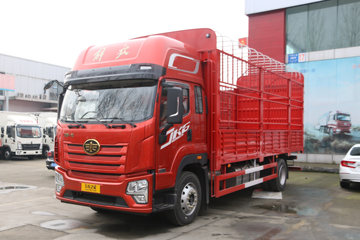

Qingdao Jiefang JK6 Medium Truck, 260 HP, 4×2, 6.75-meter Stake Body Cargo Truck
| Category | Item | Specification |
|---|---|---|
| Basic Vehicle Information | Announcement Model | CA5180CCYP28K1L4E6 |
| Vehicle Type | Stake Cargo Truck | |
| Drive Type | 4×2 | |
| Wheelbase | 5300mm | |
| Cargo Box Length Class | 6.8m | |
| Overall Length | 9m | |
| Overall Width | 2.55m | |
| Overall Height | 3.995m | |
| Front Track | 1938mm | |
| Rear Track | 1860mm | |
| Curb Weight | 7.88 tons | |
| Rated Payload | 9.925 tons | |
| Gross Vehicle Weight | 18 tons | |
| Maximum Speed | 89km/h | |
| Origin | Qingdao | |
| Tonnage Class | Medium-duty Truck | |
| Required Driving License | A1, A2, B2 | |
| Approach Angle | 20° | |
| Departure Angle | 14° | |
| Front Overhang / Rear Overhang | 1.41m / 2.59m | |
| Energy Type | Diesel | |
| Engine Parameters | Engine Brand | Xichai |
| Engine Model | Xichai CA6DLD-26E6 | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Cylinder Arrangement | Inline | |
| Displacement | 6.6L | |
| Emission Standard | China National VI | |
| Max Output Power | 194kW | |
| Max Horsepower | 260 HP | |
| Max Torque | 1050N·m | |
| Max Torque Speed Range | 1300–1610rpm | |
| Rated Speed | 2300rpm | |
| Engine Structure | Inline 6-cylinder, direct injection, turbocharged & intercooled, electronically controlled common rail, DOC+DPF+HiSCR aftertreatment | |
| Transmission Parameters | Transmission Model | Fast 8JS105TA |
| Transmission Brand | Fast | |
| Shift Mode | Manual | |
| Forward Gears | 8 | |
| Reverse Gears | 2 | |
| Cargo Box Parameters | Cargo Box Type | Stake Body |
| Cargo Box External Length | 6.75m | |
| Cargo Box External Width | 2.45m | |
| Cargo Box External Height | 0.6m | |
| Cargo Box Internal Width | 2.45m | |
| Cab Parameters | Cab Tilt Mode | Electric Tilt |
| Rated Passengers | 3 persons | |
| Seat Layout | Extended Half Row Cab | |
| Fuel Tank | Fuel Tank Material | Aluminum Alloy |
| Fuel Tank Capacity | 400L | |
| Chassis Parameters | Front Axle Allowable Load | 6500kg |
| Rear Axle Type | 378 Cast Axle | |
| Rear Axle Allowable Load | 11500kg | |
| Rear Axle Gear Ratio | 4.111 | |
| Suspension Leaf Spring Configuration | 7/7+3 pieces | |
| Tire Parameters | Tire Specification | 275/80R22.5 18PR |
| Number of Tires | 6 pcs | |
| Control Configuration | ABS Anti-lock Braking System | Standard Equipped |
| Exterior Configuration | Aluminum Alloy Air Tank | Standard Equipped |
