What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

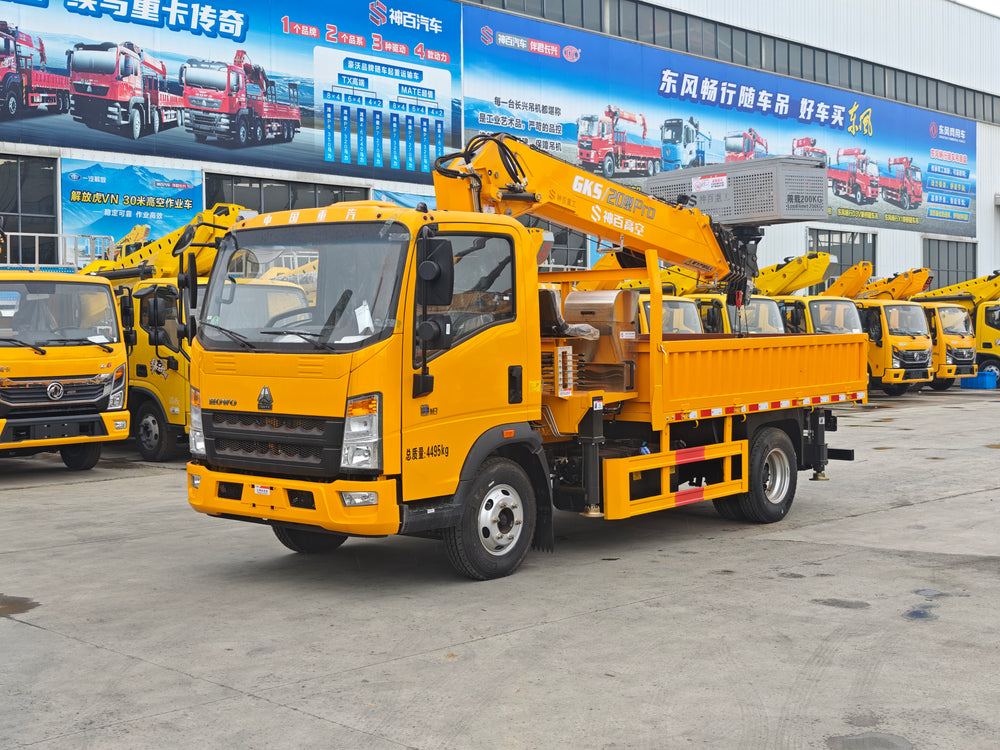

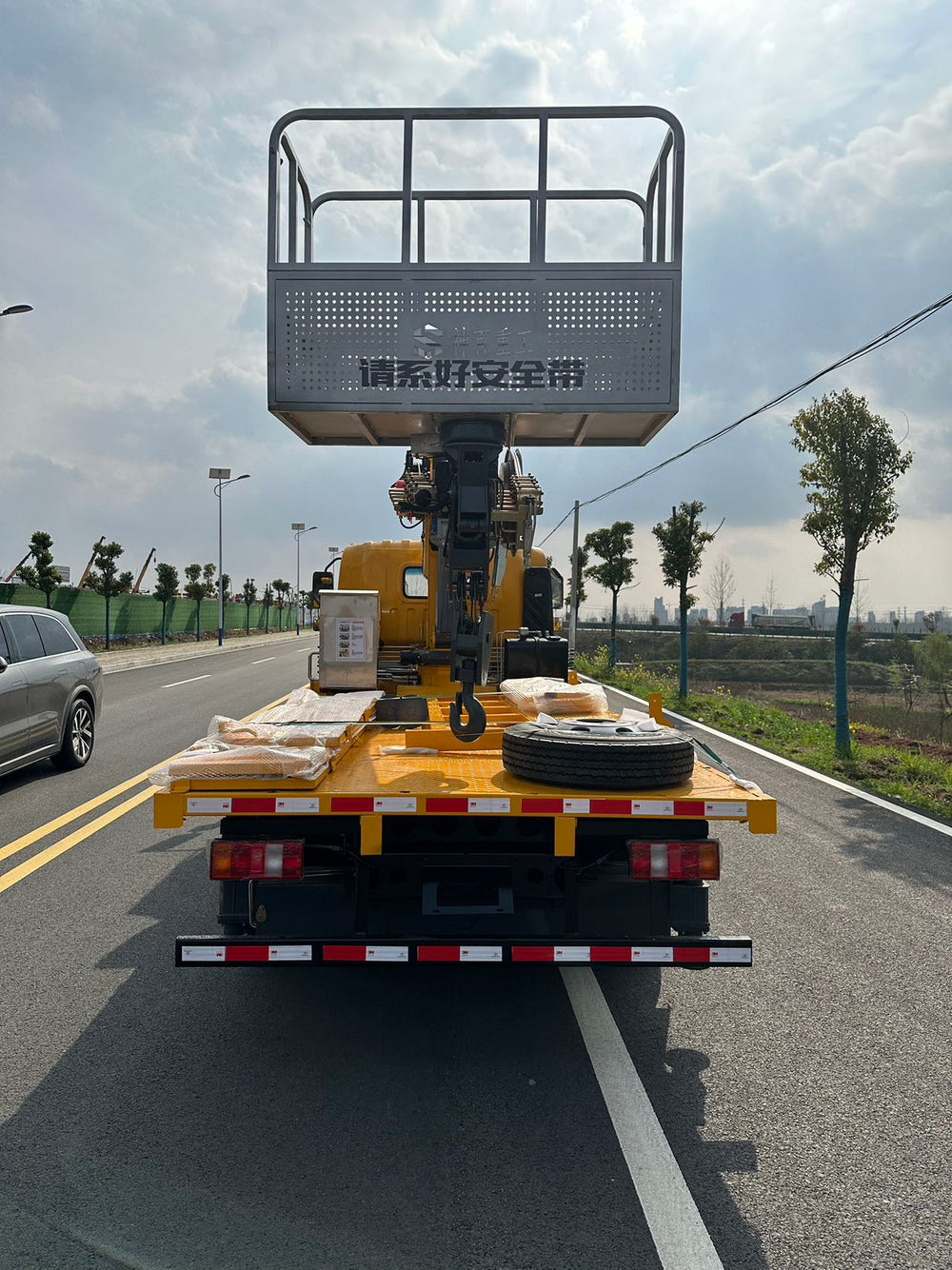

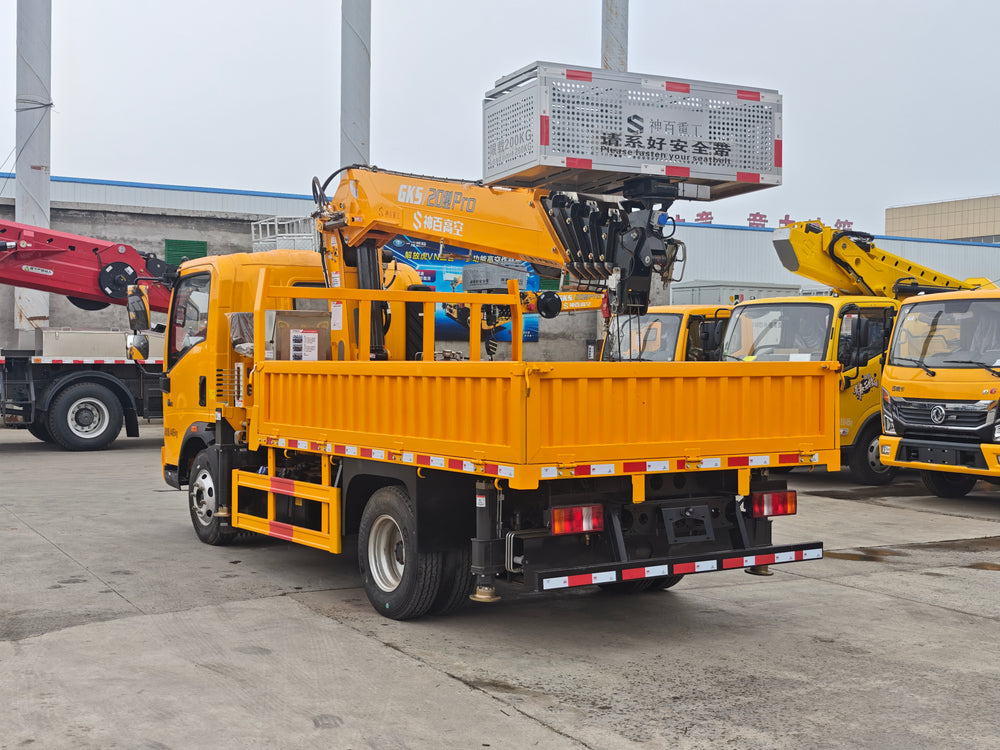

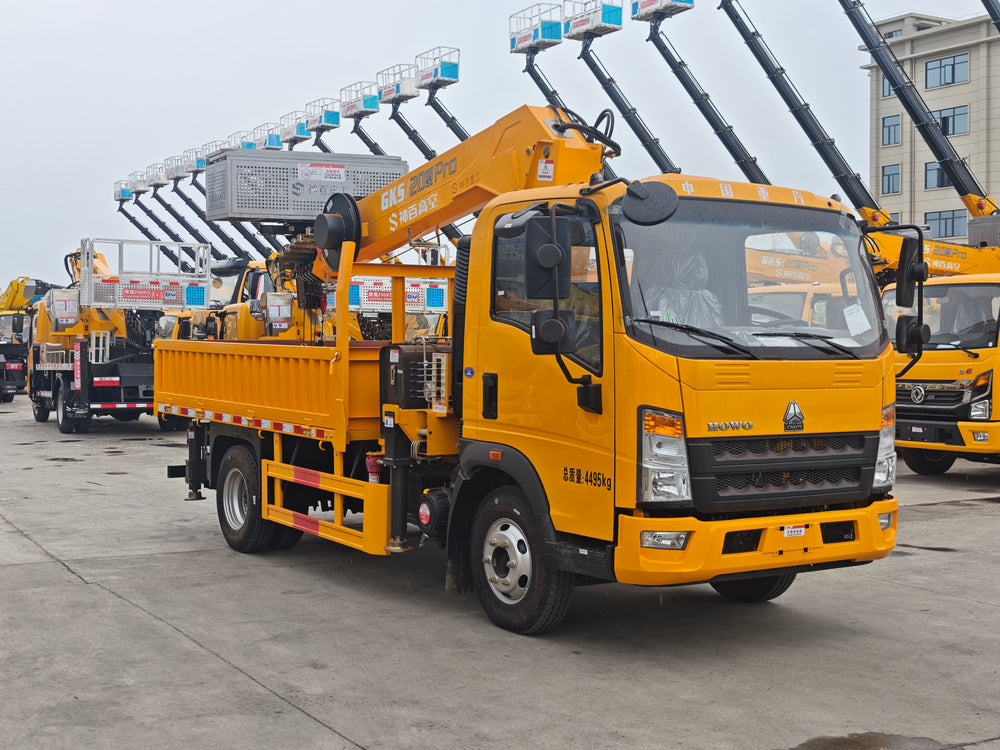

Sinotruk Howo 20m 3-in-1 Multifunctional Vehicle

Name: Sinotruk Howo 20m 3-in-1 Multifunctional Vehicle
Brand: Shenbai Truck Mounted Crane
Availability: InStock

1 / 6

Item	Specification
Vehicle Name	Sinotruk Howo 20m 3-in-1 Multifunctional Vehicle (Tax Exempted)
Approval Model	ABC5047JGKZZ6, Available for registration nationwide
Gross Weight	4495kg
Curb Weight	4300kg
Engine Model	Weichai WP2.3NQ160E61, 160HP
Gearbox	Wanliyang 6-speed / 8-speed, 120000km long oil change cycle
Wheelbase	3280mm
Overall Dimension	5998mm2200mm2950mm
Front/Rear Axle	2 Ton / 3.5 Ton
Tire Spec	7.00R16LT 10PR steel wire tire
Brake System	Air brake
Cab Configuration	Air conditioner, electric windows, central control lock
Horizontal Outrigger Span	5150mm / 4500mm
Longitudinal Outrigger Span	3400mm
Upper Equipment Model	GK20
Max Working Height	19.2m
Max Working Radius	12m
Rated Platform Load	200KG
Boom Slewing Angle	360°
Platform Size	1500mm700mm1100mm
Platform Rotation Range	±180°
Boom Structure	6-section boom, 5 sections synchronous telescoping, equipped with spare steel wire rope for safe landing

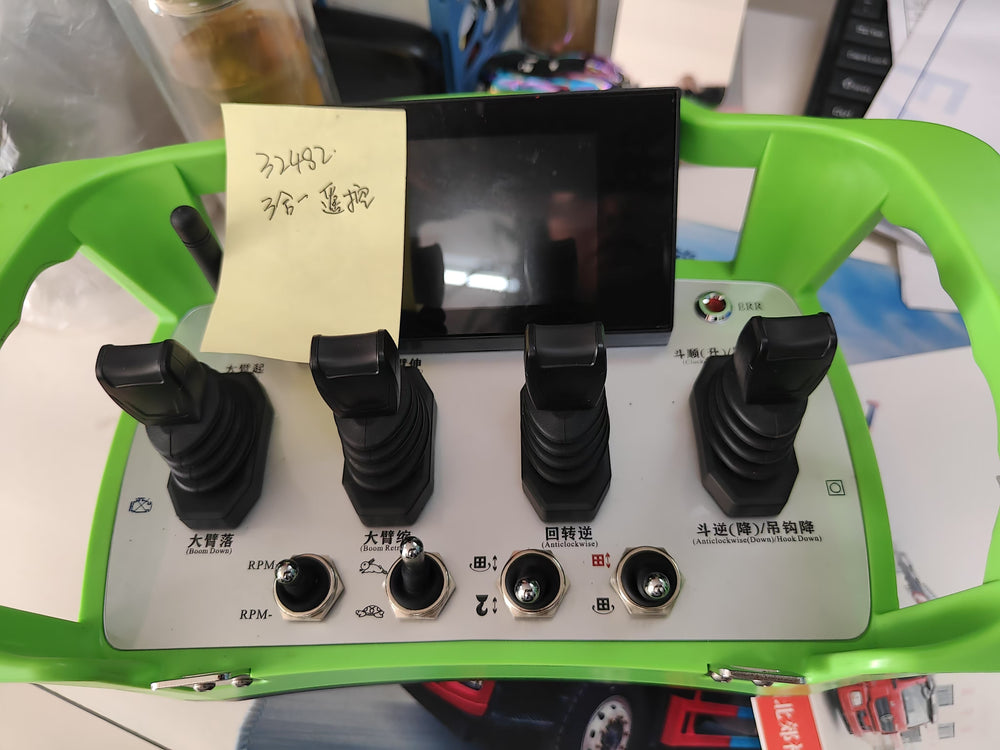

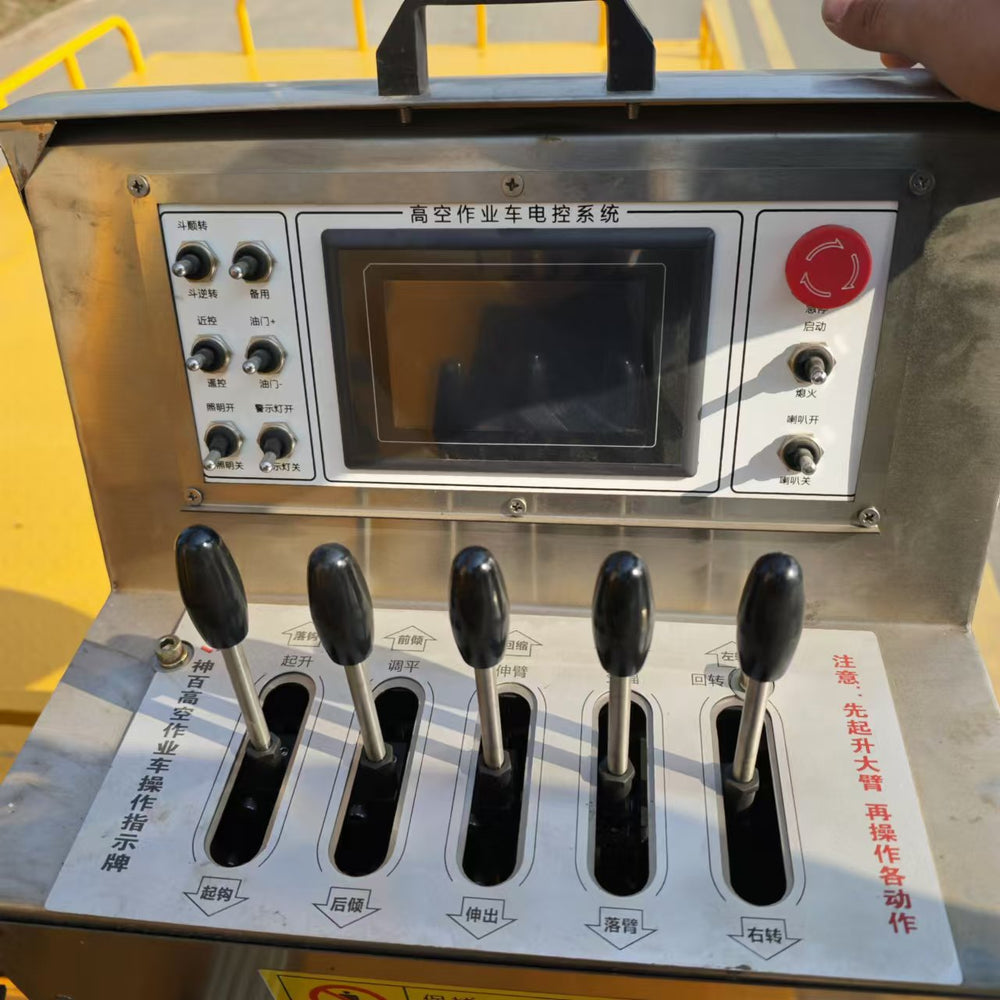

Control System	Domestic famous electric control system, wireless remote control, middle operation with display screen
Hydraulic System	Electro-hydraulic proportional valve, stepless speed regulation
Hydraulic Outrigger	H-type 4 independent adjustable outriggers with full surround design for higher stability
Safety Devices	Upper and lower operation interlock, limit protection, two-way hydraulic balance valve
Max Lifting Capacity	5000kg
Main Winch	5 Ton
Crane Boom	6-section inner rope boom
Max Lifting Height	17m
Slewing Range	360° full rotation
Power Pump	Single pump
Cargo Box Size	3300mm*2200mm
Operation Mode	Middle operation
