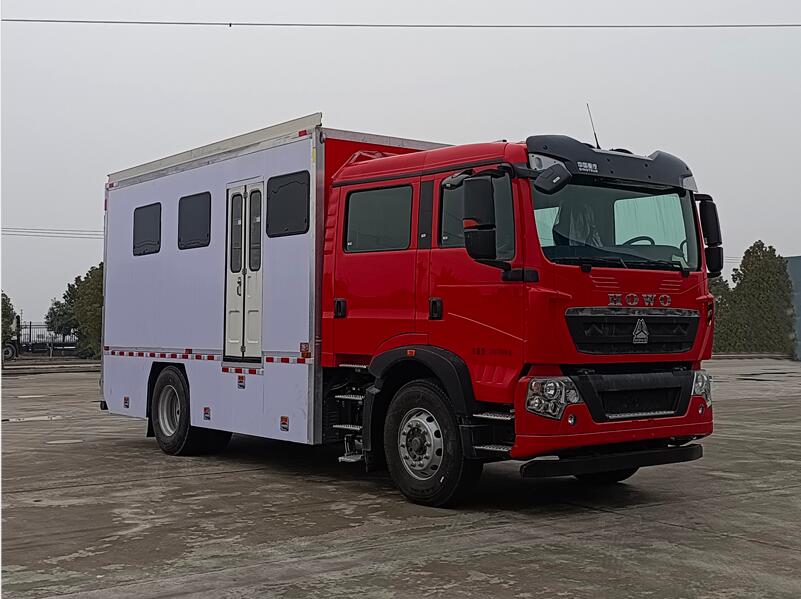

Sinotruk Howo 4×2 Double Cab Special Emergency Equipment Vehicle
| Configuration Item | Specification & Parameter |
|---|---|
| Vehicle Basic Parameters | |
| Vehicle Model | Sinotruk Howo 4×2 Double Cab Special Emergency Equipment Vehicle |
| Rated Load Capacity | ≥ 3000kg |
| Drive Type | 4×2 (Single Rear Axle) |
| Cab Configuration | 6-Seater Double Cab, Front 2 Seats + Rear 4 Seats |
| Overall Dimensions (L×W×H) | ≤ 7800mm × 2450mm × 3300mm |
| Curb Weight | ≤ 8500kg |
| Gross Vehicle Weight | ≤ 12000kg |
| Maximum Speed | ≥ 100km/h |
| Minimum Turning Radius | ≤ 7.5m |
| Gradeability | ≥ 20% |
| Operating Temperature Range | -40℃ ~ +50℃ |
| Chassis System | |
| Chassis Model | Sinotruk Howo ZZ1127K4215F |
| Cab Type | HW76 Double Cab, Air Suspension Driver Seat, Standard Air Conditioning, Power Windows |
| Number of Axles | 2 |
| Wheelbase | 3800mm |
| Tire Specification | 10.00R20 Radial Tires (6+1 Spare) |
| Front Axle Rated Load | ≤ 4500kg |
| Rear Axle Rated Load | ≤ 7500kg |
| Suspension System | Front: Leaf Spring + Shock Absorber; Rear: Leaf Spring + Stabilizer Bar |
| Brake System | Dual Circuit Air Brake, ABS, ASR, Exhaust Brake |
| Steering System | Hydraulic Power Steering |
| Transmission System | 6-Speed Manual Transmission, Overdrive Gear |
| Clutch System | Diaphragm Spring Clutch, Hydraulic Operation |
| Engine & Powertrain System | |
| Engine Brand | Sinotruk MC Series / Weichai (Domestic Top Tier) |
| Engine Type | 4-Stroke, Water-Cooled, Turbocharged, Intercooled Diesel Engine |
| Number of Cylinders | Inline 6 Cylinders |
| Displacement | ≥ 6.87L |
| Rated Power | 155KW ~ 210KW @ 2300rpm |
| Rated Speed | 2300rpm |
| Maximum Torque | ≥ 820N·m @ 1200-1600rpm |
| Fuel System | Electronic Fuel Injection, High Pressure Common Rail |
| Cooling System | Forced Water Cooling, Large Capacity Radiator |
| Air Intake System | Dry Air Filter, Double Stage Filtration |
| Exhaust System | Vertical Exhaust Pipe, Spark Arrestor, Muffler |
| Fuel Tank Capacity | ≥ 200L |
| Fuel Consumption | ≤ 190g/KW·h |
| Emission Standard | China VI / Euro V (Optional) |
| Equipment Compartment & Installation System (Core) | |

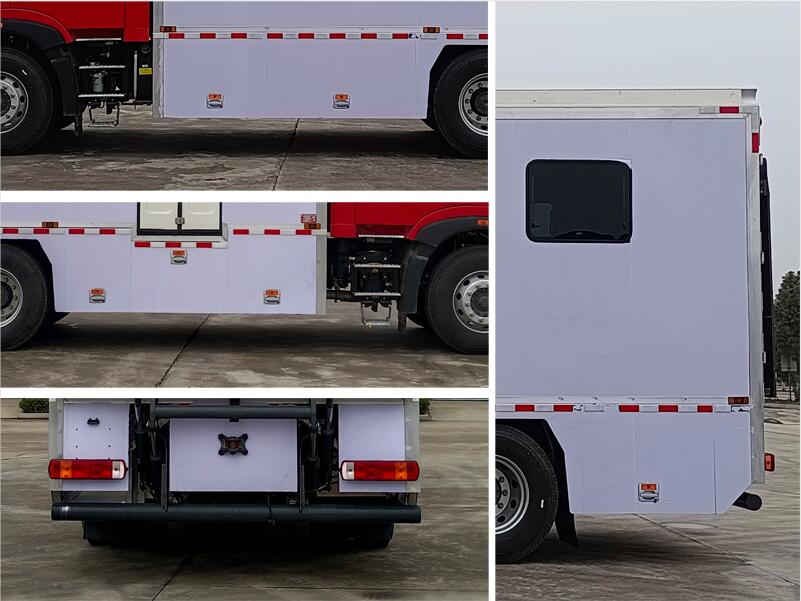

| Compartment Structure | All-Steel Welded Frame, Waterproof, Dustproof, Soundproof, Heat Insulation |
| Compartment Material | Outer: Cold Rolled Steel Plate; Inner: Galvanized Steel Plate; Middle: Fireproof Sound-Absorbing Cotton |

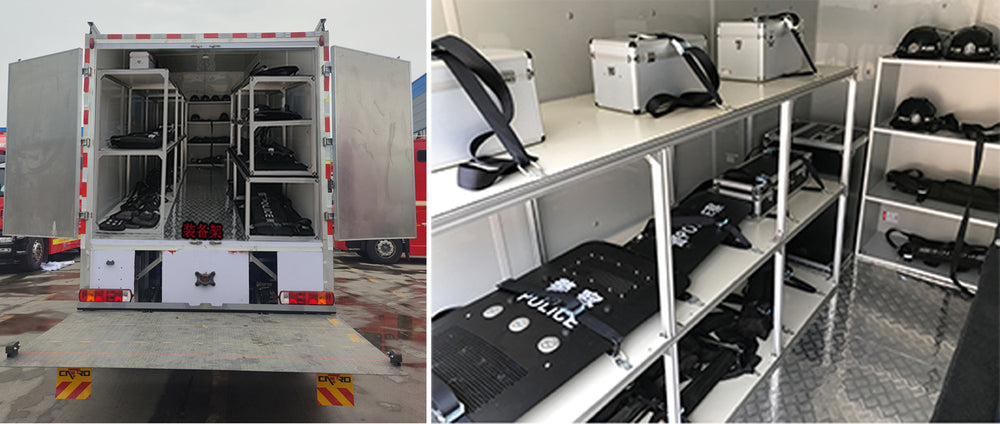

| Internal Layout | Modular Design, Customizable Equipment Installation Zones, Optimized for Double Cab Layout |
| Installation System | High-Strength Aluminum Alloy Guide Rails, Adjustable Equipment Fixing Brackets, Quick Locking Devices |
| Load-Bearing Capacity | Compartment Floor Rated Load ≥ 1000kg/㎡ |
| Compartment Doors | Double Opening Rear Doors, Side Access Doors, Lockable, Anti-Theft Design |
| Ventilation System | Forced Ventilation with Fans, Air Inlet/Outlet with Dust Filters, Ventilation for Heat-Generating Equipment |
| Environmental Control | Independent Compartment Air Conditioning (Optional), Heating System |
| Lighting System | LED Interior Lighting, Work Lights, Emergency Lighting, Flood Lights for Night Operation |
| Cable Management | Cable Trays, Cable Glands, Wiring Ducts, Isolated High/Low Voltage Wiring |
| Lifting Points | Multiple Lifting Lugs for Whole Vehicle Lifting, Equipment Lifting Points |
| Tie-Down Points | Multiple Standard Tie-Down Anchors for Equipment Securement |
| Power Distribution & Control System | |
| Control System Type | Intelligent Digital Integrated Control System |
| Display Unit | 5-inch Color Touch Screen, Real-time Data Display |
| Monitoring Parameters | Battery Voltage, Charging Status, Compartment Temperature, Equipment Status, Fuel Level, Engine Parameters |
| Protection Functions | Overvoltage, Undervoltage, Overload, Short Circuit, Overheating, Low Battery Voltage, Reverse Connection Protection |
| Alarm Functions | Sound & Light Alarm for Abnormal Parameters, Fault Code Display |
| Starting System | 24V DC Electric Starting, Dual Battery Pack (≥ 120Ah) |
| On-board Power Supply | 12V/24V DC Power Output, 220V/380V AC Power Output (Optional) |
| Power Distribution Panel | Copper Busbar Design, Circuit Breakers, Fuses, Output Sockets |
| Emergency Stop | Multiple Emergency Stop Buttons (Cab, Compartment) |
| Remote Monitoring | Support 4G Remote Monitoring, GPS Positioning, Equipment Status Upload (Optional) |
| Safety & Protection System | |
| Fire Protection System | Automatic Fire Detection & Suppression System, Dry Powder Fire Extinguishers, Fire Blankets |
| Grounding System | Reliable Grounding Device, Grounding Cable, Grounding Rod for Static Elimination |
| Anti-Corrosion Protection | Whole Vehicle Sandblasting, Anti-Rust Primer, Anti-Corrosion Paint, Salt Spray Resistant |
| Safety Marking | Standard Safety Warning Signs, Operation Instructions, Reflective Markings, Anti-Slip Stickers |
| Cab Safety | Dual Airbags, 3-Point Seat Belts for All Seats, Crash Protection Structure, Rollover Protection |
| Operation Safety | Interlock Protection for High Power Equipment, Safety Guard for Moving Parts, Emergency Exit Design |
| Lightning Protection | Lightning Protection Device for Electrical System |
| Standard On-board Equipment | |
| Tool Storage | Stainless Steel Tool Cabinets, Drawer-Type Tool Boxes, Lockable |
| Equipment Fixing | Adjustable Equipment Brackets, Ratchet Tie-Down Straps, Quick Locking Devices |
| Auxiliary Tools | Standard Tool Set, Socket Wrenches, Screwdrivers, Pliers, Hammer, etc. |
| Lighting Equipment | Portable Work Lights, Searchlight, Flashlights, Emergency Lights |
| Power Supply Accessories | Power Cables, Extension Cords, Industrial Sockets, Connectors |
| Safety Equipment | Safety Helmets, Safety Vests, Gloves, Goggles, First Aid Kit for 6 Persons |
| Cleaning Equipment | High Pressure Water Gun, Cleaning Brush, Dust Pan, Garbage Bags |
| Optional Configuration | |
| Equipment Modules | Customized Equipment Installation Modules for Fire Rescue, Flood Control, Emergency Repair, Communication, etc. |
| On-board Generator Set | 5KW-30KW Silent Generator, Independent Power Supply System |
| Lighting System | Telescopic Lifting Lighting Tower, Remote Control Searchlight, Scene Lighting System |
| Hydraulic System | On-board Hydraulic Power Station, Hydraulic Tools, Hydraulic Lifting Platform |
| Communication System | Digital Walkie-Talkies, Mobile Repeater, Satellite Phone, Emergency Communication Terminal |
| Compartment Upgrade | Insulated Aluminum Alloy Compartment, Fiberglass Reinforced Plastic (FRP) Compartment, Expandable Compartment |
| Cold Climate Package | Engine Pre-Heating System, Compartment Heating System, Battery Insulation, Anti-Freezing System |
| Hot Climate Package | Enhanced Cooling System, Compartment Ventilation, Sun Protection Coating, Heat Insulation Upgrade |
| Off-Road Package | Off-Road Tires, Reinforced Suspension, Skid Plate, Higher Ground Clearance |
| Video Monitoring System | Interior & Exterior Cameras, DVR, Display, Night Vision Camera, Reversing Radar |
| Automatic Transfer Switch (ATS) | Dual Power Automatic Switching System |
