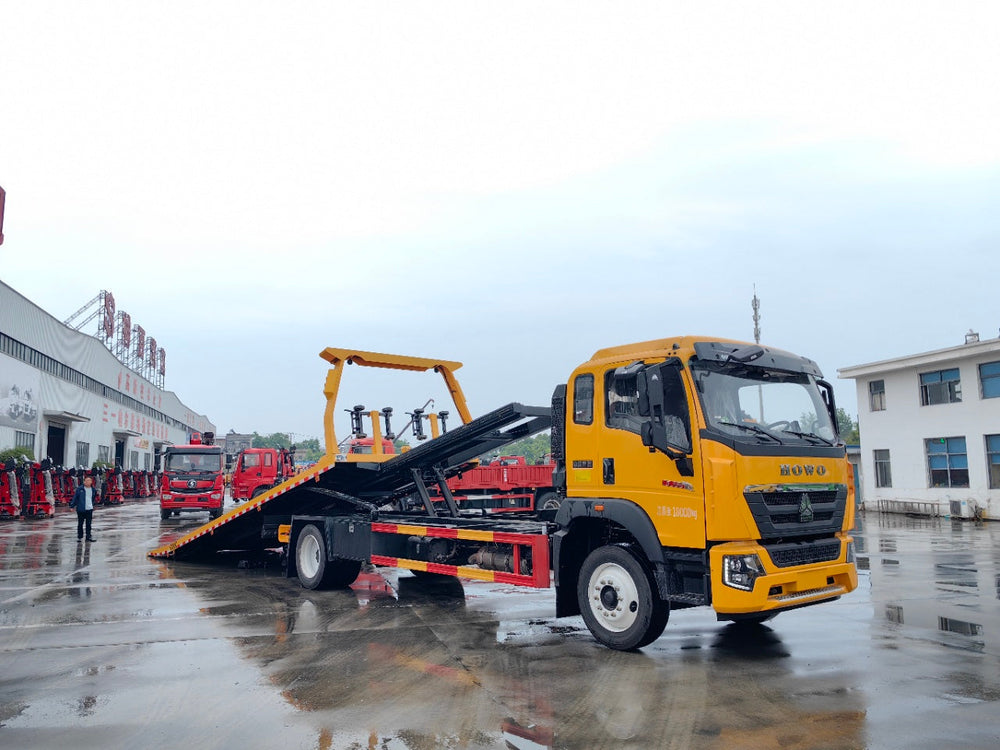

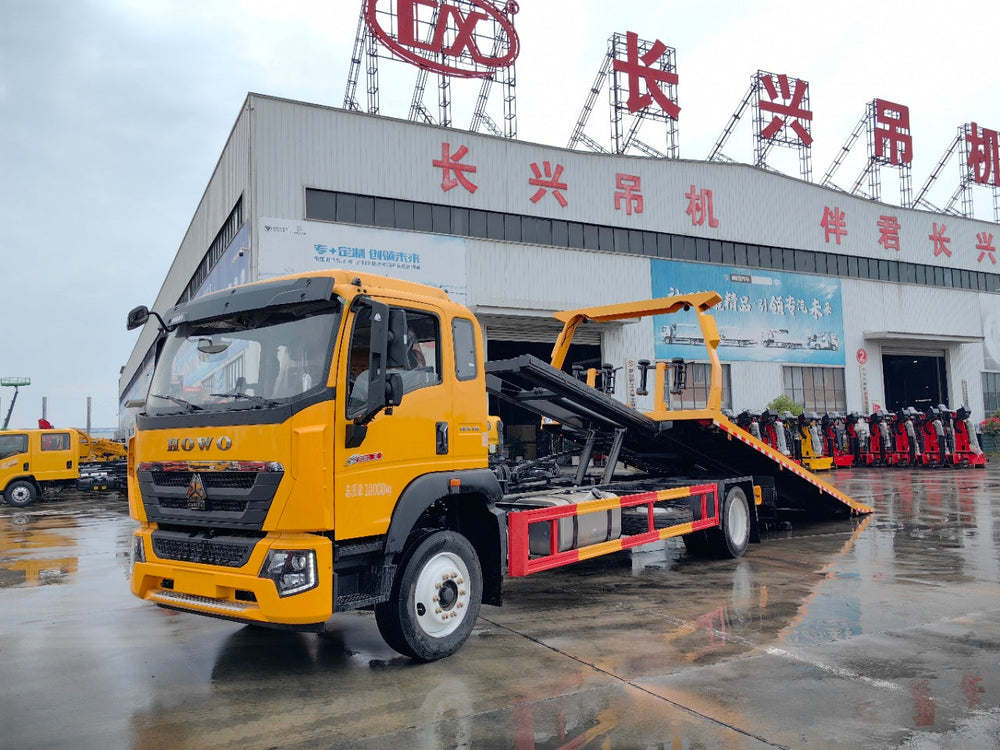

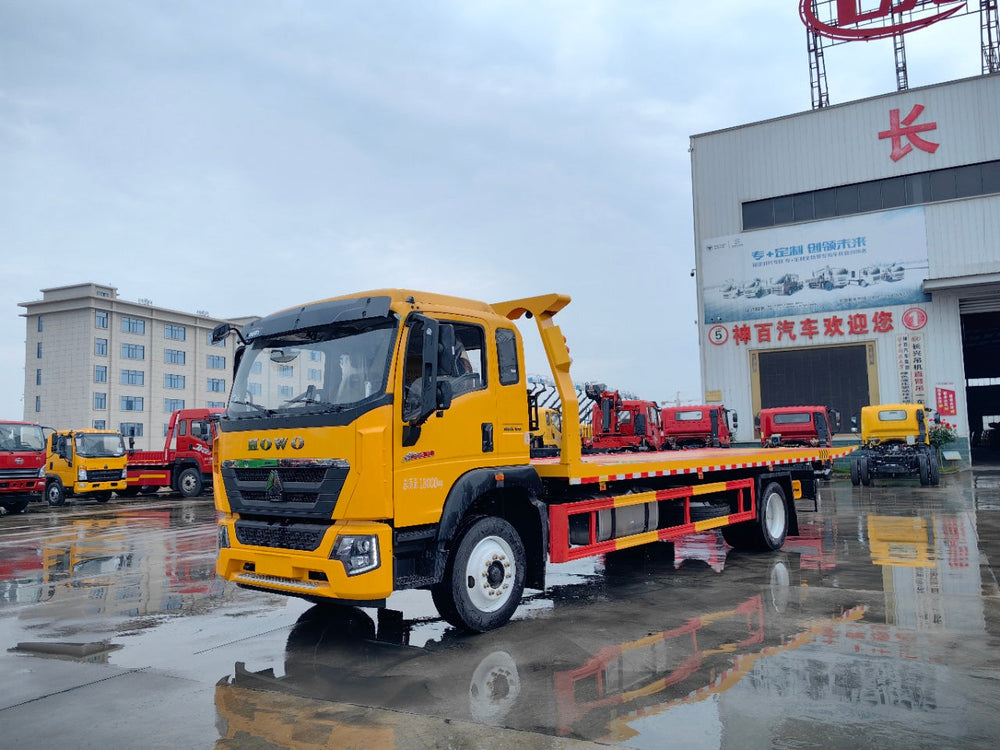

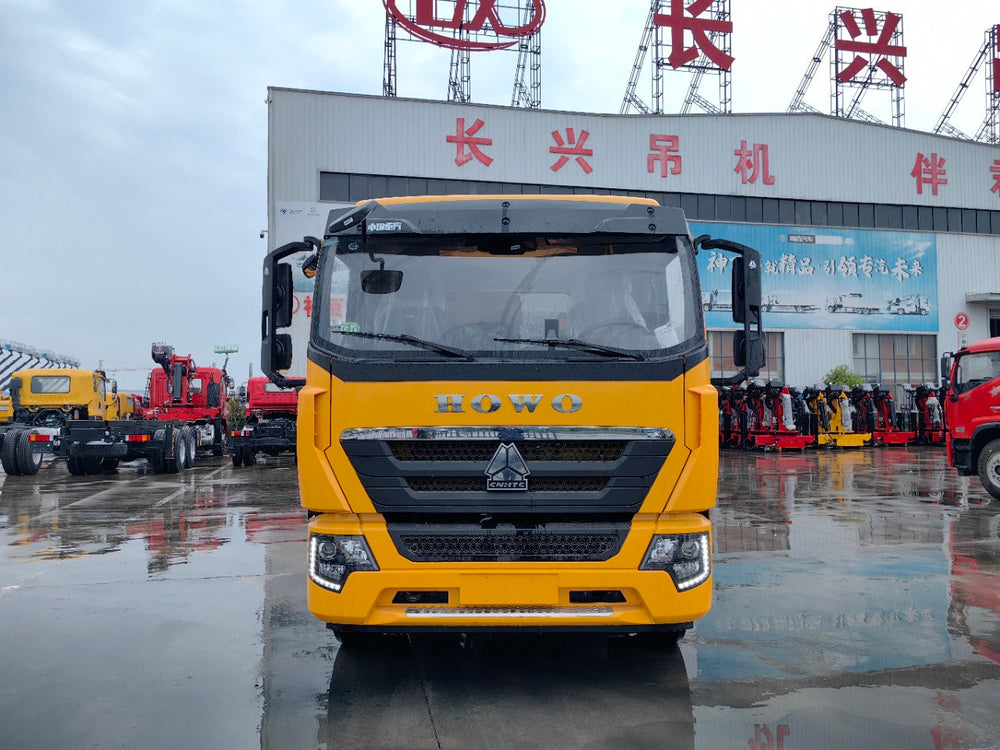

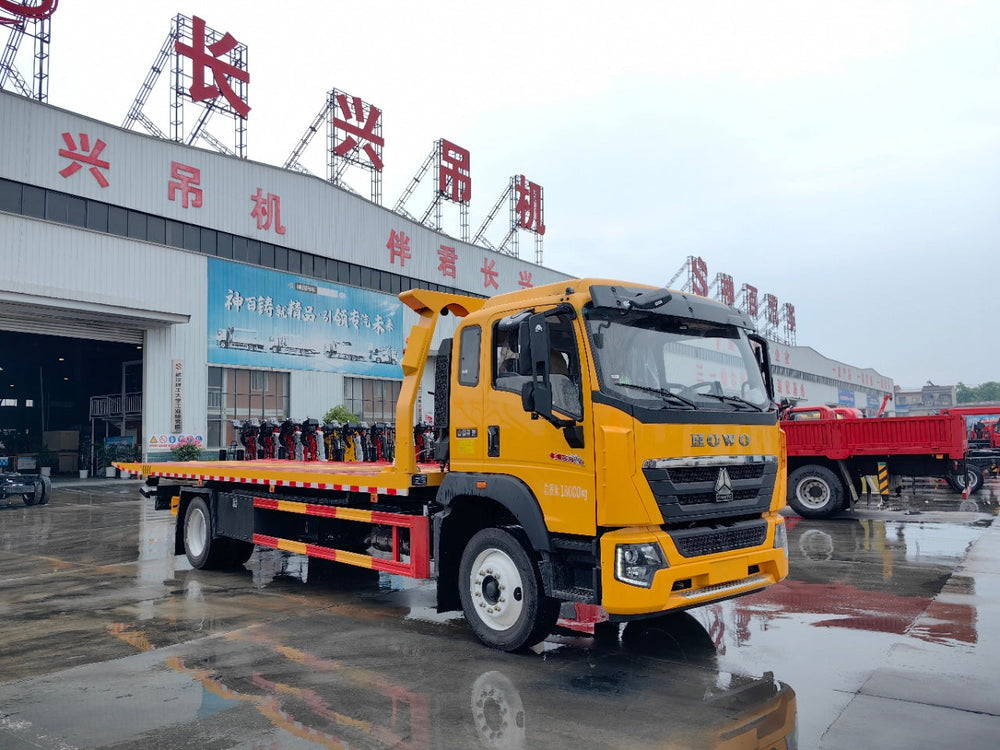

Sinotruk Howo 8.2 meter Wrecker Truck
| I. Basic Vehicle Parameters | |
| Vehicle Type | One-Tow-Two Flatbed Wrecker Truck |
| Vehicle Model | ABC5182TQZ ZZ6 |
| II. Chassis Core Parameters | |
| Cab | New National VI Sinotruk Howo G5X 2250 Wide-body Cab, Four-point Suspension |
| Engine Model | Weichai 240HP Engine |
| Gearbox Model | Howo 8-speed Gearbox |
| Front Axle Specification | 4.5 Ton Front Axle |
| Rear Axle Specification | 10 Ton Rear Axle |
| Frame Specification | 250 Double-layer Girder |
| Wheelbase | 5600mm |
| Tire Specification | 10.00R20 |
| Chassis Standard Configuration | Original Air Conditioner, Airbag Seat, Aluminum Alloy Fuel Tank, LED Daytime Running Lights, Central Lock + Electric Windows + Remote Key, Multi-function Steering Wheel (with Cruise Control), Color Screen Instrument, Electric Control Air Horn, Electric Rearview Mirror with Heating |
| III. Upper Mounted Core Parameters | |
| Upper Mounted Type | 10 Ton One-Tow-Two Type Upper Mounted |
| Upper Mounted Process | Sunken Process (Effectively Reduce the Center of Gravity of the Flatbed) |
| Total Flatbed Length | 8.2 Meters (including 1.2 Meters Tail Board) |
| Flatbed Width | 2.55 Meters |
| Flatbed Base Plate Material | 6MM High-strength Wear-resistant Pattern Steel Plate |
| Frame Specification | 16MM Solid Steel Plate Frame with Cut Holes (Narrow Frame) |
| Under-plate Structure | 60*80 Square Tube Tiled Horizontally, Triangular Inclined Support Encryption, Grid-shaped Encryption Under the Plate |
| Chute Specification | Manganese Steel Double-layer Thickened Chute |
| Hinge Specification | Rear Through-shaft Flip Hinge |
| Winch Specification | 10 Ton Mid-mounted Winch |
| Rear Tow Arm Specification | 10 Ton Three-section Rear Tow Arm (Mounted on the Main Girder) |
| External Air Pipe | One Pair |
| Multi-way Valve Brand | Italian Imported Haide Multi-way Valve |
| Flatbed Telescopic Oil Cylinder Specification | 130 (Haide Ruiwo Oil Cylinder) |
| Lifting Oil Cylinder Specification | 130 (Haide Ruiwo Oil Cylinder) |
| IV. On-Board Accessories Configuration | |
| Accessory 1 | One Set of Gantry Side Lights |
| Accessory 2 | Two Rear Working Lights |
| Accessory 3 | One Tool Box |
| Accessory 4 | One Pair of Triangular Tire Blocking Plates |
| Accessory 5 | One Pair of Auxiliary Trolleys |
| Accessory 6 | One Pair of Tow Fork Bases |
| Accessory 7 | One Pair Each of High/Medium/Low Tow Forks |
| Accessory 8 | Six Binding Belts |
| Accessory 9 | One Pair of Square Tire Holding Cylinders |
| Accessory 10 | One Pair of Seven-shaped Forks |
