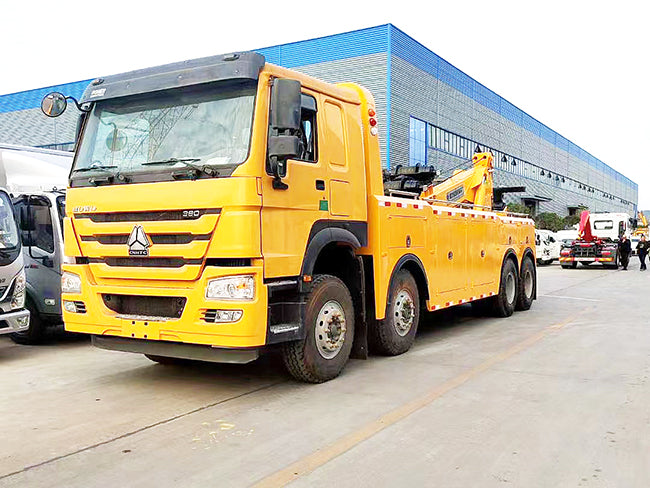

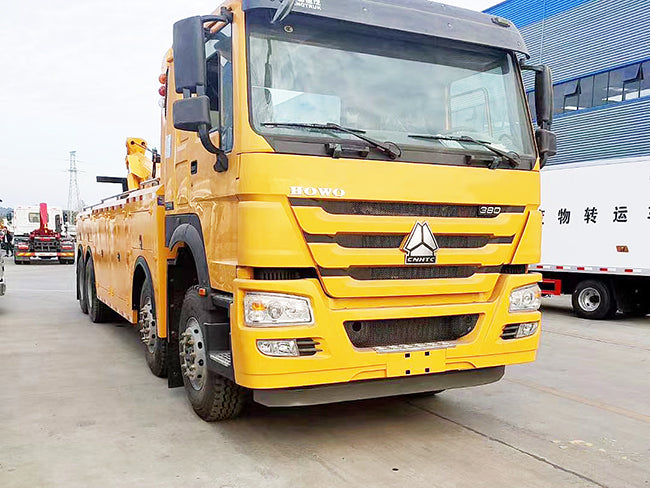

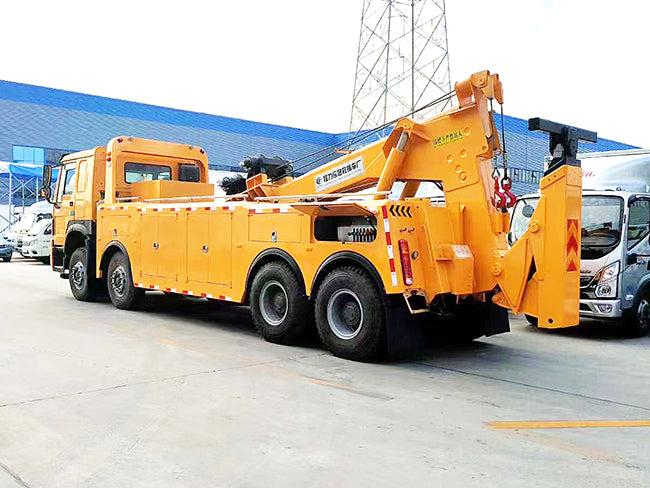

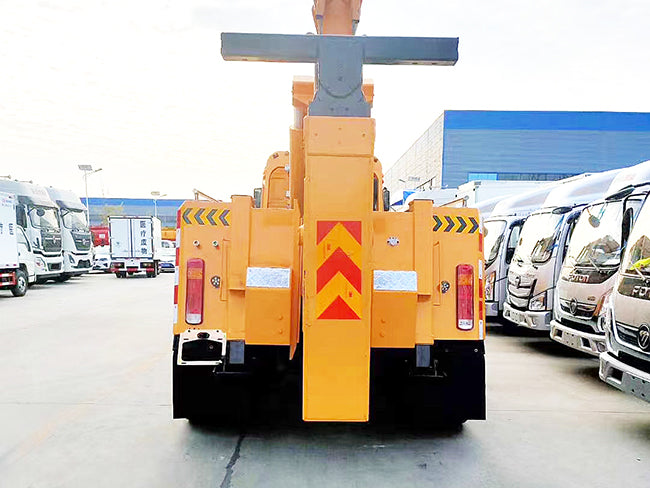

SINOTRUK HOWO 8×4 Integrated Tow & Crane Wrecker Truck
| Configuration Item | Parameter Value |
|---|---|
| 1. Basic Vehicle Parameters | |
| Product Name | SINOTRUK HOWO 8x4 Wrecker Tow Truck with Integrated Crane |
| Gross Vehicle Weight | 44000kg |
| Curb Weight | 23210kg |
| Overall Dimensions | 11650×2540×3210mm |
| Wheelbase | 1950+4625+1350mm |
| Maximum Speed | 101km/h |
| Maximum Gradeability | 35% |
| Emission Standard | China VI |
| Cab Capacity | 2/3 Persons |
| Approach Angle/Departure Angle | 14°/18° |
| Front Overhang/Rear Overhang | 1500/2180mm |
| 2. Chassis Configuration | |
| Chassis Model | ZZ1317N4667E1B |
| Engine Model | WP10H400E62 / MC11.44-60 |
| Engine Type | Inline 6-cylinder, 4-stroke, Water-cooled, Turbocharged Diesel Engine |
| Maximum Horsepower | 400HP / 440HP |
| Maximum Torque | 1900N·m / 2100N·m |
| Gearbox Model | HW19710 10-speed Manual Gearbox / 12JSDX220T-B 12-speed Manual Gearbox |
| Power Take-off | HW70 Flange-type PTO |
| Front Axle | VPD75D Disc Front Axle, 9-ton Grade |
| Rear Axle | MAT16ZG Self-adjusting Arm Twin Rear Axles, 16-ton Grade |
| Axle Ratio | 4.42 / 4.8 |
| Frame | Double-layer Frame (8+8/300mm) |
| Suspension System | Front and Rear Reinforced Multi-leaf Springs (11/11/12) |
| Tire Specification | 12.00R20 Steel Radial Tires / 315/80R22.5 Tubeless Tires |
| Braking System | Air-over-hydraulic Brake, ABS (4S/4M) |
| Steering System | 8118 Steering Gear, Hydraulic Power Steering |
| Fuel Tank | 400L Aluminum Alloy Fuel Tank |
| Cab | HOWO V7/X7 Wide-body Cab, Main Airbag + Auxiliary Simple Seat, Factory Air Conditioning, Electric Windows, Central Locking |
| 3. Superstructure Special Configuration | |
| Superstructure Model | 25T20D Integrated Wrecker and Crane Superstructure |
| Crane Boom | 2-section Hexagonal High-strength Steel Plate Boom, Full Rotation, Planetary Reduction |
| Maximum Lifting Capacity | 20 Tons |
| Maximum Working Radius of Crane Boom | 14.5m |
| Tow Arm | 3-section Telescopic and Liftable Tow Arm |
| In-situ Lifting Capacity | 20 Tons |
| Maximum Lifting Capacity at Full Extension | 7.31 Tons |
| Maximum Towing Capacity | 30 Tons |
| Maximum Traction Capacity of Drawbar | 60 Tons |
| Effective Length of Tow Arm | 1460mm-2950mm |
| Telescopic Stroke of Tow Arm | 1850mm |
| Hydraulic System | Imported Hydraulic System, Fully Imported Seals, Bilateral Linkage Operation Device, Wireless Remote Control Operation |
| Hydraulic Winch | 2 Sets of 10-ton/15-ton Hydraulic Winches, 45m/55m Steel Wire Rope, Diameter 18mm, with 20-ton Hooks |
| Outriggers | 4 Double-cavity Hydraulic Outriggers, Front Outriggers are Foldable |
| Compartment | Split-type Compartment, Welded with High-strength Steel Plate |
| Counterweight | 1.8-ton Counterweight Installed on Front Bumper |
| Standard Configuration | 1 Set of U-type Tire Holding Device, 5 Pairs of Tow Forks, 1 Pair of Tow Fork Seats, 2 Chain Hooks, 1 Hand Wash Box, 1 Set of Auxiliary Light Assembly, 1 Set of Auxiliary Brake Air Pipe Assembly, 1 LED Long-row Engineering Warning Light, Reversing Image, 1 Set of On-board Tools |
| 4. Performance Parameters | |
| Maximum Lifting Height | 13.1m |
| Slewing Angle of Crane Boom | 360° Full Rotation |
| Upward/Downward Inclination Angle of Tow Arm | 7°/-7° |
| Folding Angle of Tow Arm | -7°~93° |
| Maximum Ground Clearance of Upper Surface of Fully Retracted Tow Arm | 900mm |
| Minimum Limiting Speed of Steel Wire Rope | 5m/min |
| Working Pressure of Hydraulic System | 16MPa |
