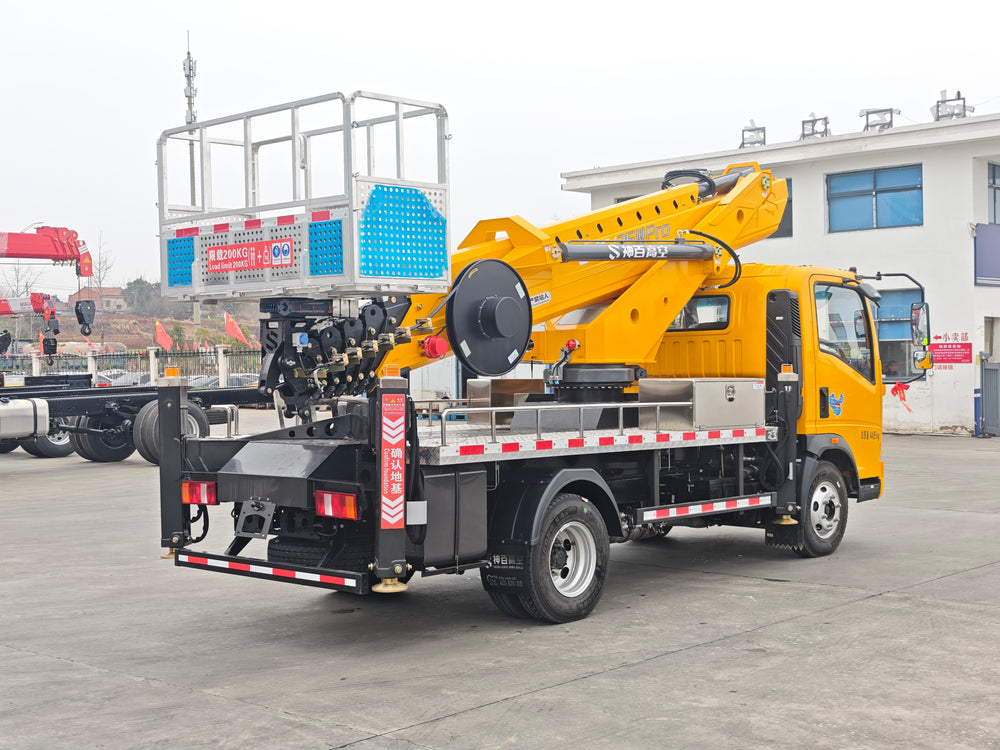

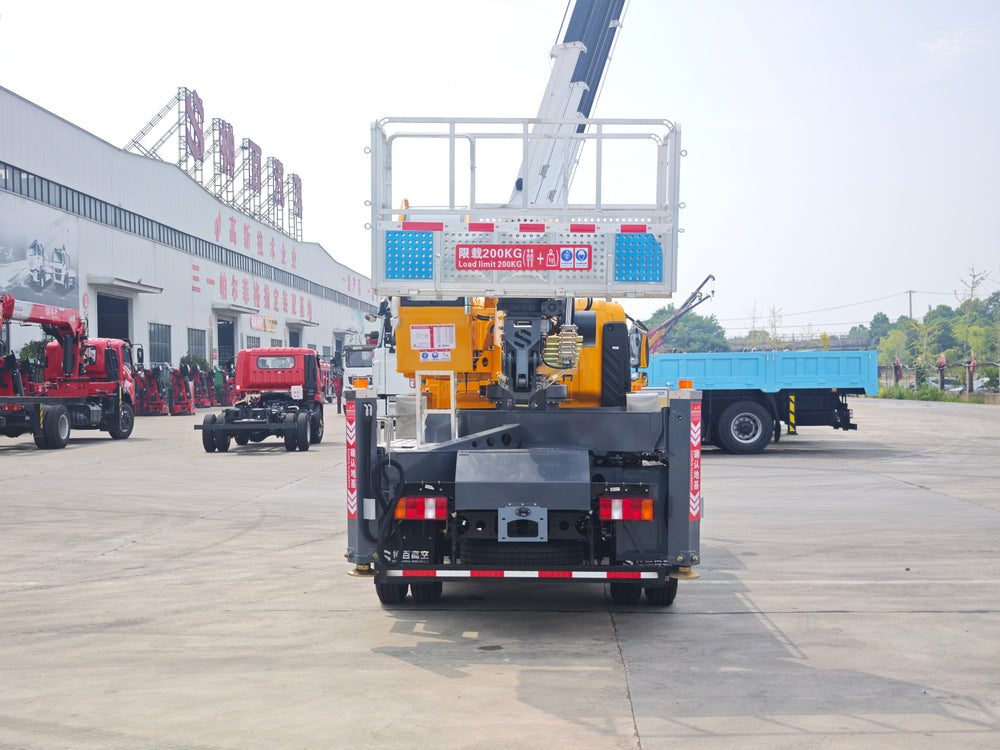

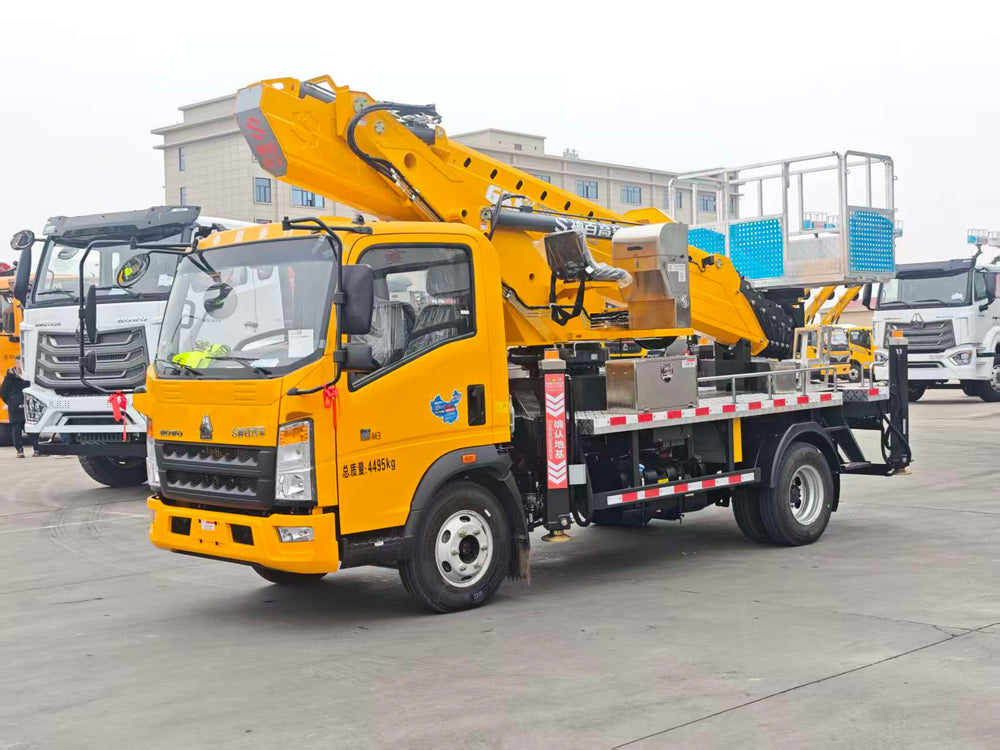

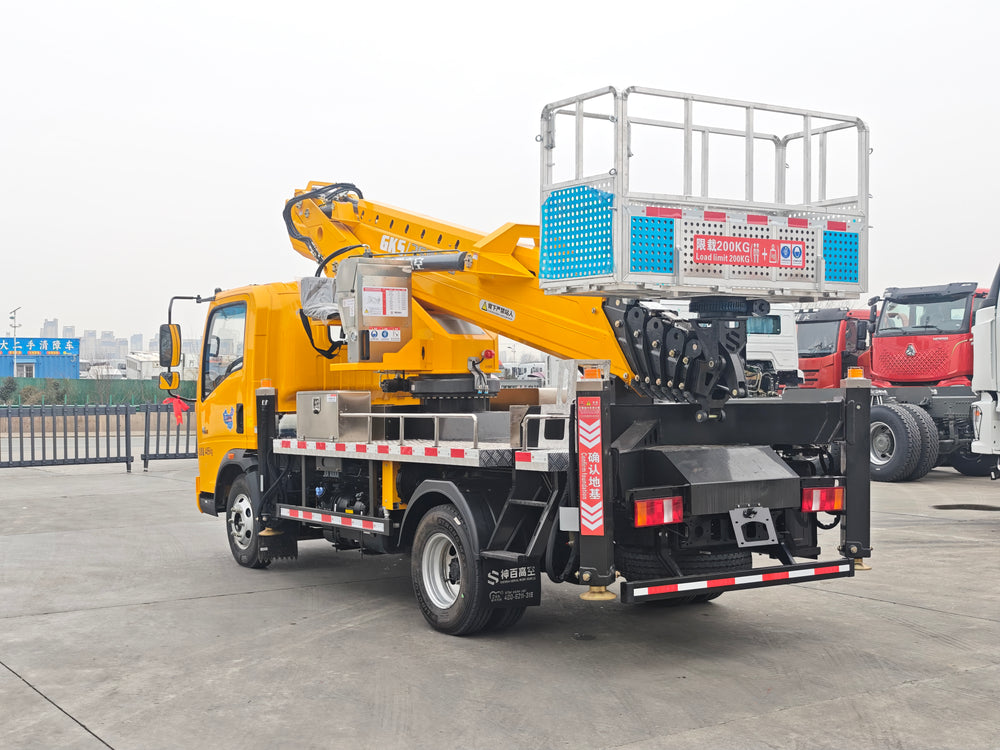

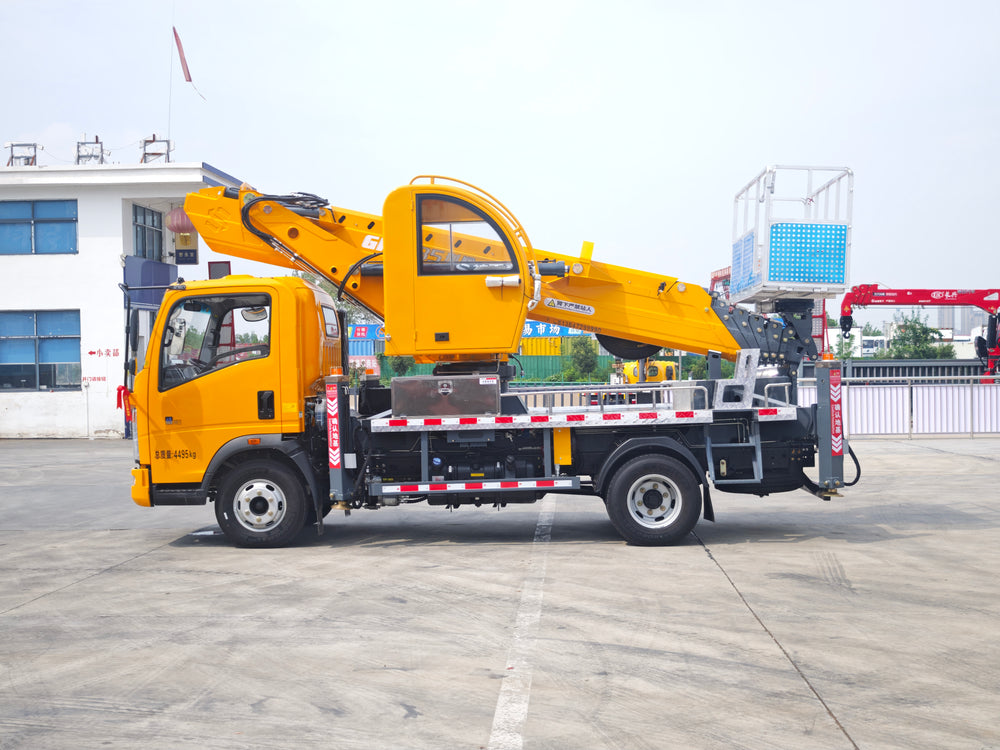

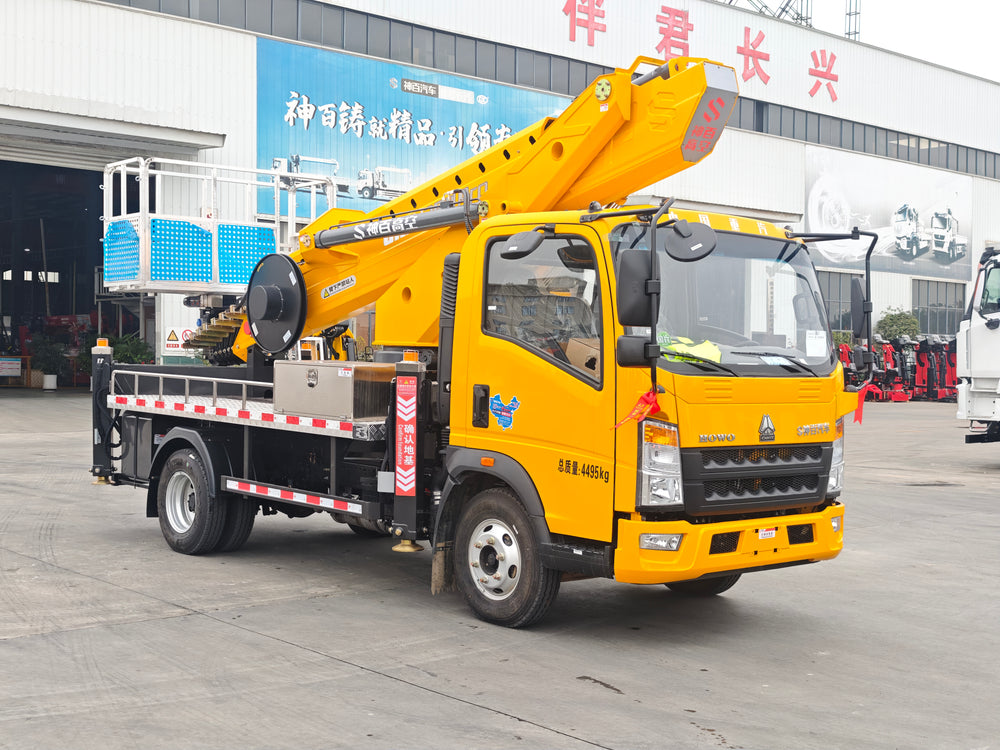

SINOTRUK Howo GKS35 Pro Aerial Work Vehicle
| Item | Specification |
|---|---|
| Vehicle Name | SINOTRUK Howo GKS35 Pro Aerial Work Vehicle |
| Core Advantage | 7-section boom blue plate aerial work vehicle, max working height 33.8m, Howo Wealth Creation Edition |
| Brand Strength | 1. Authentic SINOTRUK high-end brand, 2-year extended warranty
|
| Approval Model | ABC5047JGKZZ6 Aerial Work Vehicle |
| Exclusive Feature | Pioneer 7-section boom design, 33.8m working height with blue license plate |
| Technical Highlights | 1. Adopt 960 high-strength steel plate
|

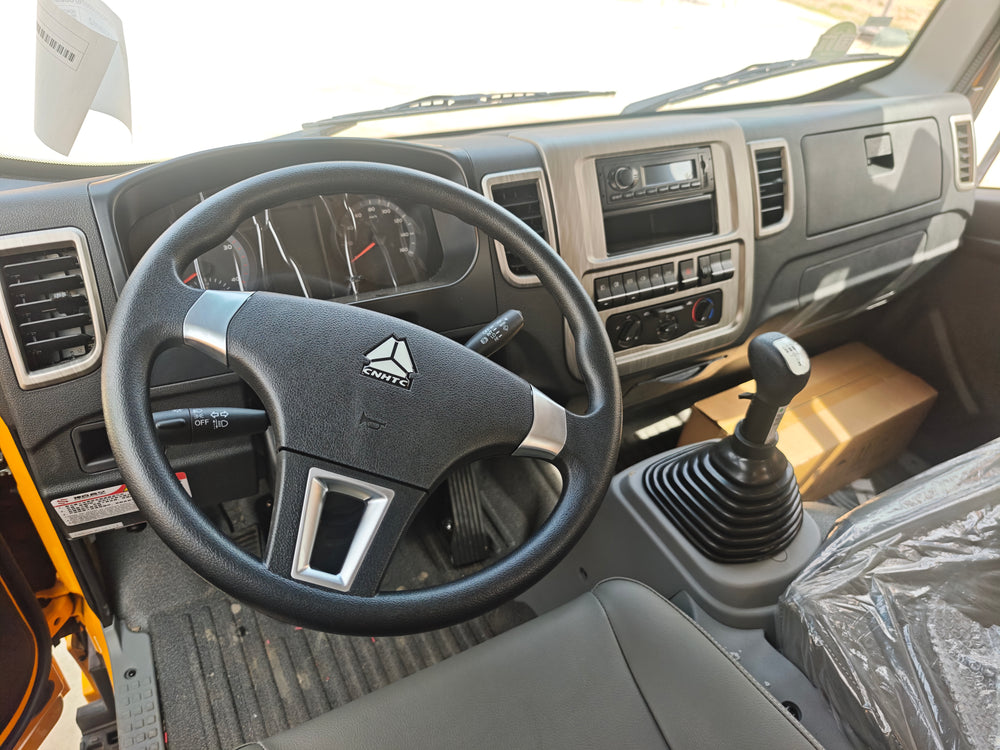

| Chassis Cab | Howo Wealth Creation Edition Cab |
| Gross Vehicle Mass | 4495KG |
| Curb Weight | 4300KG |
| Engine Model | Weichai WP25Q160E62 |
| Transmission | Wanliyang 6-speed / 8-speed gearbox, 120000km long oil change cycle |
| Wheelbase | 3280mm |
| Overall Dimension | 5995mm2200mm3150mm |
| Tire Specification | 700R16 |
| Brake System | Air brake |

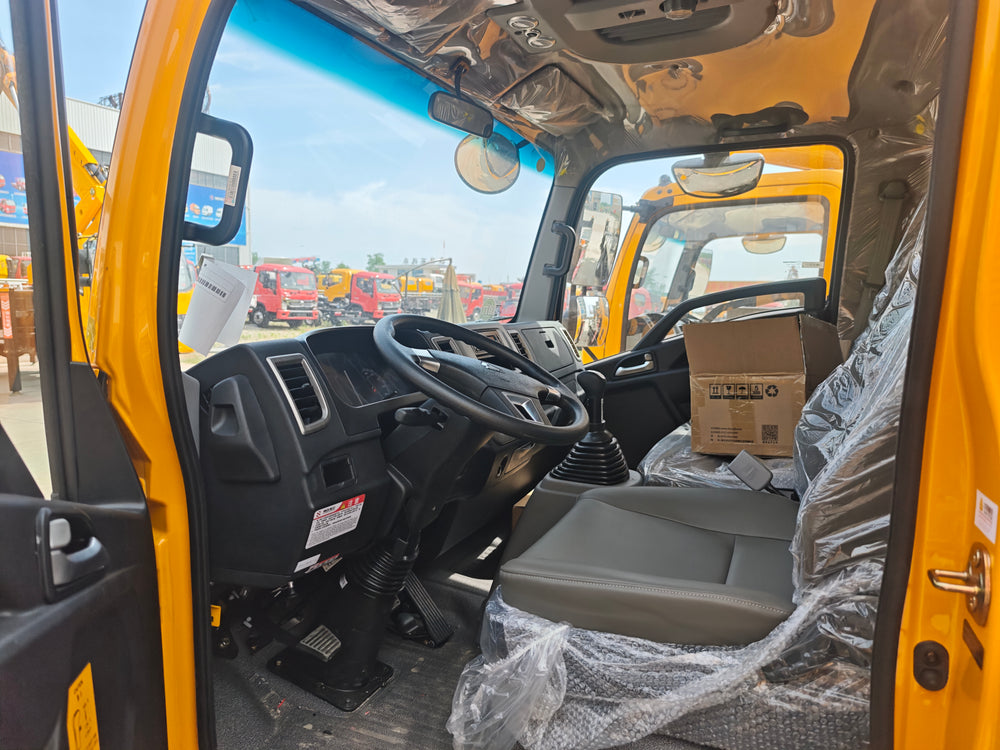

| Standard Cab Fittings | Electric windows, air conditioner, central control lock |
| Superstructure Model | GKS35 Pro |

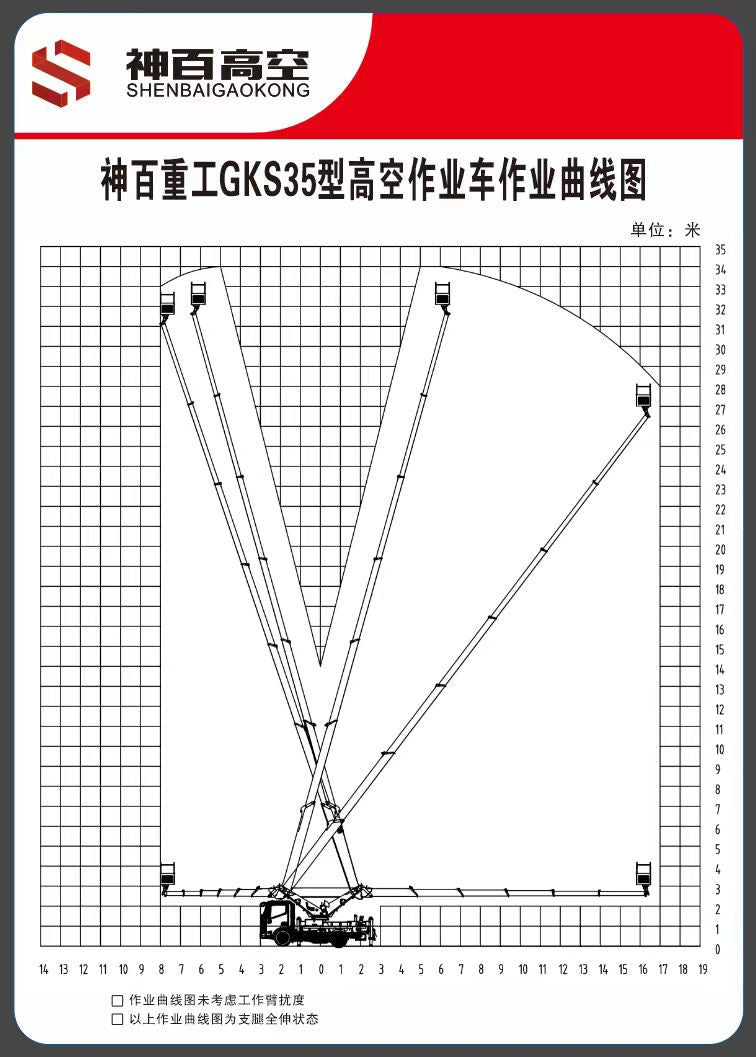

| Max Working Height | 33.8m |
| Max Working Radius | 16.5m |
| Rated Platform Load | 200KG |

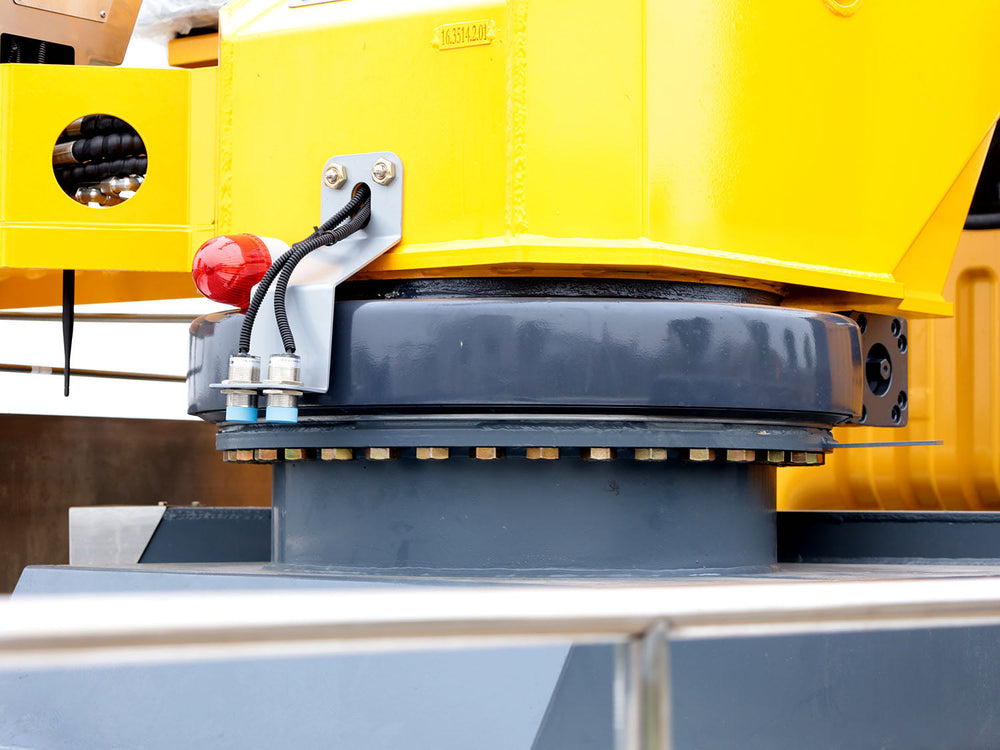

| Boom Slewing Angle | 360° |
| Platform Size | 1800mm700mm1000mm (with flip plate) |

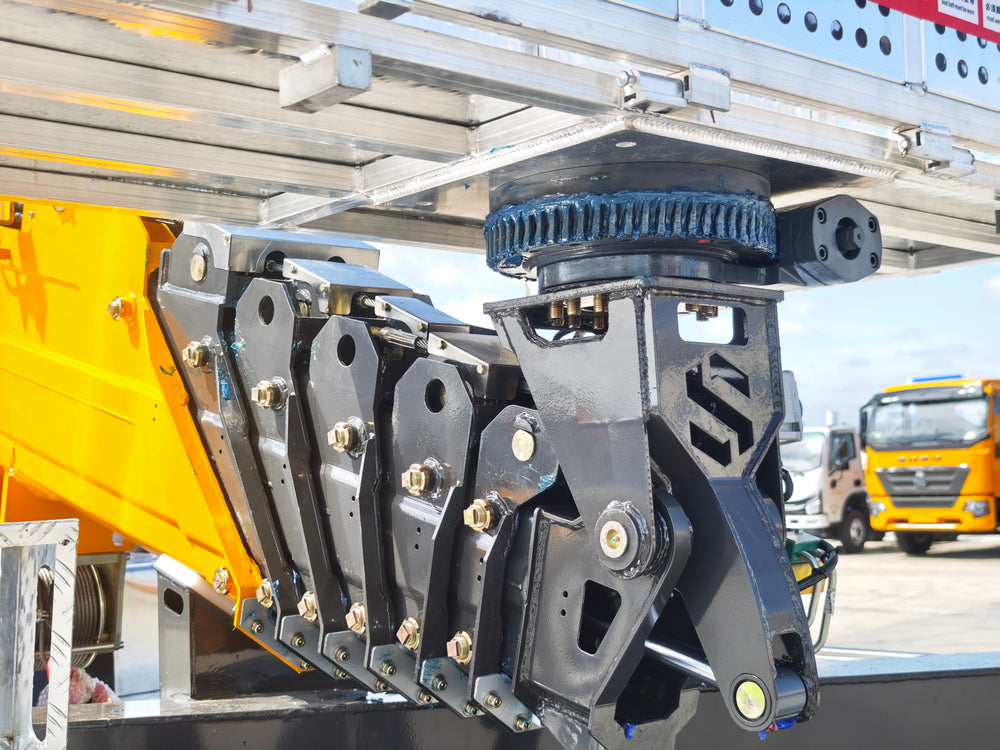

| Platform Rotation Range | 360° free full rotation |
| Boom Configuration | 7-section boom, 6 sections synchronous extension, fitted with spare steel wire rope for safe evacuation |

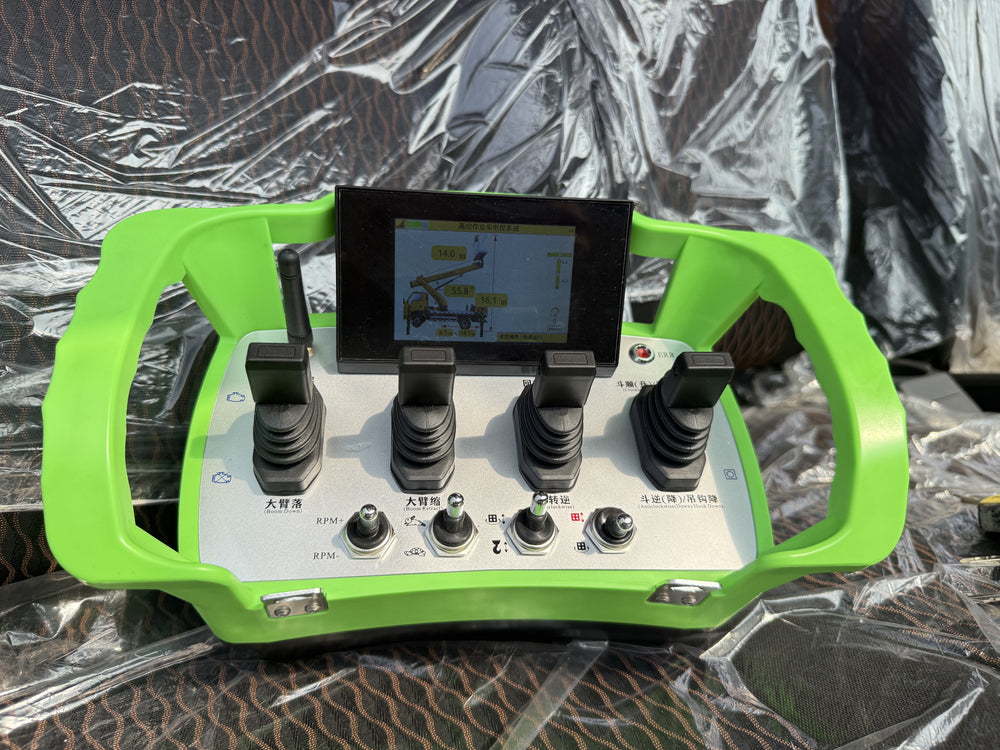

| Control System | High-grade domestic electric control system, wireless remote control, middle operation console with display screen |
| Hydraulic System | Electro-hydraulic proportional valve for stepless speed regulation, built-in emergency power unit |

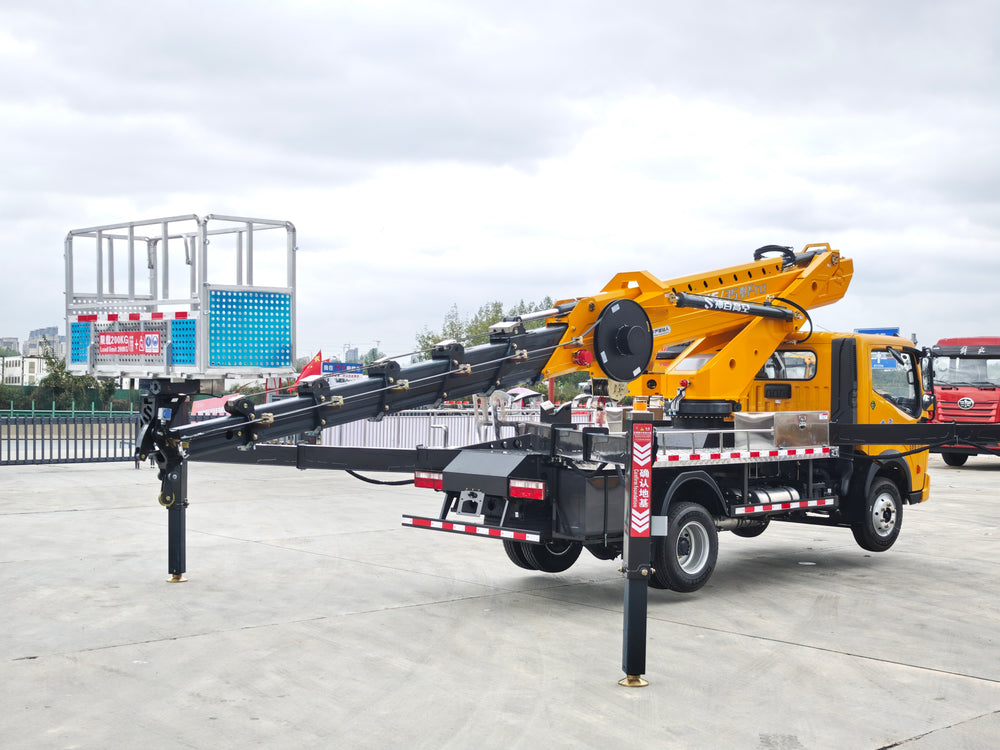

| Hydraulic Outriggers | X-type 4 sets of double-section independently adjustable outriggers |
| Walkway Plate | Aluminum alloy anti-slip walkway plate |
| Safety Devices | Upper & lower operation interlock, emergency power source, two-way hydraulic balance valve, outrigger soft leg protection, hydraulic radiator, 220V external power supply |
| Optional Equipments | Upper operation cab, 1-ton winch |
