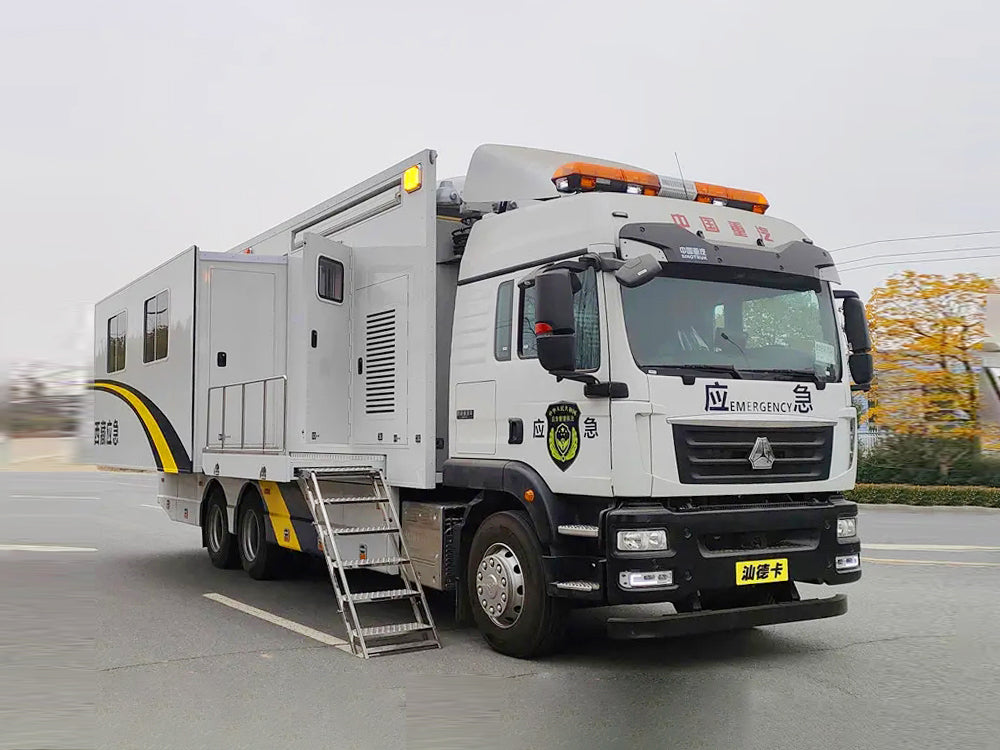

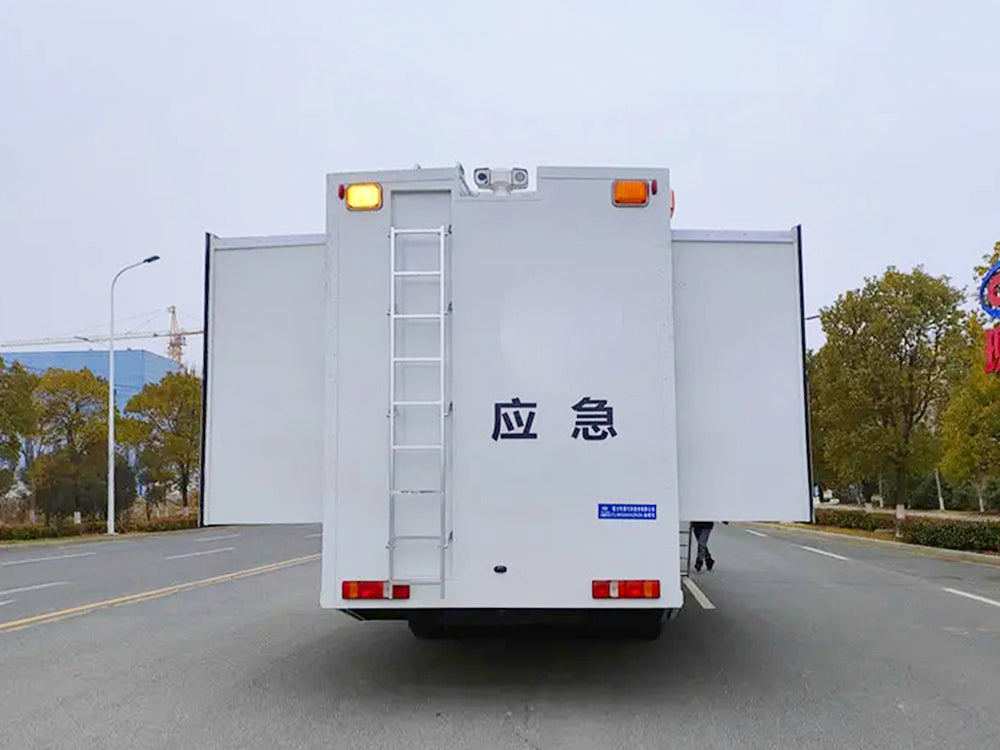

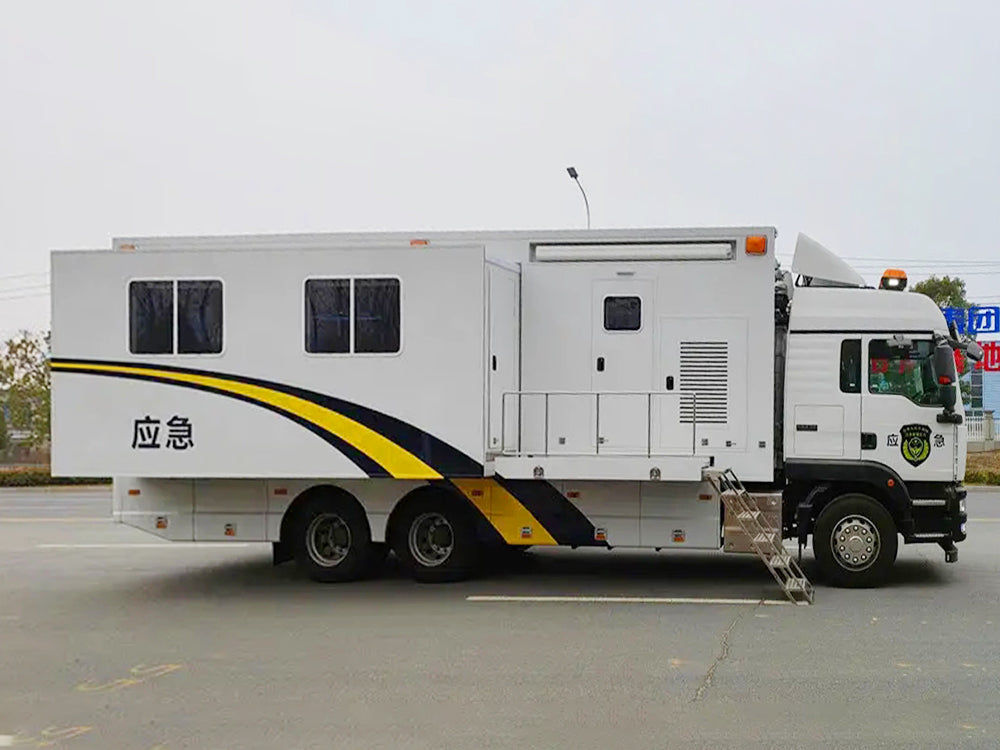

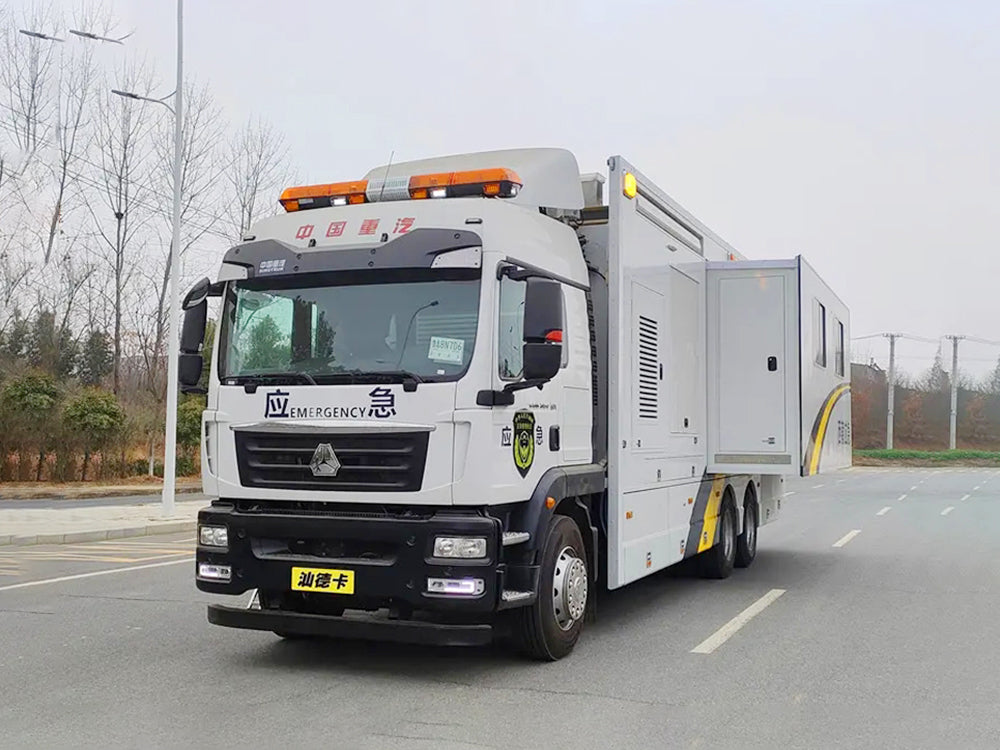

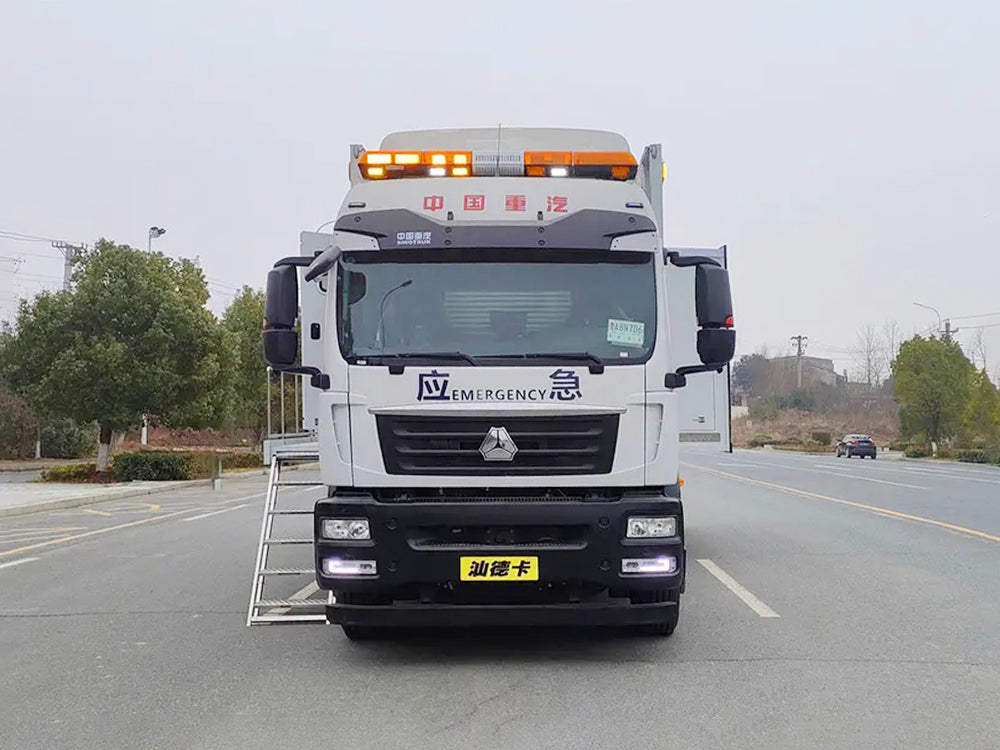

Sinotruk SITRAK 6×4 Emergency Command Vehicle
| Configuration Item | Specification & Parameter |
|---|---|
| Basic Vehicle Parameters | |
| Full Model Name | Sinotruk SITRAK 6×4 Emergency Command Vehicle |
| Drive Mode | 6×4 Rear Double Axle |
| Seating Capacity | 2 seats in driving cab + 6 working seats in rear command compartment |
| Overall Dimension (L×W×H) | 11800mm × 2550mm × 3950mm |
| Curb Weight | 17800kg |
| Gross Vehicle Weight | 32000kg |
| Max. Speed | ≥ 90km/h |
| Min. Turning Radius | ≤ 9.5m |
| Gradeability | ≥ 30% |
| Working Ambient Temperature | -40℃ ~ +55℃ |
| Chassis Parameters | |
| Original Chassis Model | Sinotruk SITRAK C7H 6×4 |
| Cab Type | High-roof single row cab, air suspension driver seat, automatic air conditioning |
| Wheelbase | 4600+1350mm |
| Tire Spec | 12.00R20 steel radial tires (1 spare tire included) |
| Front Axle Load | 7000kg |
| Rear Tandem Axle Total Load | 25000kg |
| Suspension | Front leaf spring, rear heavy-duty leaf spring with stabilizer bar |
| Brake System | Dual-circuit air brake, ABS, ASR, exhaust auxiliary brake |
| Steering | Hydraulic power steering |
| Transmission | 12-speed AMT automatic transmission |
| Main Engine System | |
| Engine Brand | Sinotruk MC13 Diesel Engine |
| Engine Type | Inline 6-cylinder, water-cooled, turbocharged & intercooled |
| Displacement | 12.42L |
| Rated Power / Speed | 400hp (294kW) / 1900rpm |
| Peak Torque | 2000N·m @ 1000~1400rpm |
| Fuel Supply | High pressure common rail electronic injection |
| Fuel Tank Volume | 400L |
| Emission Standard | National VI / Euro VI |
| Exhaust Device | Vertical exhaust with spark arrester & silencer |

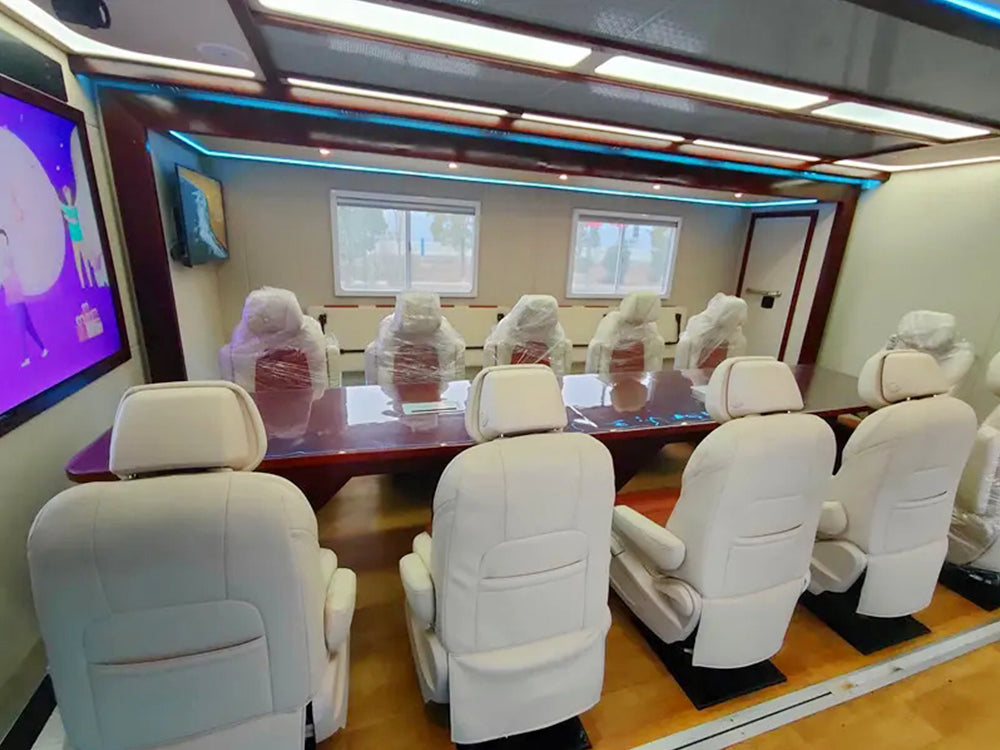

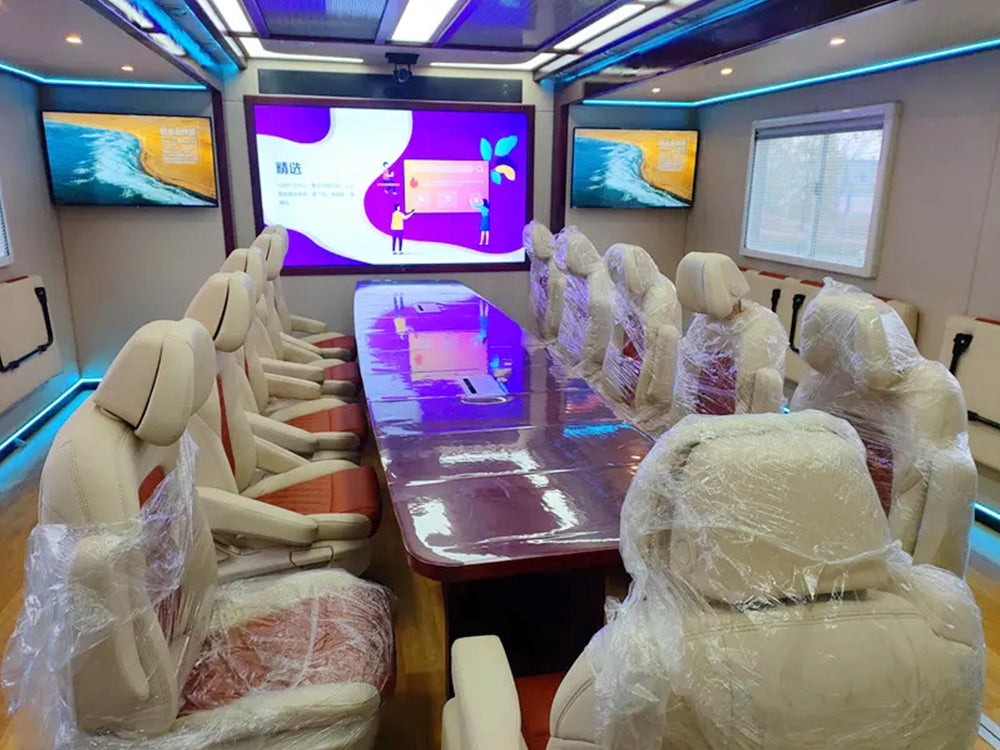

| Rear Command Compartment (Core) | |
| Compartment Structure | All steel welded sealed box, fully waterproof, dustproof, sound insulation & thermal insulation |
| Outer Plate | Cold rolled steel plate; Inner decorative fireproof panel |
| Floor | Anti-static fireproof floor, concealed wiring channel |
| Access Design | Side maintenance door, rear double door, external aluminum boarding ladder |
| Window Configuration | Double-layer hollow tempered privacy glass with sunshade curtain |
| Ventilation System | Positive pressure forced air intake + exhaust fans, rainproof dust filter shutters |
| Internal Environment Control | Dual independent inverter air conditioners + heating system, constant temperature control |
| Interior Lighting | Dimmable LED ambient light, console task light, emergency evacuation light |
| Exterior Warning Light | Top integrated orange long-row warning light bar |
| Integrated Command & Communication System | |
| Central Operation Platform | Integrated intelligent command host, 4 multi-function operation workstations |
| Video Conference System | HD MCU multi-point video conference terminal, screen sharing & remote meeting |
| Satellite Communication | Vehicle-mounted moving VSAT satellite station, global voice/video/data transmission |
| Trunking Radio System | DMR digital repeater, group call / emergency call function |
| Network Access | 5G/4G multi-carrier aggregation router, full coverage WiFi6, VPN encrypted transmission |
| Audio PA System | Digital audio matrix, outdoor high-power loudspeaker, emergency siren broadcast |
| Positioning Module | Beidou + GPS dual-mode high-precision positioning, real-time vehicle tracking |
| Display System | Wall-mounted multi-split display screen, real-time monitoring of field situation |
| Power Supply & Distribution System | |
| Power Supply Mode | 4-way redundant power: city mains / onboard silent generator / UPS backup / chassis power |
| On-board Generator | 25kW silent diesel generator, auto start-stop linkage |
| Online UPS Power | 20kVA UPS uninterruptible power supply, standby time ≥ 2 hours |
| Main Distribution Cabinet | Intelligent copper busbar power cabinet, overload, short circuit, leakage full protection |
| Output Interface | Multiple 220V AC industrial sockets, 380V heavy-duty power terminals, 24V DC ports |
| Low/High Voltage Separate Wiring | Fire-resistant wiring harness, independent circuit protection for each loop |
| Full Safety Protection System | |
| Fire Protection | Smoke & temperature automatic fire alarm, dry powder fire extinguishers inside & outside |
| Grounding System | Retractable grounding rod & cable, whole vehicle equipotential bonding, grounding resistance ≤ 4Ω |
| Lightning Protection | Class II lightning protection module for communication and power circuits |
| Anti-corrosion Treatment | Whole vehicle sandblasting primer + outdoor anti-corrosion finish paint |
| Safety Marking | Standard emergency reflective marking, warning signs, operation specification labels |
| Emergency Devices | Multi-position emergency stop buttons, escape hammer, first aid kit |
| 360° Surveillance | Panoramic exterior cameras + interior monitoring system with DVR storage |
| Standard Equipments & Optional Upgrades | |
| Standard On-board Accessories | Conference table, office chairs, printer, whiteboard, intercom terminals, safety protective gear |
| Optional Upgrade 1 | UAV vehicle-mounted take-off & control system, roof sliding drone platform |
| Optional Upgrade 2 | Larger capacity lithium battery pack, solar auxiliary power system |
| Optional Upgrade 3 | Expandable slide-out compartment, bulletproof armored compartment upgrade |
| Optional Upgrade 4 | Cold region preheating package / high temperature enhanced cooling package |
