What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

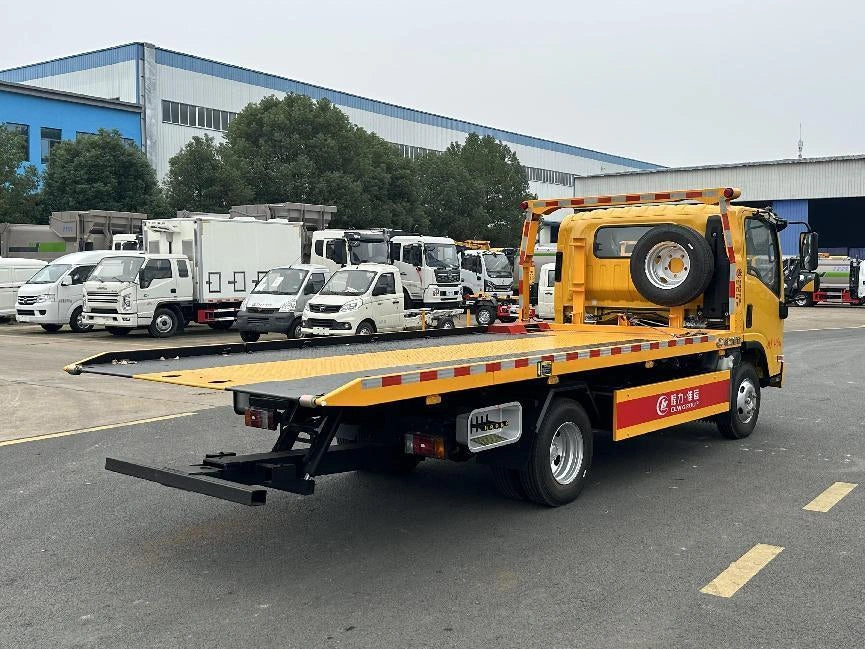

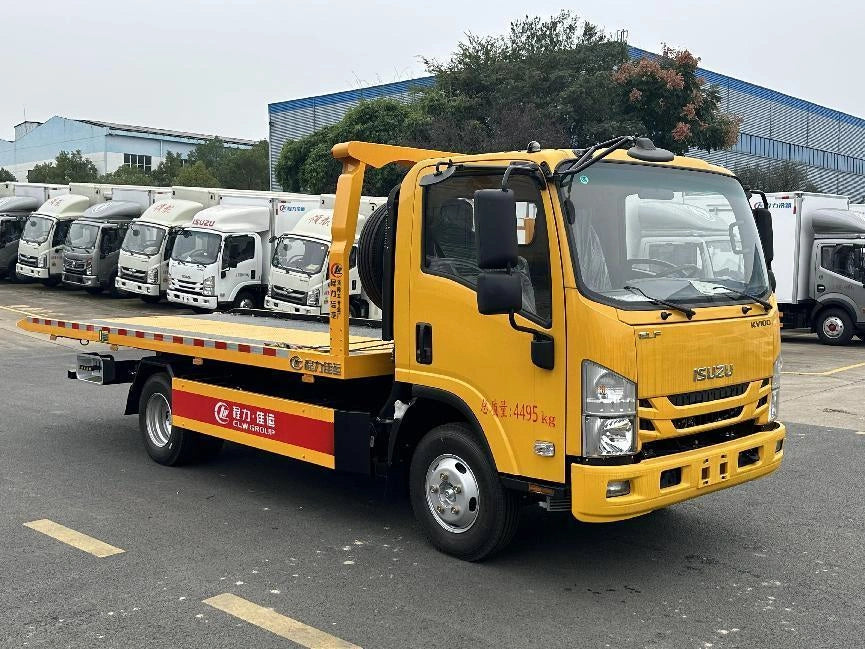

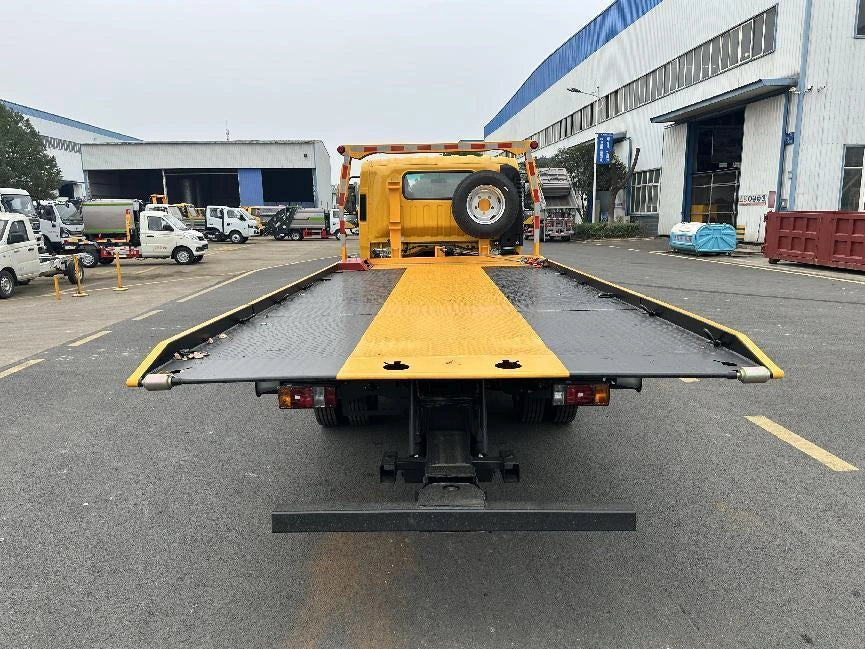

Isuzu tow truck (25-50T)

Name: Isuzu tow truck (25-50T)
Brand: Factory Direct Supply of Shenbai Special Purpose Trucks
Availability: InStock

Isuzu tow truck (25-50T) - View 4 - SHENBAI Auto

1 / 2

ISUZU Heavy-Duty Wrecker / Tow Truck (25–50T) – Key Specifications

Parameter	Specification
Vehicle Type	Heavy-Duty Rotary Wrecker / Recovery Tow Truck
Chassis Model	ISUZU GIGA (C/E Series / S&E Series)
Drive Configuration	8×4 (also available in 6×4 / 10-wheel configuration)
GVWR	25 – 50+ tons
Overall Dimensions (L×W×H)	~11,430 × 2,500 × 3,270 mm

Engine & Drivetrain

Parameter	Specification
Engine	ISUZU 6WG1 Series turbocharged diesel
Horsepower	350 – 520 HP (6WG1-TCG62 up to 520HP)
Displacement	15.68L
Emission Standard	Euro IV / V / VI
Transmission	FAST 12-speed manual (12JSD240TA-B) / ZF 8-speed optional
Fuel	Diesel

Performance & Capacity

Parameter	Specification
Max Towing Capacity	25 – 50 tons
Max Boom Lifting Capacity	50 tons (retracted) / 10 tons (fully extended)
Max Lifting Height	12 meters
Boom Rotation	360° continuous rotation
Boom Sections	3-section design
Boom Reach	10 – 15 meters (adjustable)

Chassis & Axles

Parameter	Specification
Wheelbase	2,100 + 4,325 + 1,370 mm
Front Tires	385/65R22.5
Rear Tires	315/80R22.5
Brakes	ABS, air brake system
Steering	LHD / RHD available

Recovery Equipment

Parameter	Specification
Main Winch	50-ton capacity (2 × 25-ton winches)
Auxiliary Winches	10 – 20 tons (optional)
Wire Rope	45 meters, steel cable
Underlift / Wheel Lift	Integrated, supports 100–150T towing capacity
Outriggers	4-point hydraulic stabilizers with automatic leveling
Control	Dual-side linkage + wireless remote control

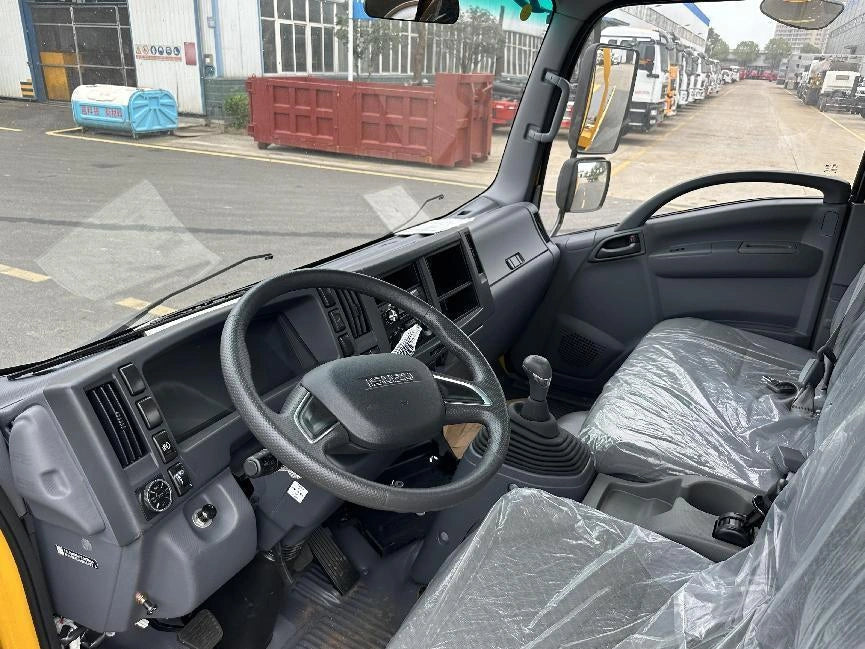

Cab & Features

Parameter	Specification
Cab	ISUZU GIGA 5X Series, spacious ergonomic design
Air Conditioning	Standard
Lighting	LED warning lights, 3 rear working lights
Additional	Real-time load monitoring, joystick controls
