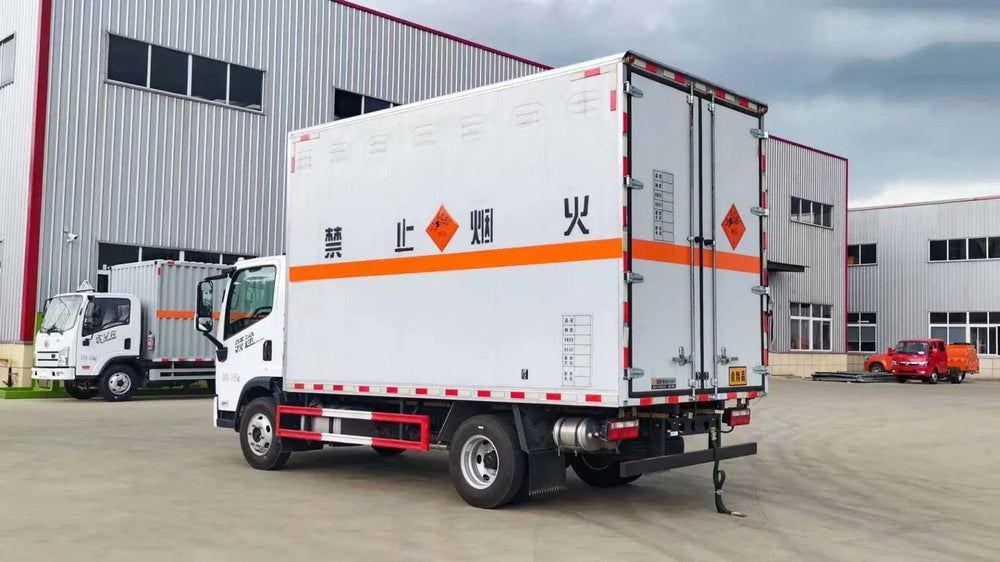

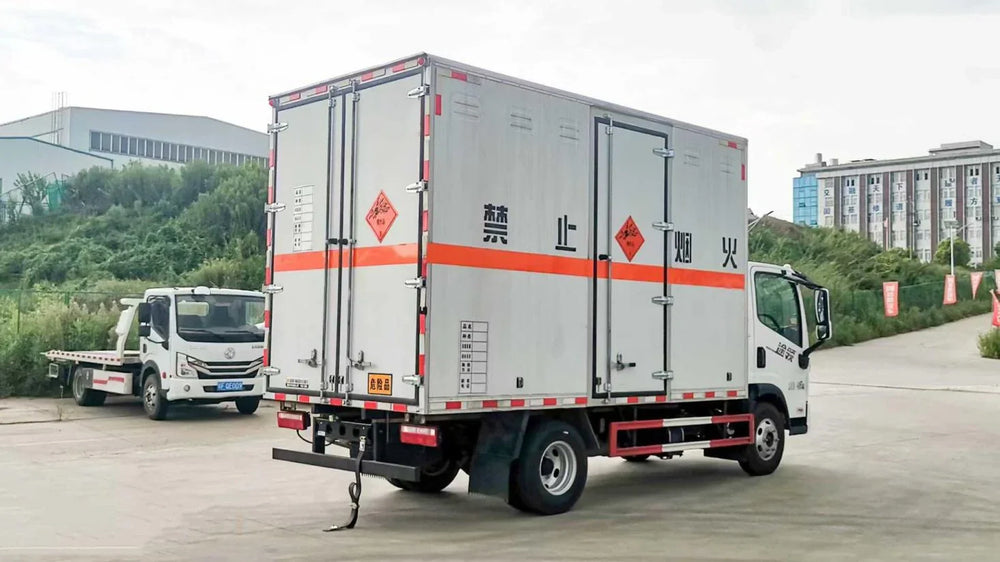

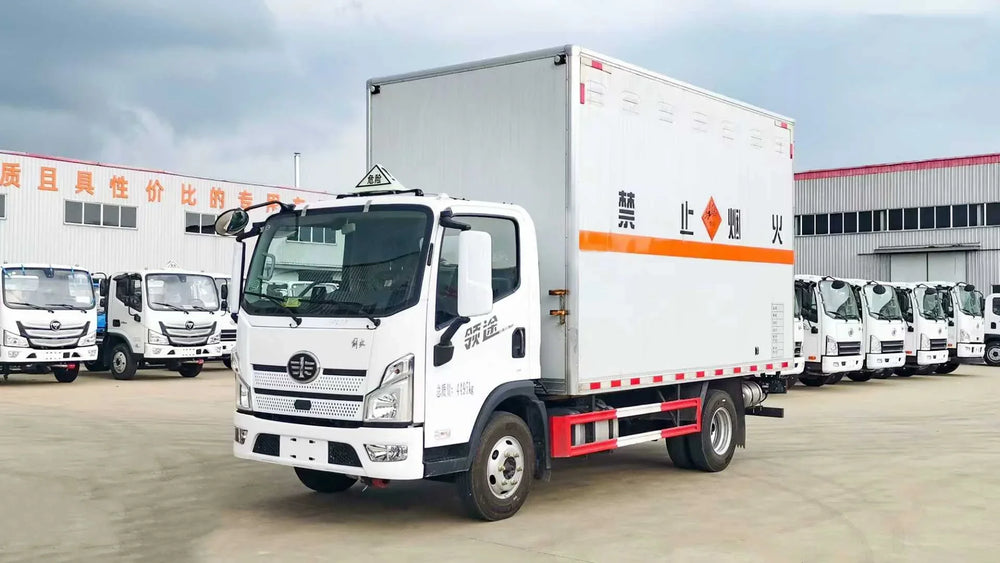

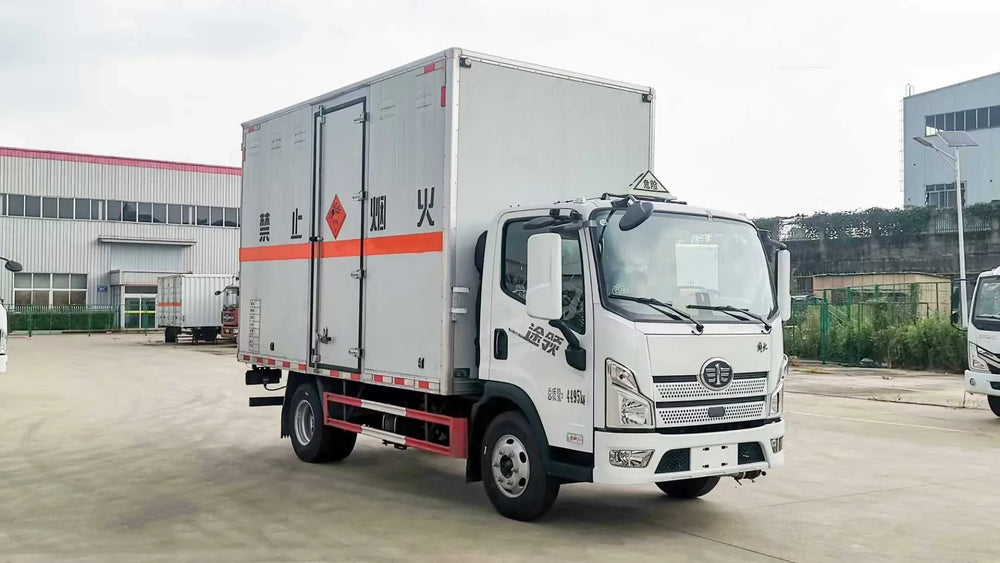

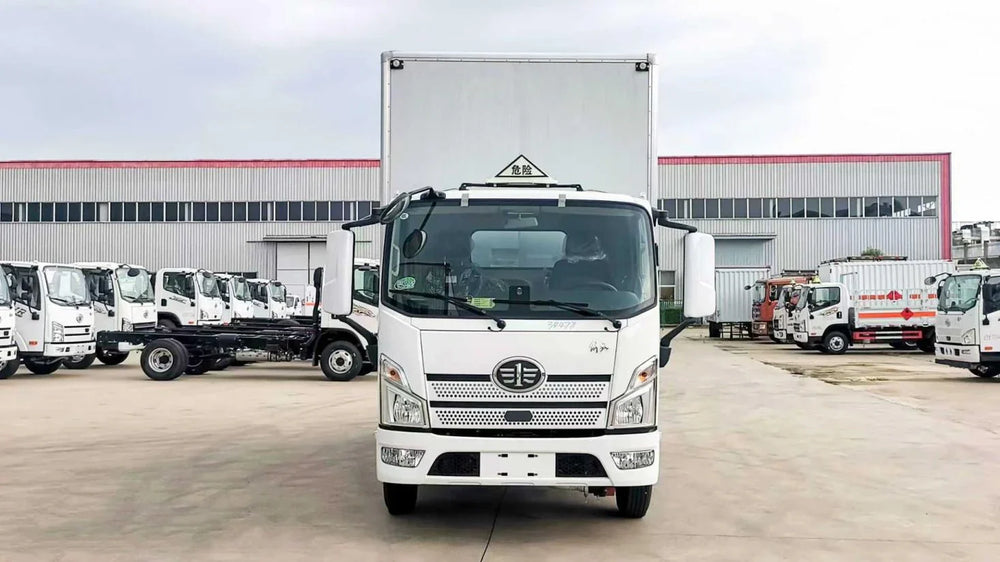

The FAW Explosives Transport Vehicle

The FAW Explosives Transport Vehicle
The FAW Explosives Transport Vehicle
The FAW Explosives Transport Vehicle
The FAW Explosives Transport Vehicle
The FAW Explosives Transport Vehicle
1 / 5
The FAW Explosives Transport Vehicle
The FAW Explosives Transport Vehicle
The FAW Explosives Transport Vehicle
The FAW Explosives Transport Vehicle
The FAW Explosives Transport Vehicle

FAW Blasting Equipment Transport Vehicle – Key Specifications



Parameter Specification
Vehicle Type Light to Medium-Duty Blasting Equipment Transport Van / Explosives Carrier
Chassis Series FAW J6L / J6F / JH6 / Tiger VH (multiple variants available)
Drive Configuration 4×2 / 6×2 / 8×4
Emission Standard China VI (GB17691-2018)

Dimensions & Weight



Parameter Specification
Overall Dimensions (L×W×H) 5,995 – 10,080 × 2,200 – 2,550 × 2,475 – 3,560 mm
Cargo Box Dimensions (L×W×H) 4,210 – 7,700 × 2,170 – 2,450 × 1,950 – 2,600 mm
Wheelbase 3,300 – 5,800 mm
GVWR 8,280 – 21,000 kg
Curb Weight (Kerb Mass) 4,530 – 7,430 kg
Payload Capacity 3,215 – 10,000 kg

Engine & Drivetrain



Parameter Specification
Engine Model Dachai CA4DK1-18E51 / CA4DD1 series / WP3NQ160E61
Displacement 2.3 – 4.764 L
Max Horsepower 120 – 180 HP
Max Output Power 118 – 139 kW
Max Torque 320 – 720 N·m
Transmission 5-speed / 6-speed / 8-speed manual
Fuel Type Diesel

Chassis & Axles



Parameter Specification
Front Track 1,640 – 1,890 mm
Rear Track 1,540 – 1,878 mm
Tire Specification 8.25R20 / 10.00R20 / 245/70R19.5 / 255/70R22.5
Tire Count 6
Suspension Leaf spring (7/10+3)
Brake System Front disc brakes, ABS

Cargo Box & Safety Equipment



Parameter Specification
Box Type Fully enclosed, top sealed and non-openable
Box Construction Double-layer metal framework; outer: cold-rolled steel; core: flame-retardant foam; inner: aluminum alloy panels
Floor Anti-static conductive rubber mat
Safety Features Gas alarm, anti-theft alarm, fire extinguishers, static grounding strap, GPS tracking, real-time monitoring
Exterior Markings Orange reflective tape + explosive diamond hazard signs
Hazard Class Transported 1.1B, 1.1C, 1.1D, 1.1G, 1.3C, 1.4G, etc.
Vehicle Type Classification EX/Ⅲ

Cab & Performance



Parameter Specification
Cab Type FAW J6L / J6F / JH6 series, single row or sleeper cab
Cab Capacity 2 – 3 persons
Air Conditioning Standard
Max Speed 79 – 80 km/h (governed)
