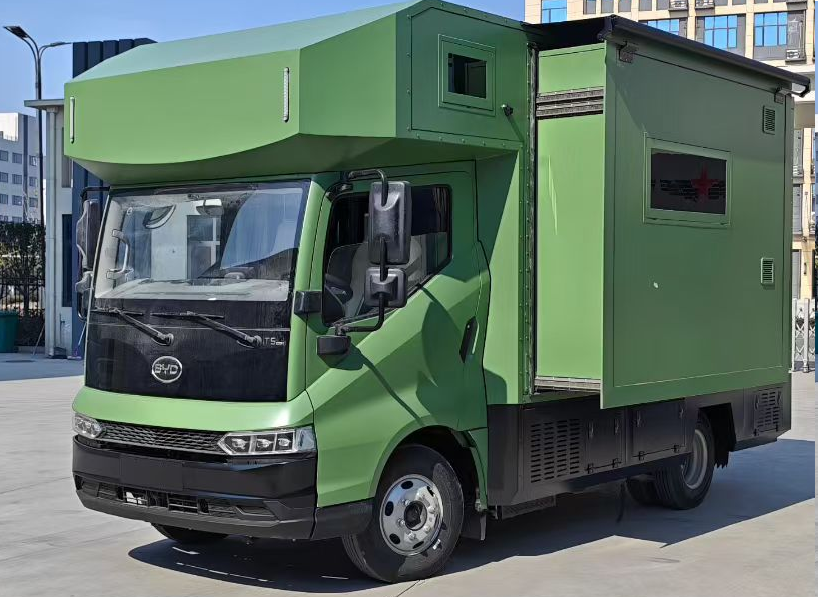

BYD T5 Extended-Range RV — Flat-Top with Front Bunk
Manufactured by Chengli Yashuté. Green-plate registered, 6-seat capacity, 6-year inspection-free, officially announced as a motorhome — no mandatory scrapping age.
Powertrain & Range
- Chassis: BYD T5 — factory-equipped 55.39 kWh Blade Battery
- Range extender: 1.5T petrol generator + 100 L fuel tank
- EV-only range: ~150 km
- Optional: 100 kWh pure-electric chassis
- Combined range (full fuel + full charge): 1,000+ km
- Fast charge: 15 minutes for emergency top-up
Chassis Specifications
| Overall Dimensions | 5996 × 2375 × 3200 mm |
| GVW | 6500 kg |
| Curb Weight | 5890 kg |
| Registration | Green plate | 6 passengers | 6-year inspection-free |
| Suspension | Front & rear multi-leaf flexible spring — smooth, quiet ride |
| Steering | Light and responsive; excellent forward visibility |
Body & Insulation
- High-strength FRP or aluminium alloy negative-pressure thermal insulation body
- Steel cage skeleton + thermal break layer + XPS extruded board + multi-layer board + interior panel — eliminates condensation at the source
- Flame-retardant & noise-dampening construction
- Sub-frame: T700 ultra-high-strength steel, full electrophoretic anti-corrosion treatment
Water System
| Fresh Water Tank | 300 L — 304 food-grade stainless steel, full encapsulation + compartment design, excellent freeze protection |
| Grey Water Tank | 120 L |
| Tank Design | Sunken layout — lowers centre of gravity, improves stability and ride comfort |
Key Highlights
- True energy freedom outdoors — EV + range extender + fast charge
- Spacious cab with wide field of view; easy to drive and park
- Higher interior space utilisation vs. conventional RVs
- No mandatory scrapping age (motorhome announcement)
- Fully customisable to customer requirements
National group-buy standard price from CNY 298,000. Custom configurations available — contact us for a quote.
