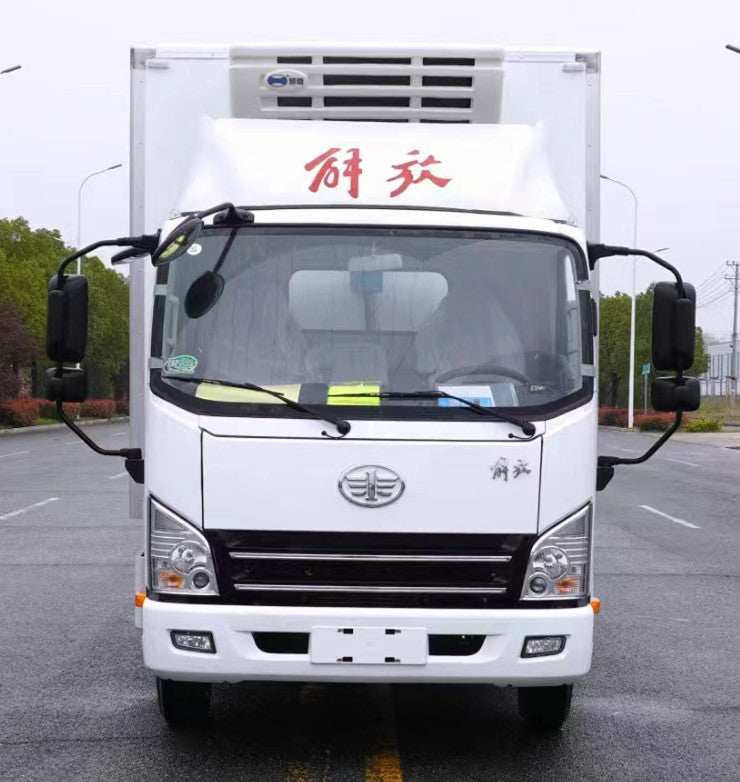

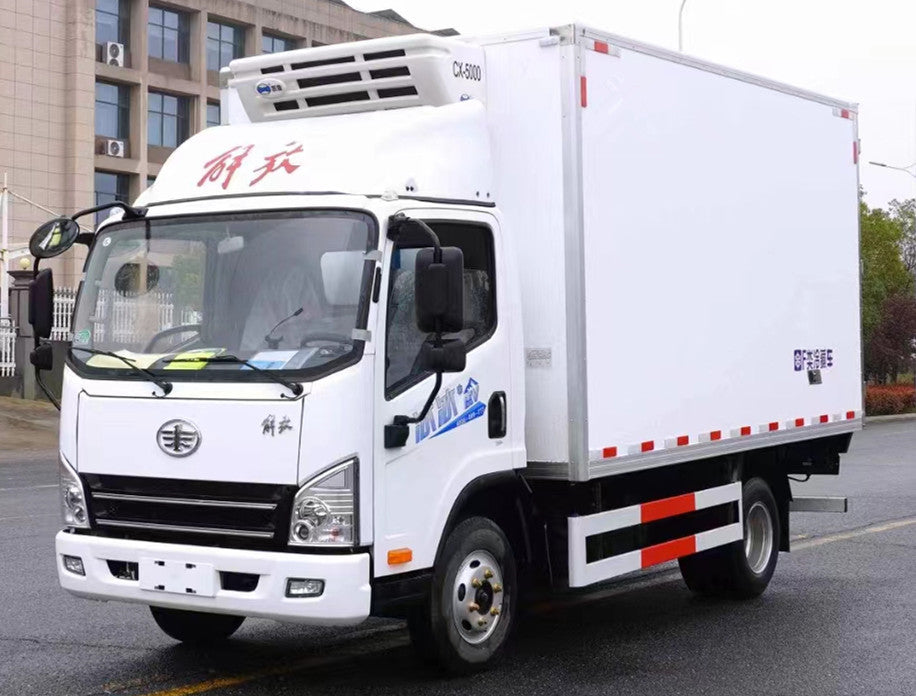

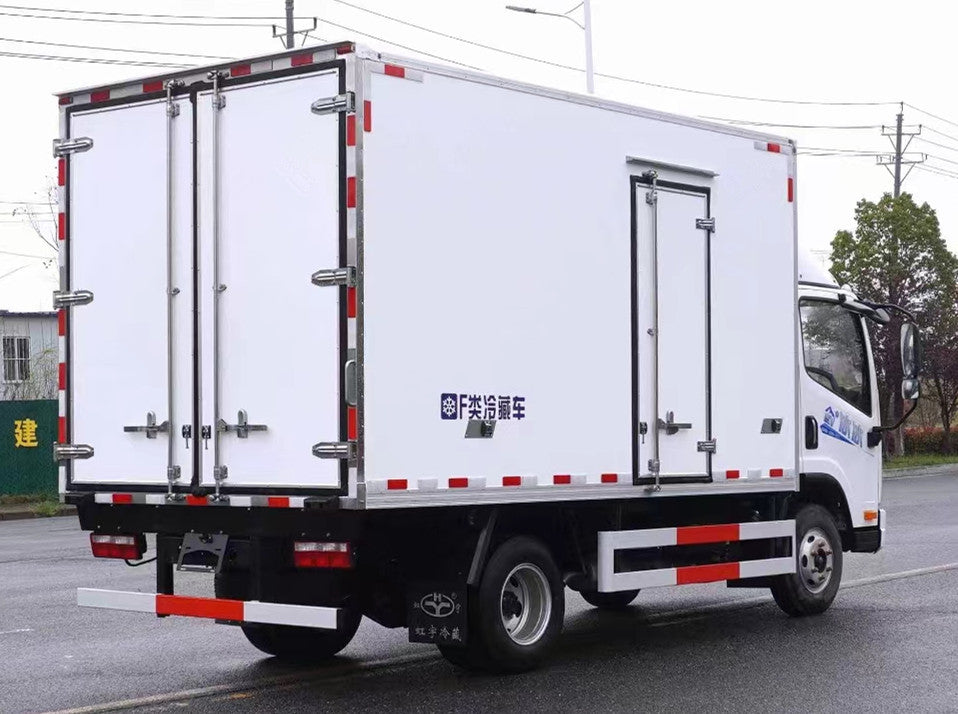

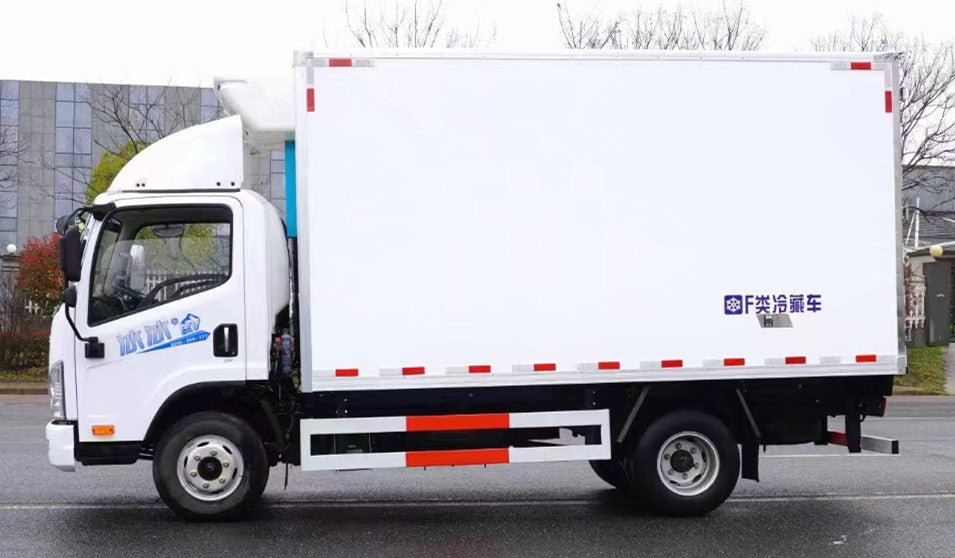

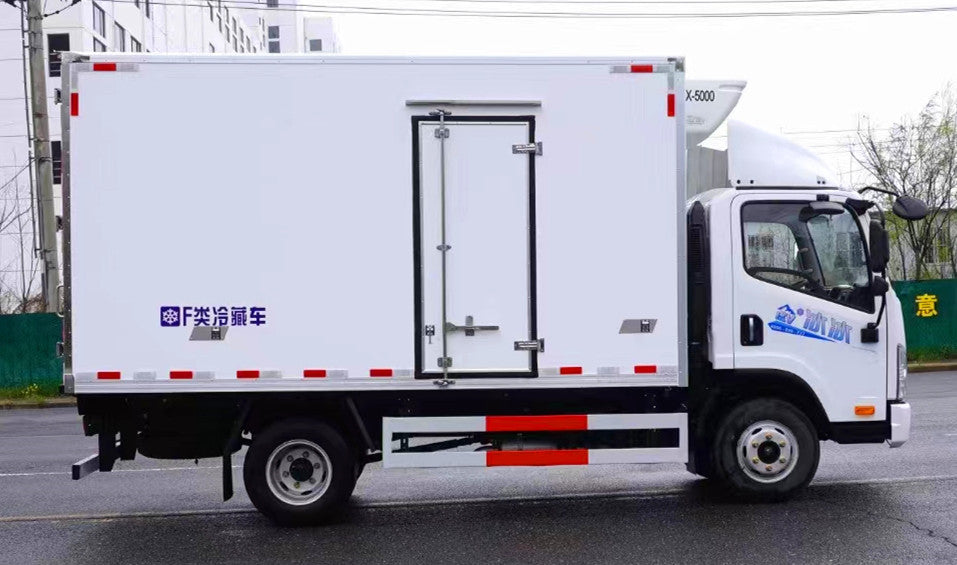

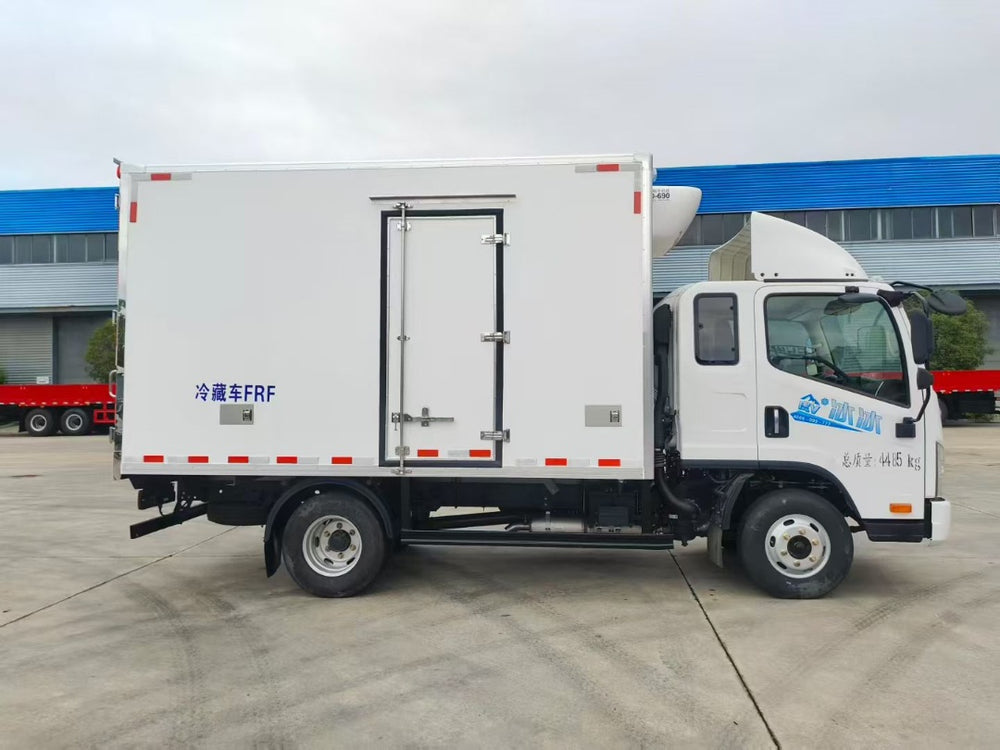

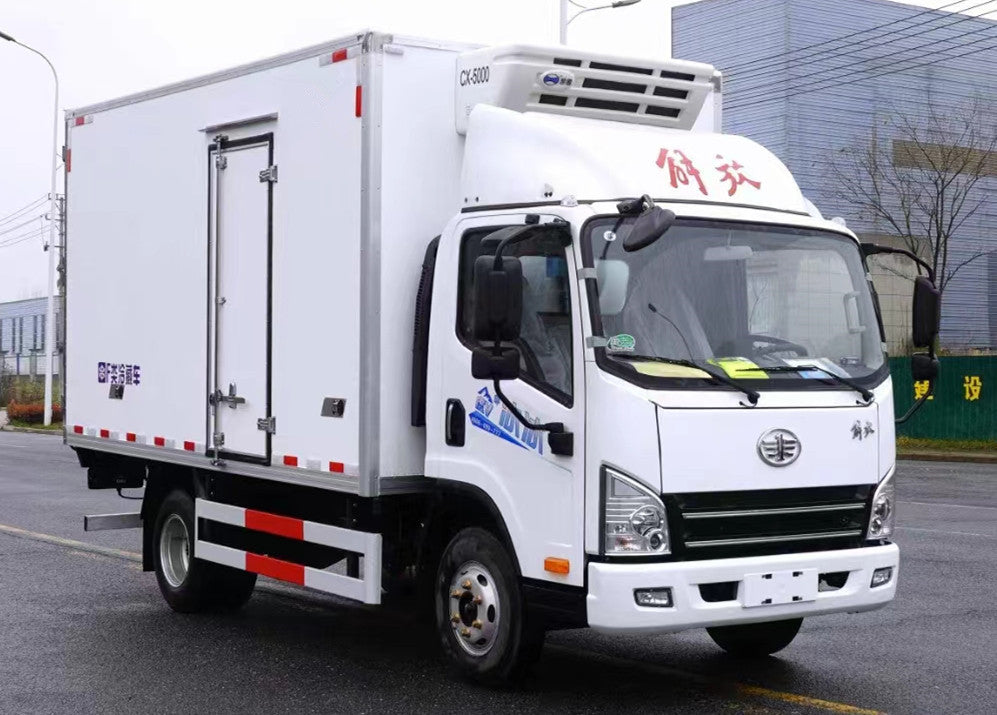

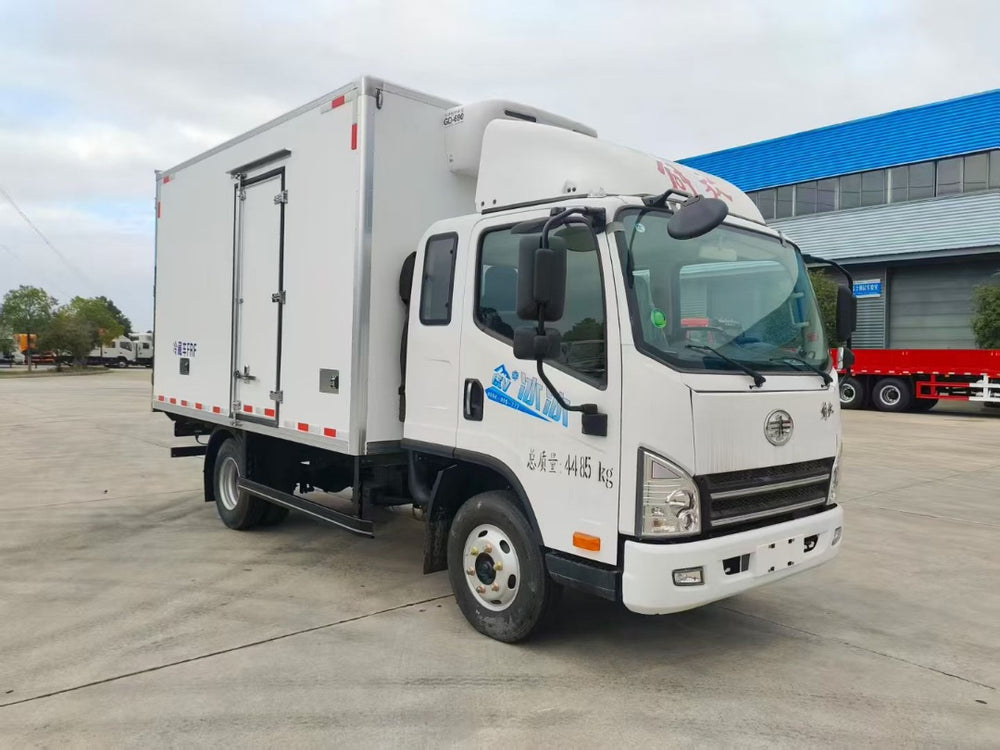

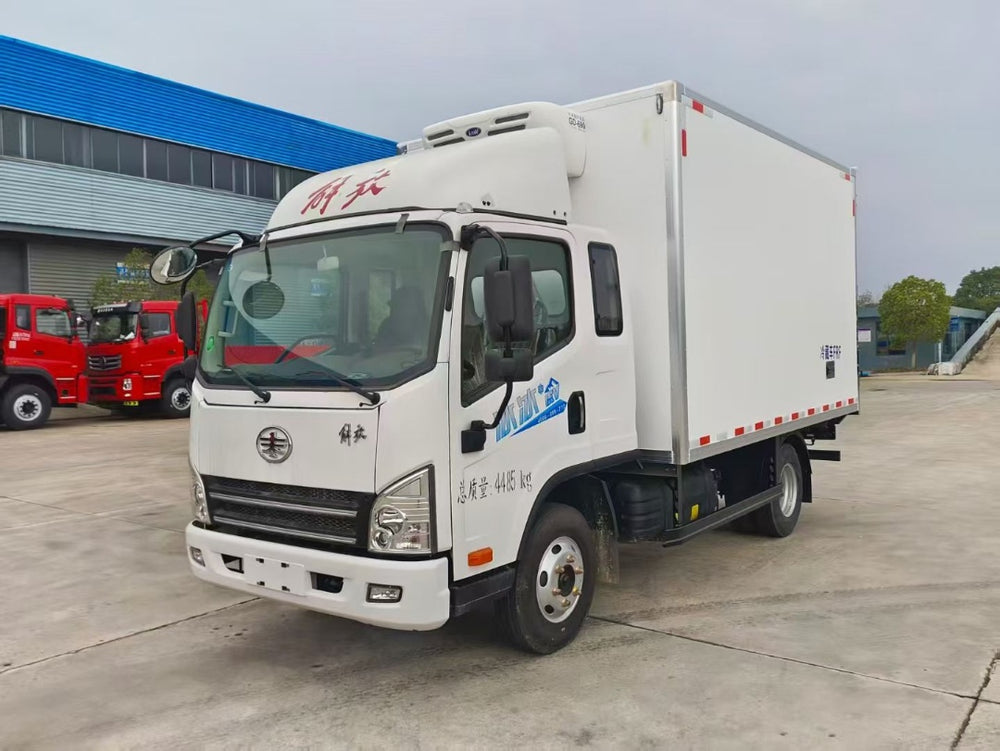

FAW JIEFANG TIGER V 4.2M REFRIGERATED TRUCK FULL SPECIFICATION TABLE
| Category | Item | Specification |
|---|---|---|
| Chassis Basic Info | Complete Vehicle Model | CA5041XLCP40K59L2E6A84 |
| Chassis Basic Info | Chassis Model | CA1041P40K59L2BE6A84 |
| Chassis Basic Info | Cabin Type | Single Row 1900mm Wide-body Tiger V Series Cabin |
| Chassis Basic Info | Wheelbase | 3300 mm |
| Chassis Basic Info | Overall Dimension (L×W×H) | 5995×2250×3150 mm |
| Chassis Basic Info | GVW / Curb Weight / Rated Payload | 4495kg / 2800kg / 1495kg |
| Chassis Basic Info | Drive Mode | 4×2 Rear Dual Wheel |
| Chassis Basic Info | Front / Rear Axle Load | 2T Front Axle, 4.5T Rear Axle |
| Chassis Basic Info | Final Drive Ratio | 4.875 |
| Chassis Basic Info | Tire Size | 7.00R16 14PR Vacuum Tire |
| Chassis Basic Info | Fuel Tank | 120L Steel Fuel Tank |
| Chassis Basic Info | Urea Tank | 20L |
| Powertrain System | Engine Model | CA4DD1-16E68 (FAW Dachai) |
| Powertrain System | Displacement | 3.0L / 2999cc Diesel |
| Powertrain System | Max Power / Horsepower | 118kW / 160HP |
| Powertrain System | Max Torque | 450N·m |
| Powertrain System | Emission Standard | China National VI (Euro 6) |
| Powertrain System | Transmission | 6-speed Manual Gearbox |
| Powertrain System | Fuel Type | Diesel |
| Standard Cabin Configuration | Suspension | Leaf Spring Suspension (3/7+6) |
| Standard Cabin Configuration | Steering & Brake | Hydraulic Power Steering + Air Brake with ABS + Automatic Slack Adjuster |

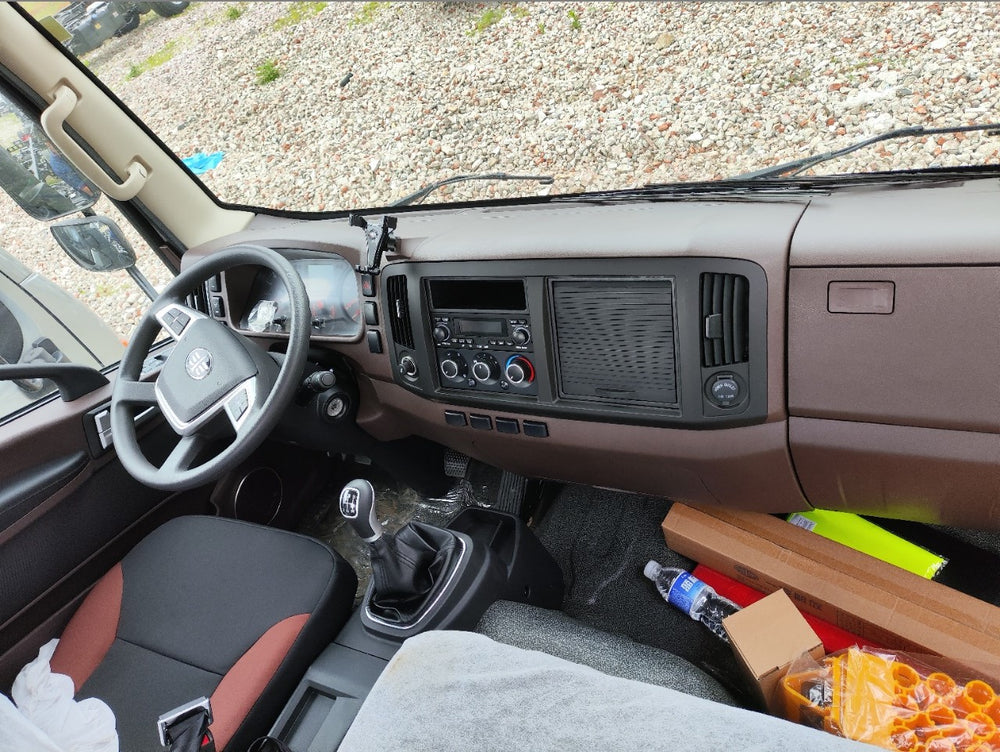

| Standard Cabin Configuration | Aux Equipment | Electric Heated Rearview Mirror, Multifunction Steering Wheel, Cruise Control, Power Window, Central Lock with Remote Key, Factory Original A/C, 24V Dual Battery, LCD Instrument, MP5 Multimedia System, Driver Air Suspension Seat, Windshield Wiper with Intermittent Function |
| Insulated Refrigerated Cargo Box | Inner Cargo Dimension (L×W×H) | 4200×2100×2100 mm |
| Insulated Refrigerated Cargo Box | Box Total Volume | ≈18.5 CBM |
| Insulated Refrigerated Cargo Box | Box Construction | Inner & Outer FRP + 80mm High-density PU Sandwich Insulation Panel |
| Insulated Refrigerated Cargo Box | Floor Material | Anti-slip Aluminum Pattern Plate |

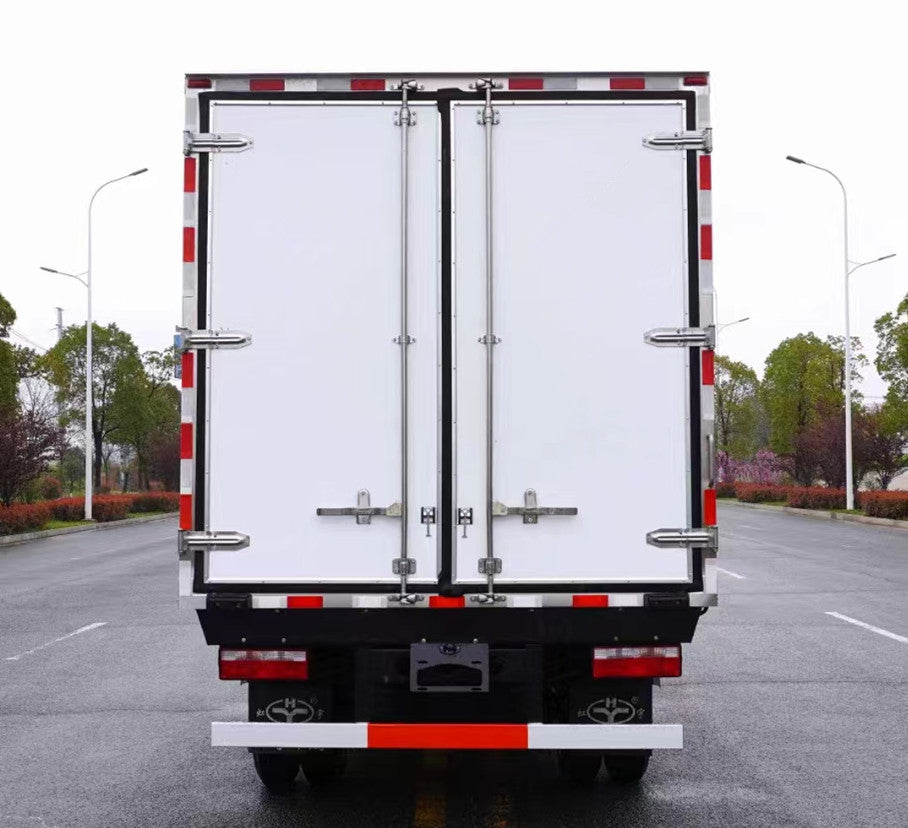

| Insulated Refrigerated Cargo Box | Fittings & Door Design | Aluminum Alloy Edge Wrap, Stainless Steel Hinges & Lock, Rear Double Door, Labyrinth Rubber Sealing Strip |
| Insulated Refrigerated Cargo Box | Partition | Insulated Partition for Multi-temperature Zone (Optional) |
| Optional Refrigeration Unit | Domestic Economy Unit | Kaixue / Hanxue, Temperature Range: -5℃ ~ -15℃ |
| Optional Refrigeration Unit | Import Premium Unit | Carrier / Thermo King, Temperature Range: -18℃ ~ +25℃ |
| Optional Refrigeration Unit | Dual-temperature Unit (Optional) | Cooling & Heating Available, Temperature Range: +25℃ ~ -20℃ |
| Optional Extra Accessories | Available Optional Fittings | Meat Hanging Rail, Full-air Duct, Digital Temperature Recorder, External 220V Standby Power, Side Opening Door, Cargo Securing Anchors, Insulated Bulkhead |
