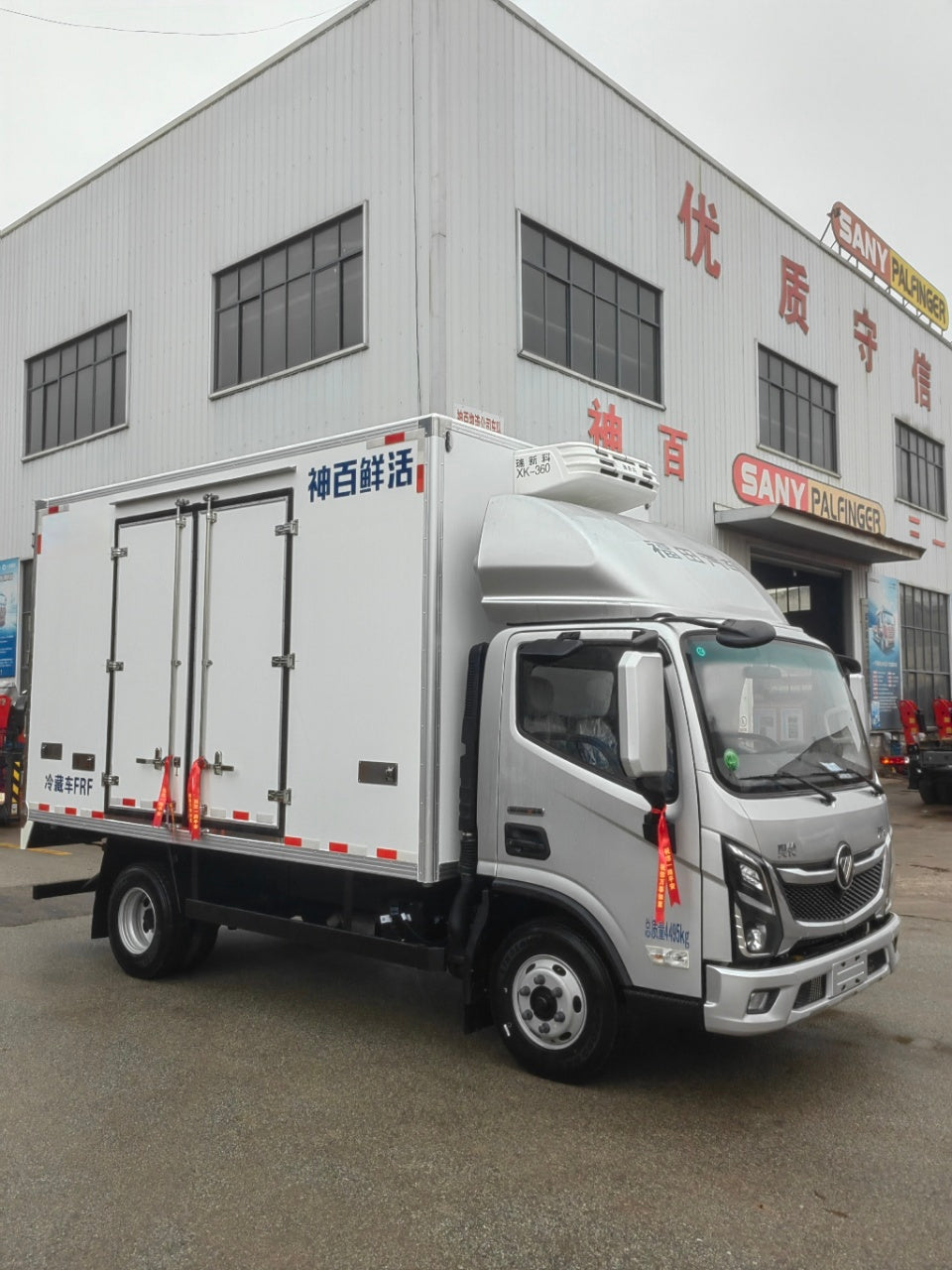

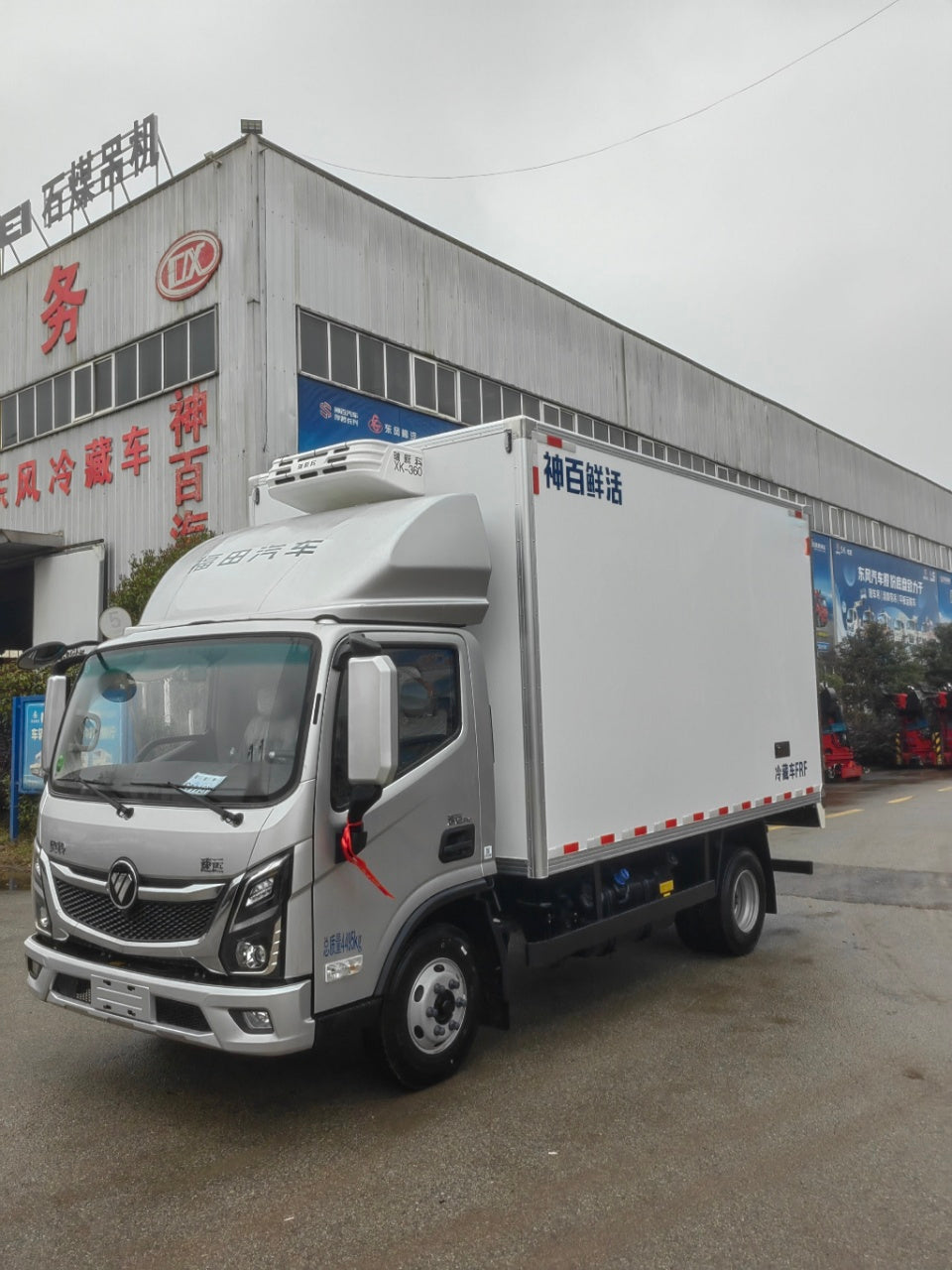

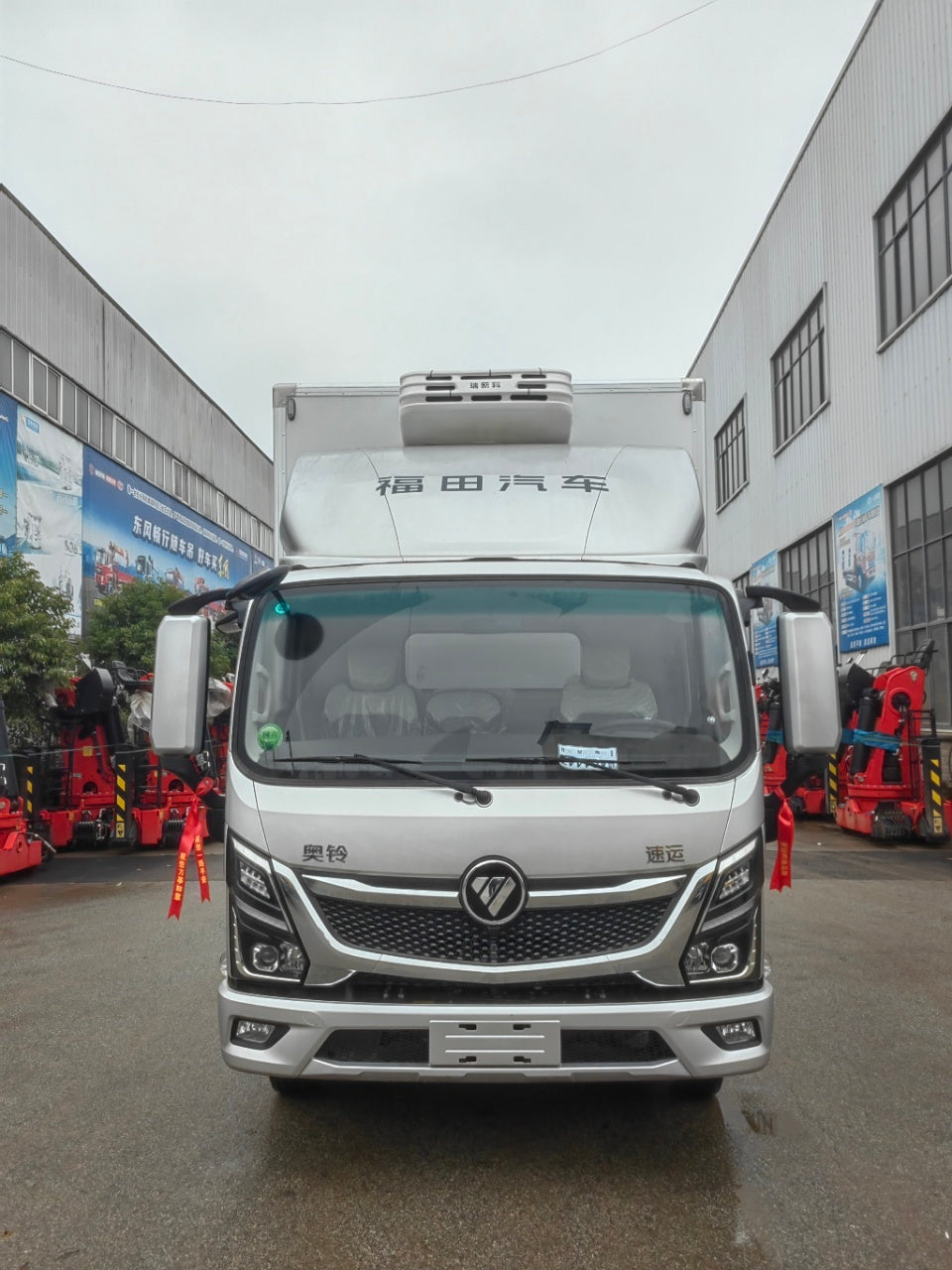

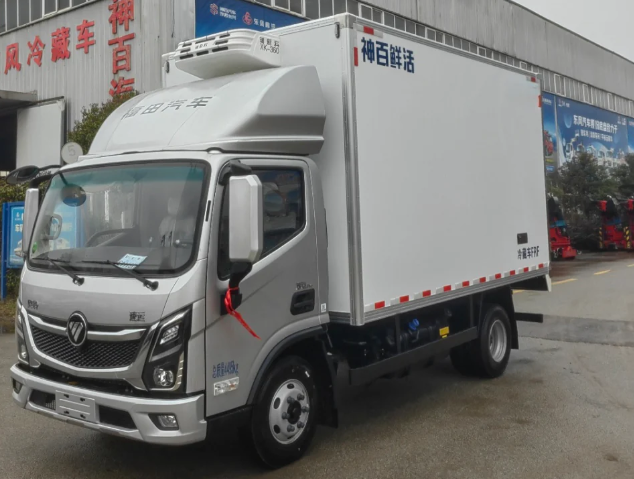

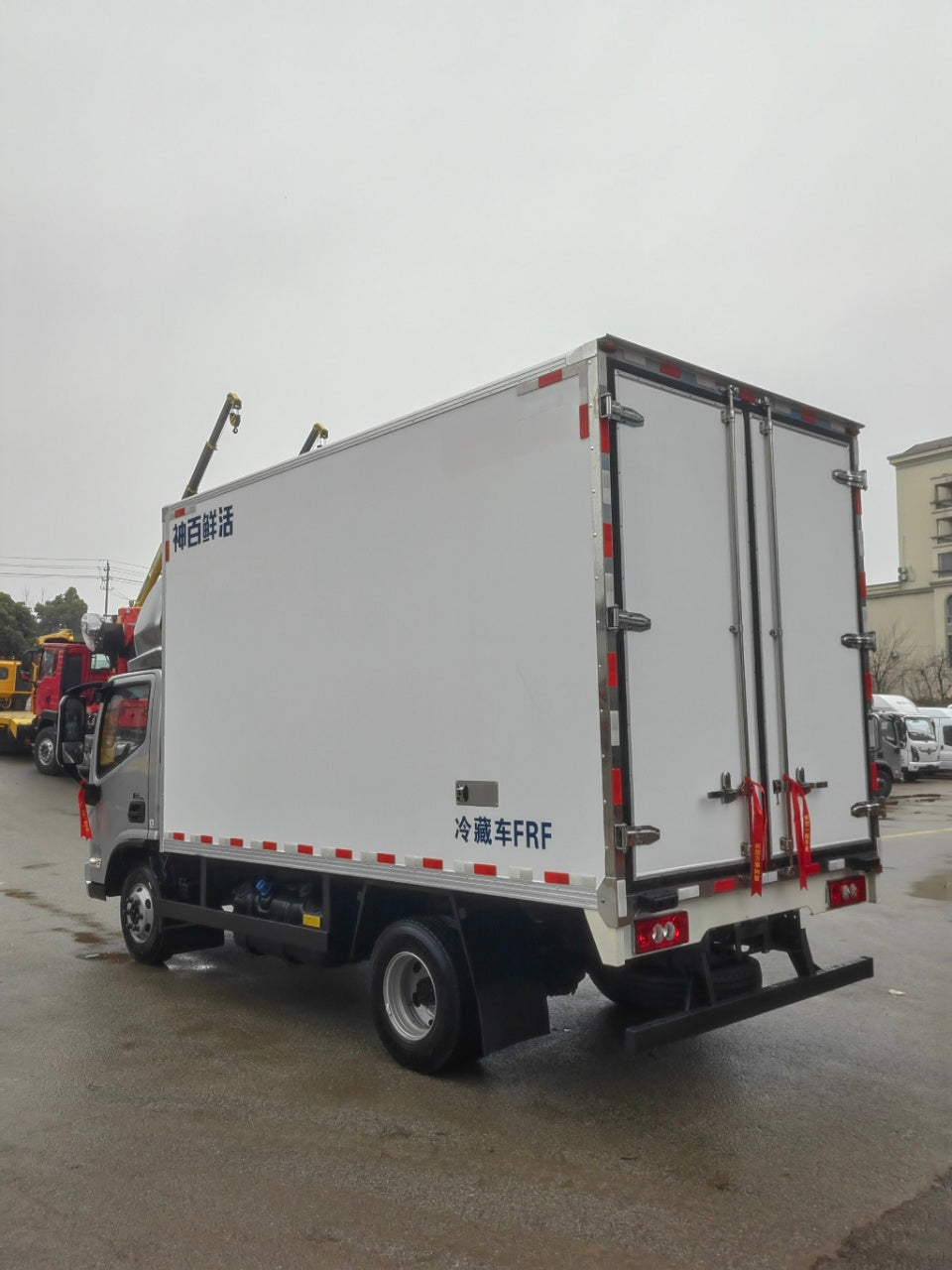

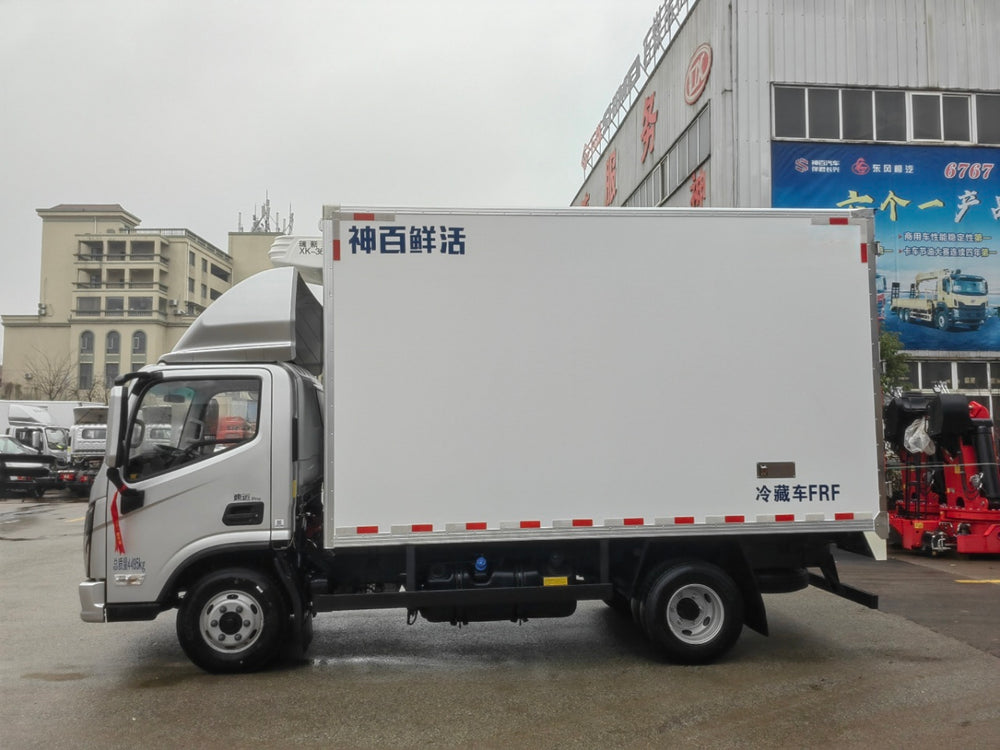

Foton Aoling Speed 4.2m Refrigerated Truck Spec Sheet
| Category | Specification |
|---|---|
| Complete Chassis Basic Info | |
| Vehicle Model | BJ5048XLC-FH (National VI Emission, Blue Plate) |
| Overall Dimension | 5995×2340×3260 mm |
| Inner Refrigerated Box Size | 4085×2100×2100 mm, Total Volume ≈18 CBM |
| Wheelbase | 3360 mm |
| GVW / Curb Weight / Rated Payload | 4495KG / 3200KG / 1295KG |
| Drive Mode | 4×2 Rear Wheel Drive, Rear Dual Tyres |
| Fuel Type | Diesel |
| Max Speed | 115 km/h |
| Engine Configuration | |
| Standard Engine | Foton Cummins F2.5NS6B131, Inline 4-Cylinder Turbo Diesel |
| Optional High Power | F2.5NS6B160 2.5L Diesel奥铃 |
| Displacement | 2498 cc奥铃 |
| Max Power / Torque | 96kW(131HP)/310N·m; Optional:115kW(156HP)/450N·m |
| Emission Standard | China National VI (Euro 6 Equivalent, SCR+DPF Urea After-treatment) |
| Fuel Tank / Urea Tank | 150L Plastic Fuel Tank, 18L Urea Tank |
| Transmission & Chassis Parts | |
| Standard Gearbox | ZF 5-speed Manual Transmission; Optional ZF 6-speed MT奥铃 |
| Brake System | Front Disc + Rear Drum Brake, WABCO ABS + Full Air Brake with Parking Spring Brake |
| Tire Spec | 7.00R16LT 8PR, 6 tires total |
| Rear Axle | 4.5T Rated Load, Final Drive Ratio 4.33(Optional 4.875) |
| Suspension | Front 3-Leaf Spring + Rear 8+6 Multi-leaf Spring |
| Cab Standard Fittings | |

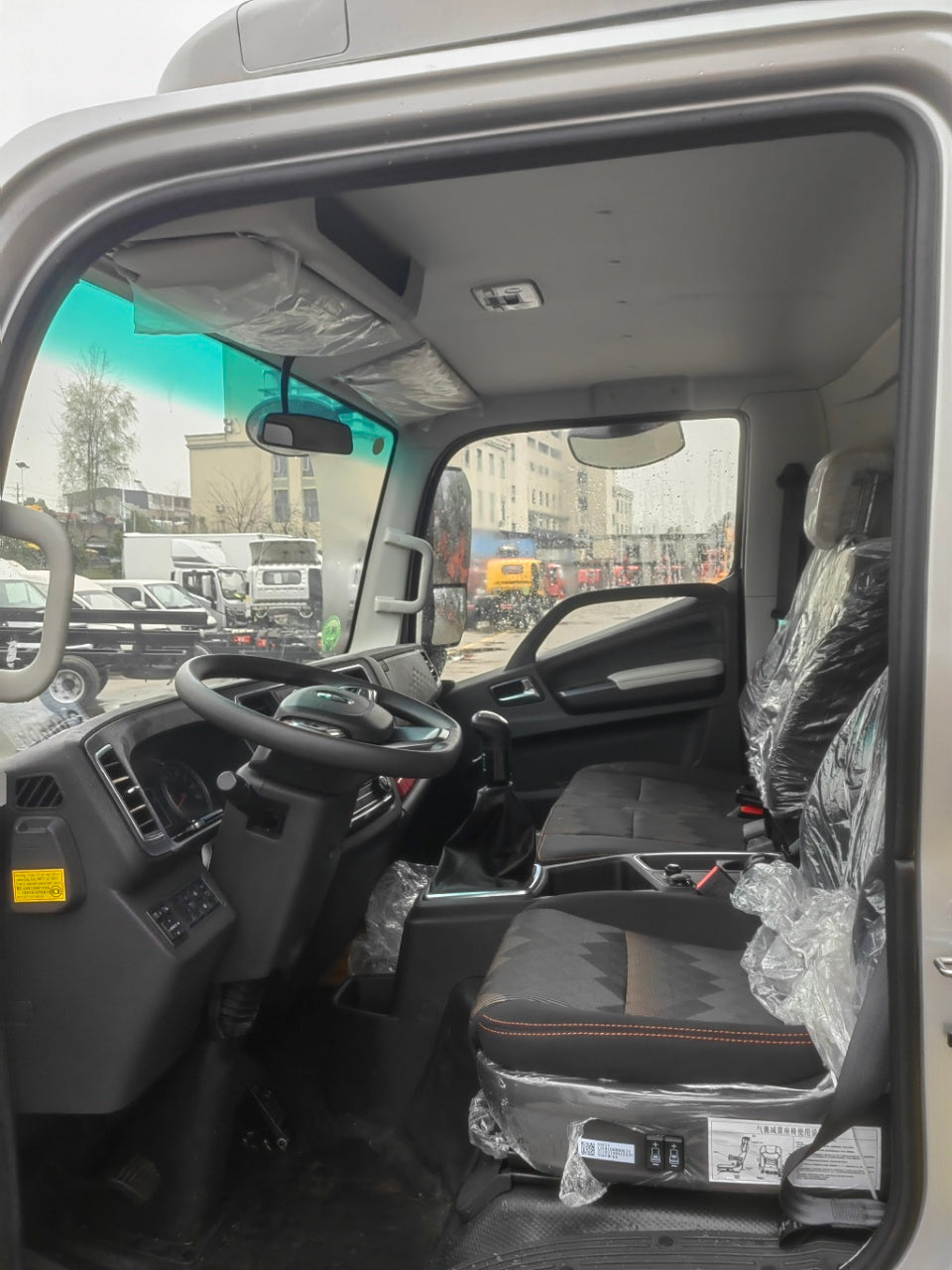

| Cabin Type | 1880mm Wide Single Row Cab, Metal Paint Finish |
| Standard Equipment | Original Factory A/C, Power Window, Central Lock & Remote Key, Cruise Control, Multifunctional Steering Wheel, Headlight Height Adjustable |
| Optional Upgrade | Reverse Camera, LCD Multimedia Player |
| Insulated Refrigerated Cargo Box | |
| Box Craft | Integral Vacuum Molding Sandwich Panel, Grade A Thermal Insulation |
| Panel Material | Inner & Outer FRP + 80mm High Density PU Foam Core |
| Floor | Anti-slip Aluminum Checkered Plate |

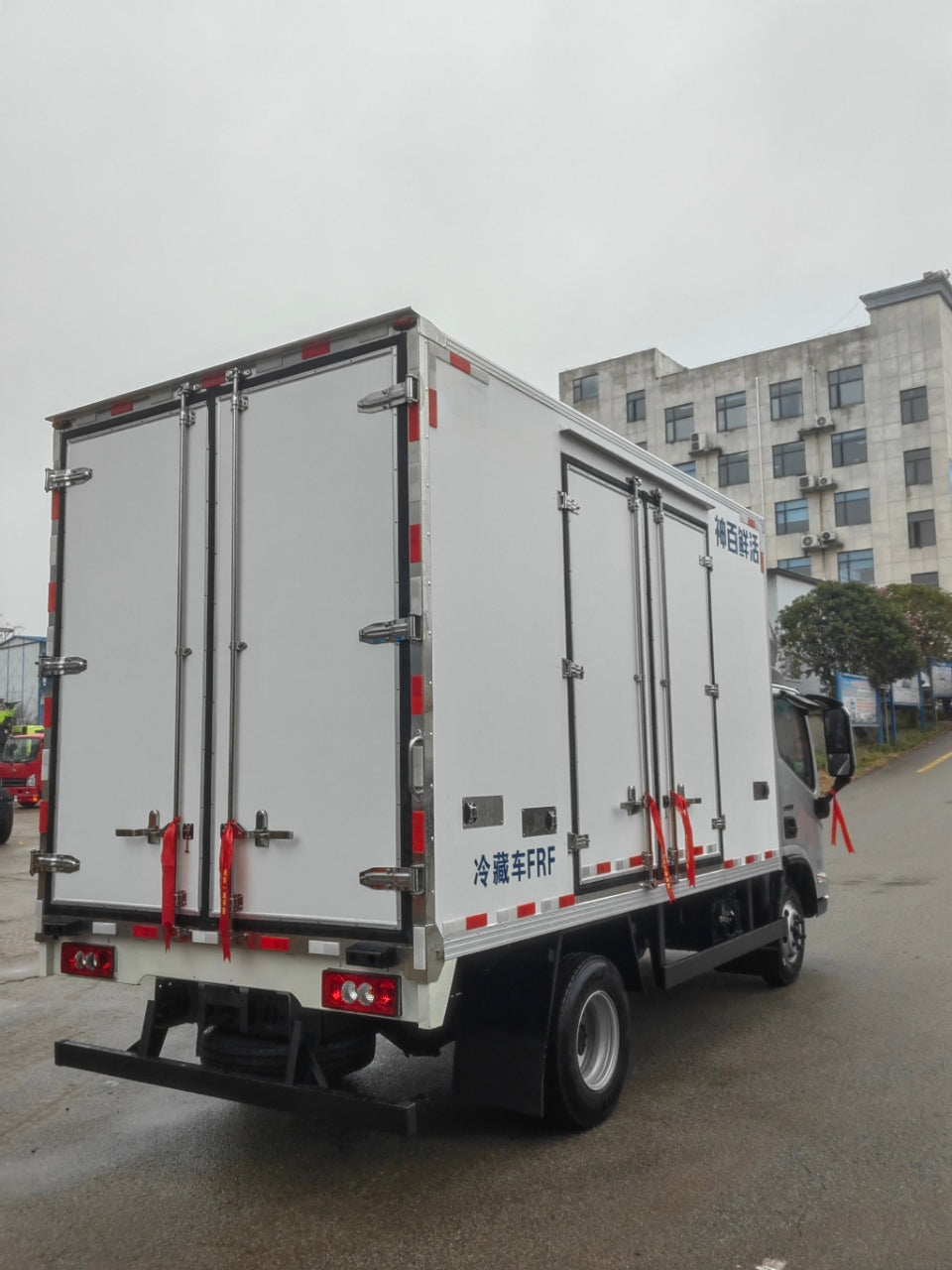

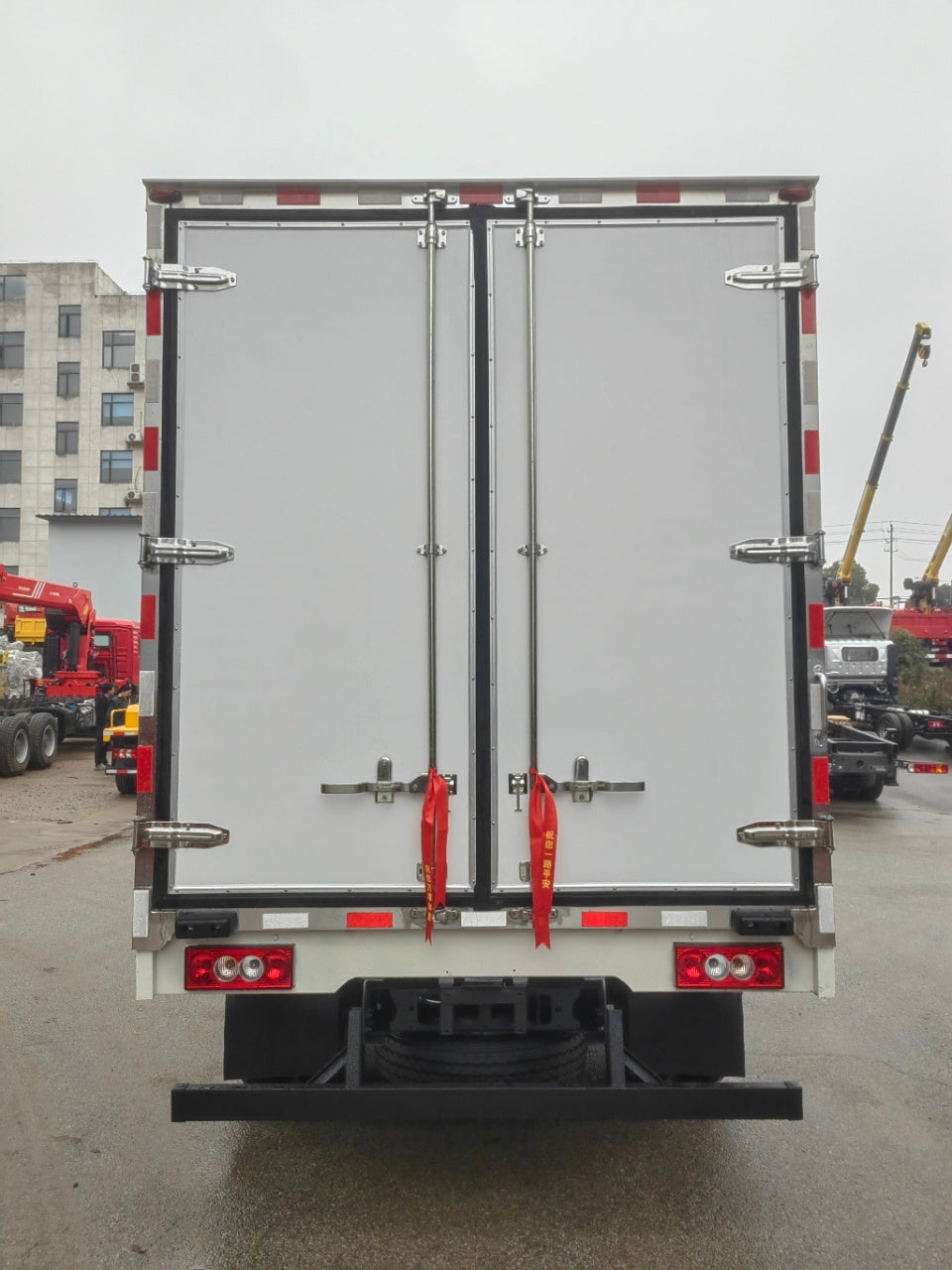

| Standard Accessories | Aluminum Extrusion Edge Wrap, Stainless Steel Hinge & Lock, Labyrinth Rubber Sealing Strip, Inner LED Cargo Lamp, Rear Double Swing Door |

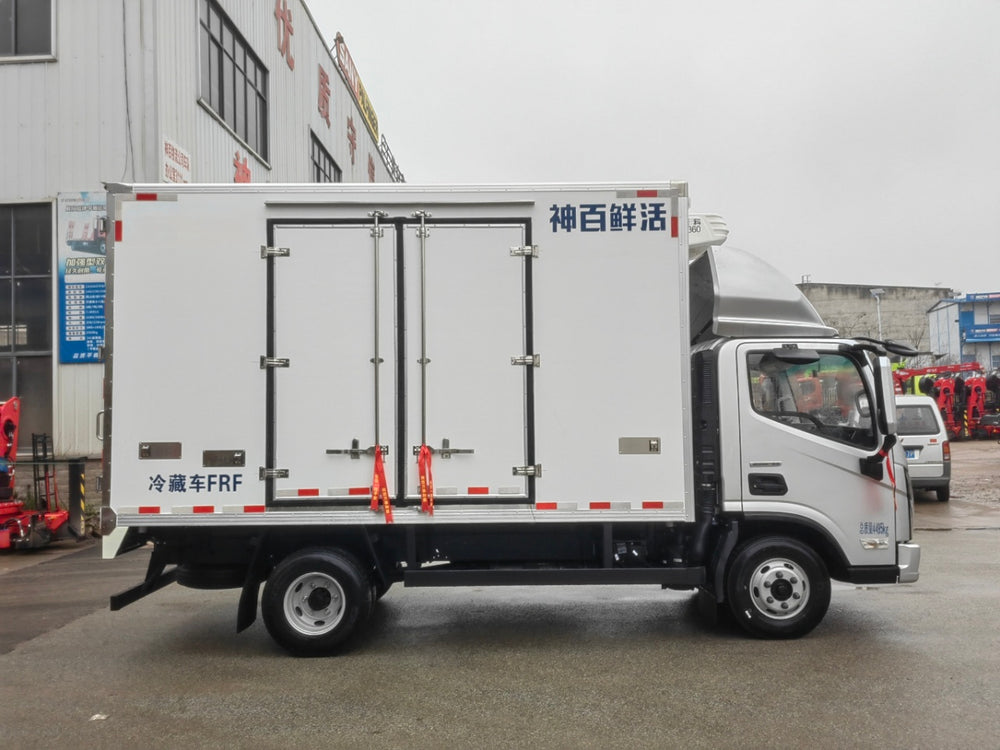

| Optional Extra | Side Cargo Door, Full Aluminum Air Duct, Meat Hanging Rails |
| Refrigeration Unit System | |
| Standard Unit | Domestic KX/KaiXue Engine-driven Refrigeration Unit |
| Optional Import Unit | Carrier / Thermo King Driven Cooling Unit |
| Adjustable Temp Range | -18℃ ~ +15℃ Precise Temperature Control |
| Refrigerant | Eco-friendly R404A |
