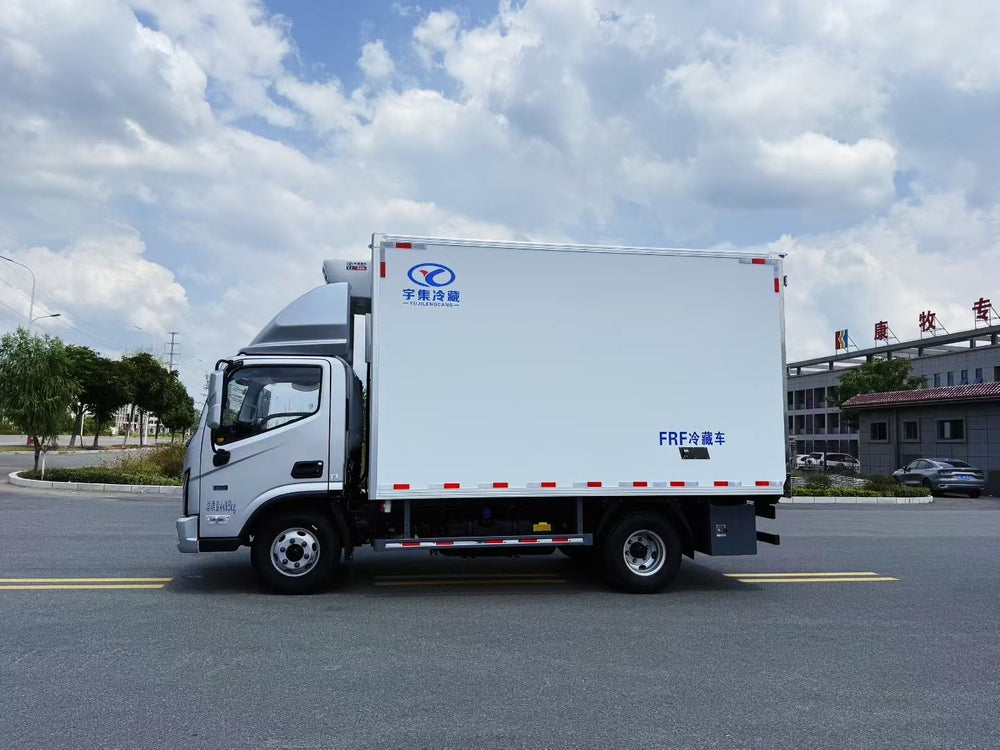

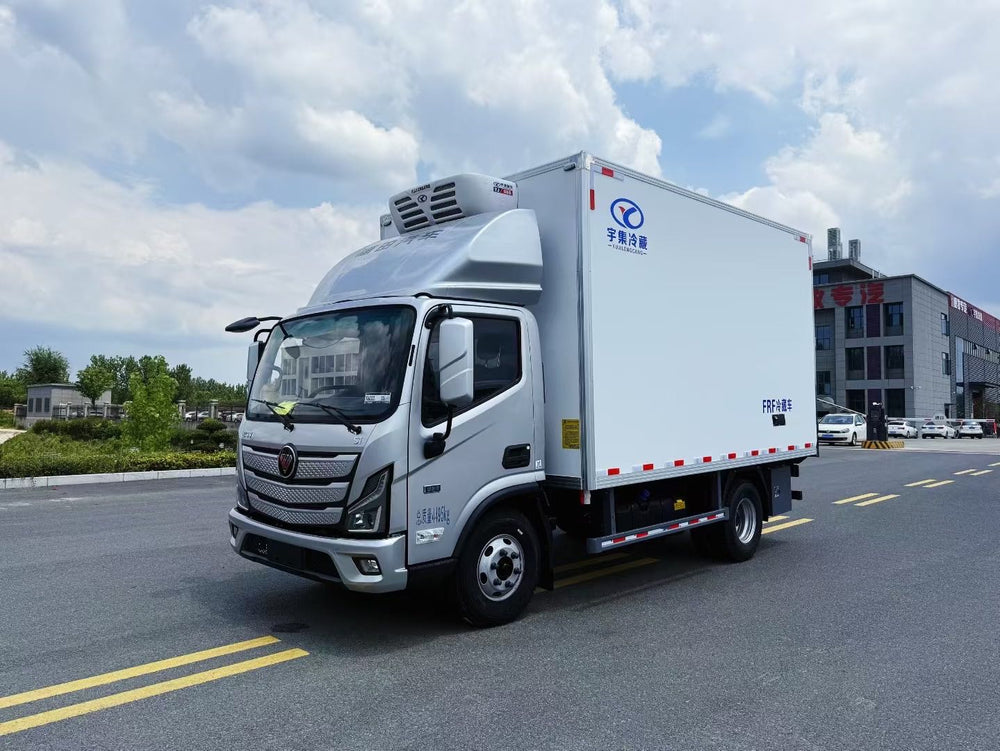

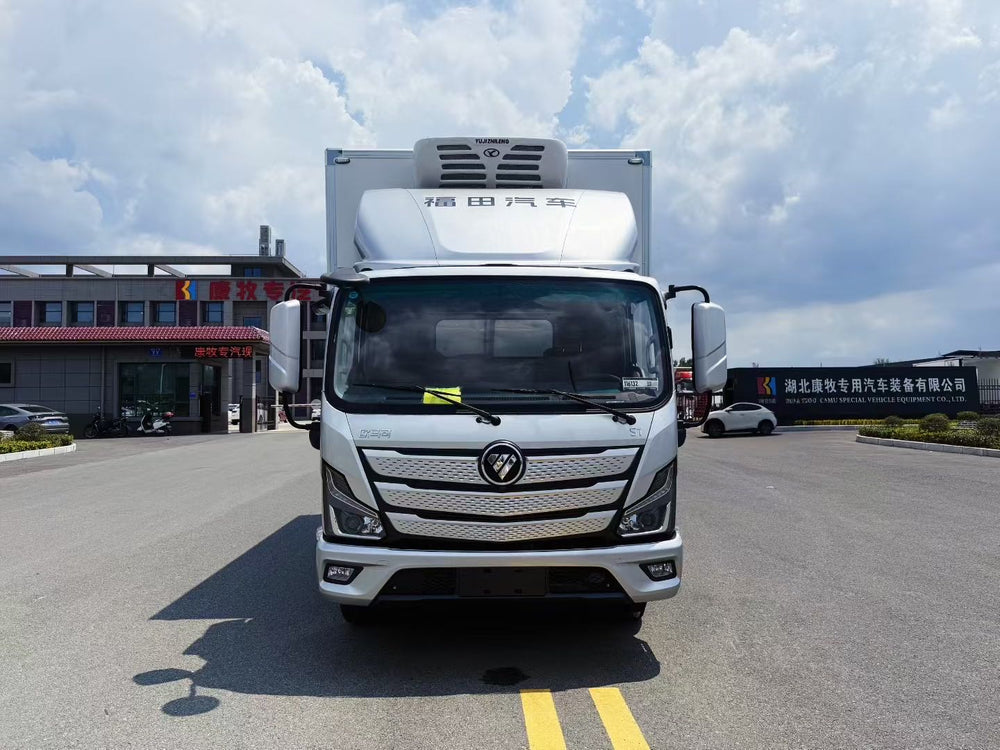

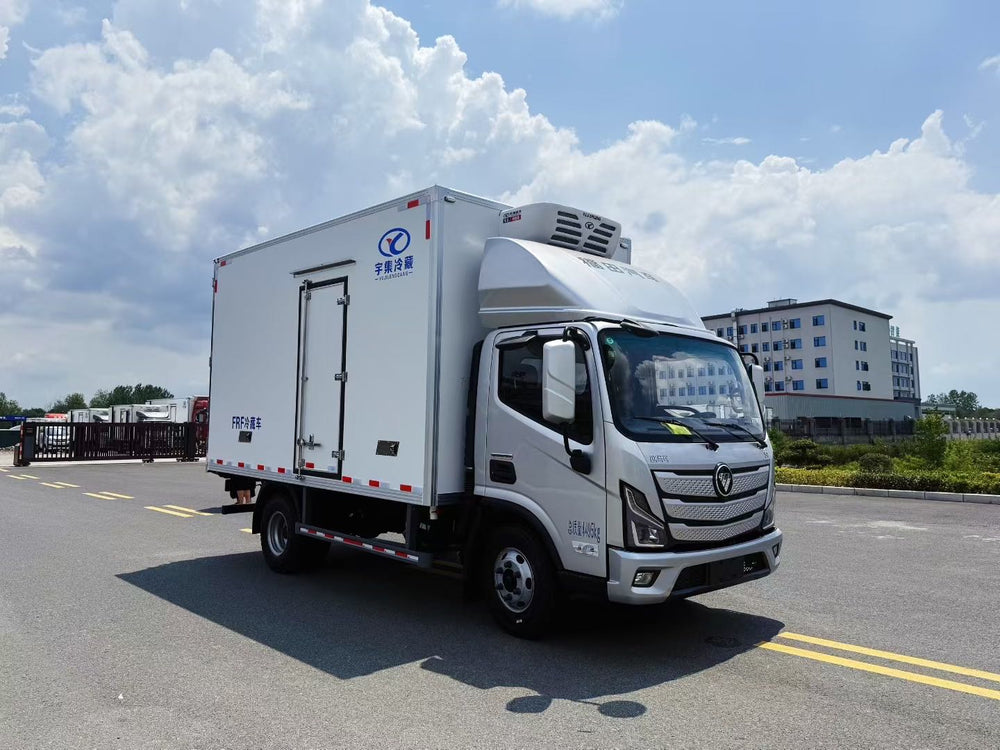

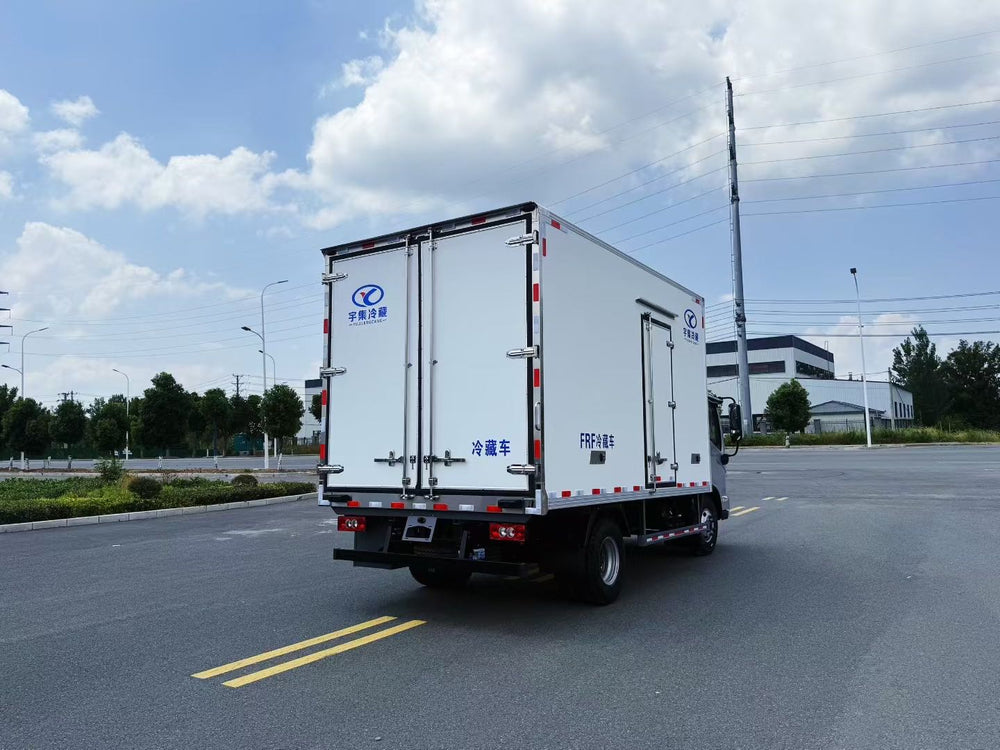

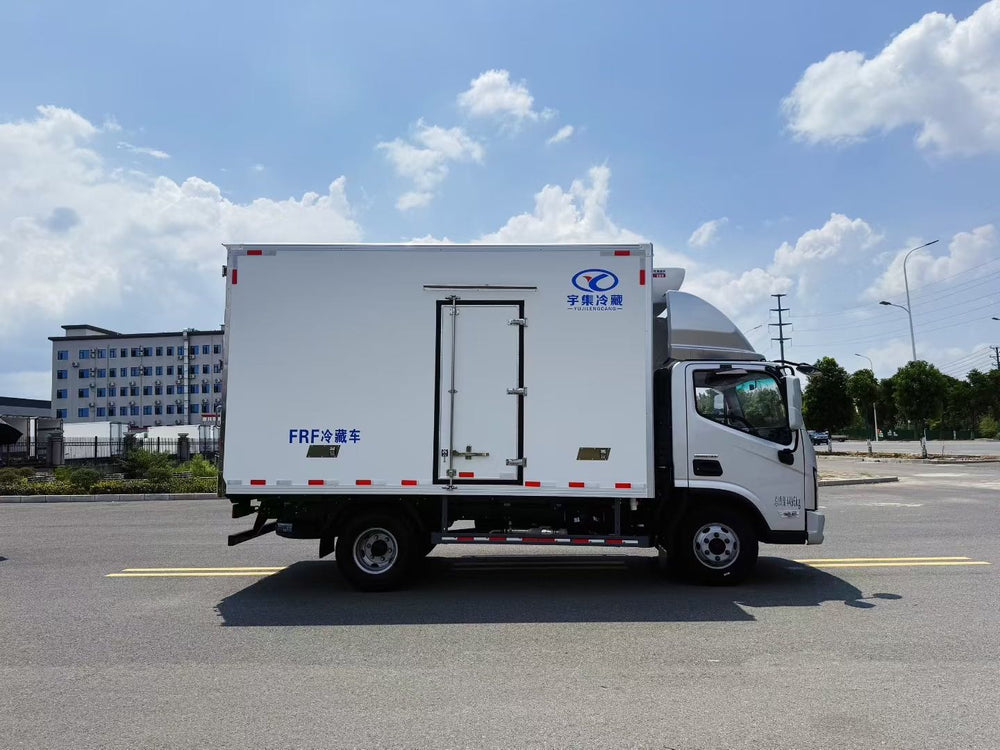

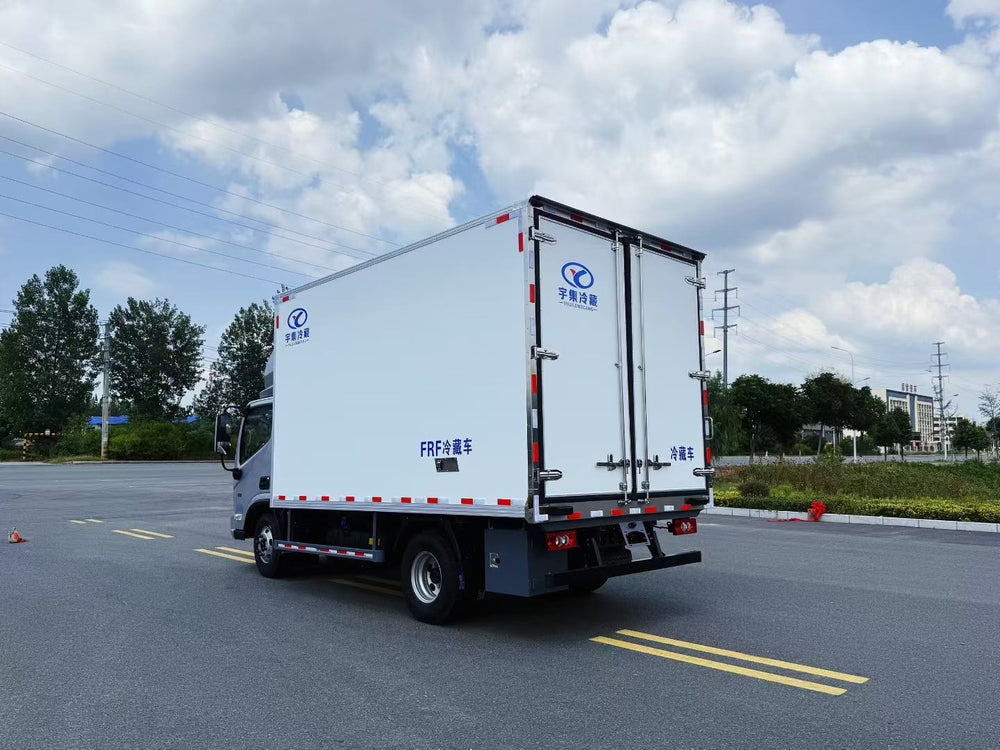

Foton Aumark S1 4.2m Refrigerated Truck（210HP）
| Category | Specification Details |
|---|---|
| 整车基础参数 Basic Chassis | |
| Vehicle Model | BJ5048XLC-FM（National VI, Blue Plate） |
| Overall Dimension | 5995×2560×3450 mm |
| Inner Refrigerated Box | 4080×2350×2300 mm，Volume≈22 CBM |
| Wheelbase | 3360 mm |
| GVW/Curb/Payload | 4495KG / 3220KG / 1125KG |
| Drive | 4×2 RWD, Rear Dual Tyres |
| Fuel | Diesel |
| Max Speed | 115 km/h |
| 发动机 Engine | |
| Model | Cummins F3.0NS6B210 3.0L Inline4 Turbo Diesel |
| Displacement | 2998 cc |
| Power/Torque | 154kW(210HP) / 650N·m（1300-1700rpm） |
| Emission | China National VI (Euro6 Equivalent, SCR+DPF+Urea) |
| Tank | 150L Fuel Tank / 22L Urea Tank |
| 传动与底盘 Transmission & Chassis | |
| Gearbox | ZF 6-speed Manual Aluminum Transmission |
| Brake | Front Disc+Rear Drum, ABS+EBD+Exhaust Brake |
| Tyre | 7.50R16LT All-steel Radial Tire (6pcs) |
| Rear Axle | 6T Rated Load, Final Ratio 4.33（Optional3.7/4.875） |
| Suspension | Front 3-Leaf + Rear 8+6 Multi-leaf Spring |
| 驾驶室 Cabin（2060mm Ultra-wide Single Row） | |

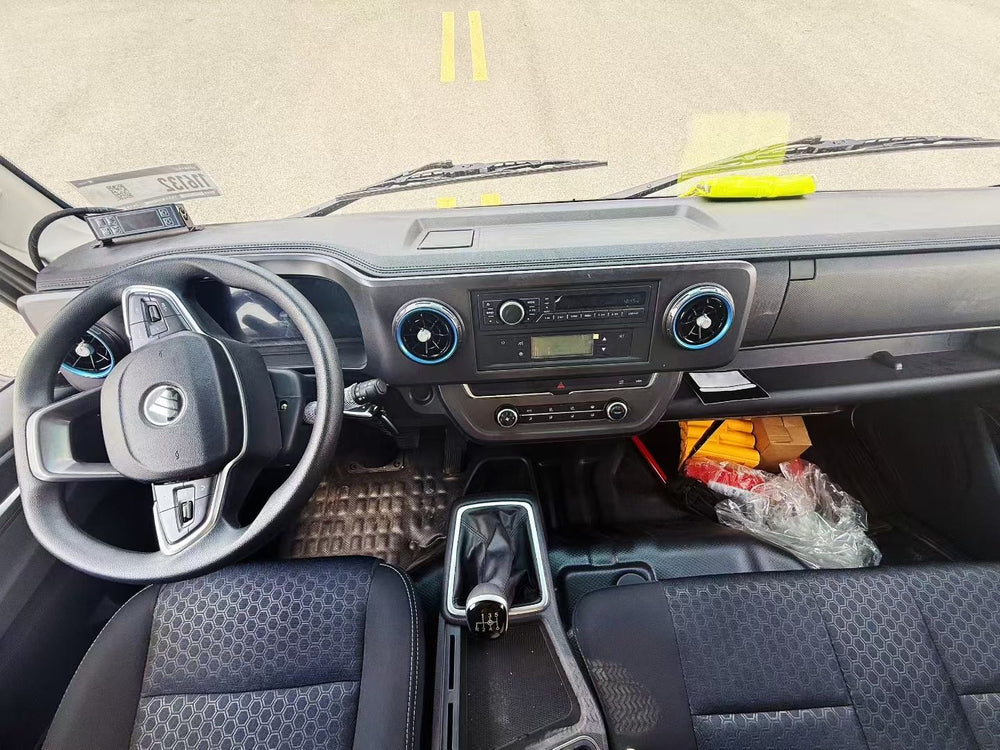

| Standard Equip | Factory A/C, Power Window, Central Lock+Remote Key, Multi-function Steering, Cruise Control, Heated Rearview Mirror, LED DRL, EBP Multi-mode Fuel Saving Switch |
| Optional | Reverse Camera, Android Multimedia Screen |
| 冷藏箱体 Insulated Cargo Box | |
| Craft | Vacuum Integral Sandwich Panel, Grade A PU Insulation |
| Material | Inner&Outer FRP + 80mm High-density PU Foam |
| Floor | Anti-slip Aluminum Checkered Plate |

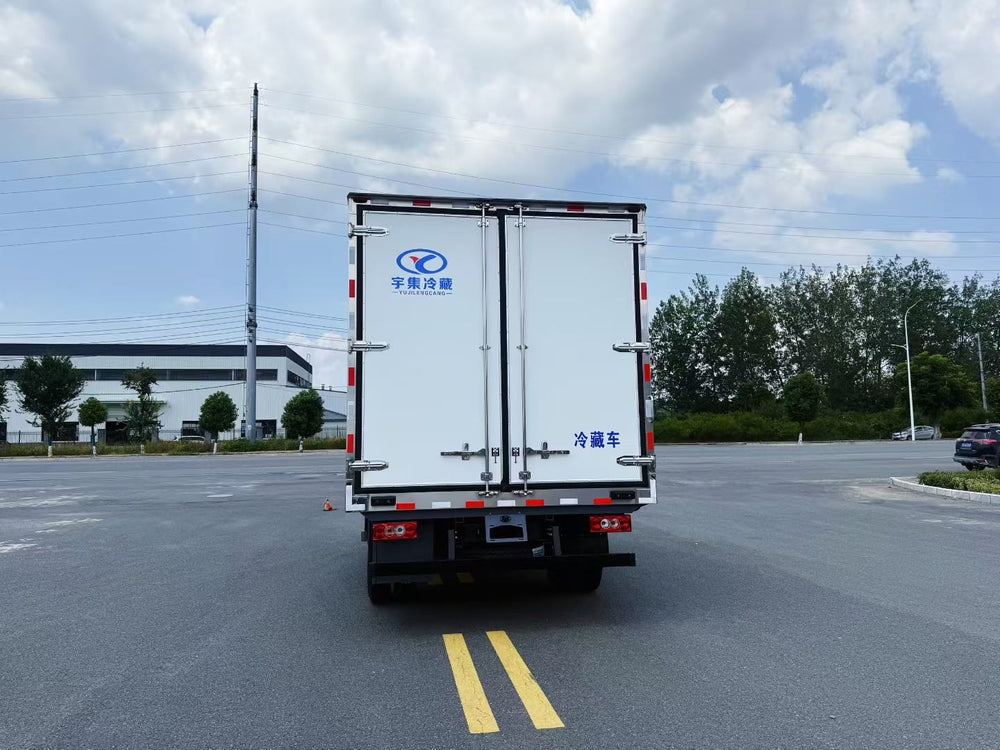

| Standard Fitting | Aluminium Wrap Edge, Stainless Steel Hinge&Lock, Labyrinth Seal, Inner LED Lamp, Rear Double Door |
| Optional Upgrade | Side Service Door, Full Air Duct Floor, Meat Hanging Rails |
| 制冷机组 Refrigeration Unit | |
| Standard | Domestic Independent PTO Cooling Unit |
| Import Option | Carrier / Thermo King Engine-driven Unit |
| Temp Range | -18℃ ~ +15℃ adjustable, R404A refrigerant |
