FOTON XIANGLING M1 STRUGGLE EDITION REFRIGERATED TRUCK SPECIFICATION TABLE
| Category | Item | Specification |
|---|---|---|
| Chassis Basic Parameters | Complete Vehicle Model | BJ5031XLC5JV4-61 |
| Chassis Model | BJ1031V5JV4-51 | |
| Cab Type | Single Row Cab | |
| Wheelbase | 2750 mm | |
| Overall Dimension (L×W×H) | 5070×1740×2490 mm | |
| Gross Vehicle Weight (GVW) | 3495 kg | |
| Curb Weight | 1750 kg | |
| Rated Payload | 1615 kg | |
| Drive Mode | 4×2 Rear Dual Wheel | |
| Tire Specification | 175R14LT 8PR Vacuum Tire | |
| Rear Axle Ratio | 4.875 | |
| Powertrain System | Engine Model | DAM16KL (Dongan Harbin) |
| Displacement | 1.6L / 1597cc Gasoline | |
| Max Power | 90kW (122HP) | |
| Max Torque | 158N·m | |
| Emission Standard | China National VI (Euro 6) | |
| Transmission | 5-speed Manual DAT18R Gearbox | |
| Fuel Type | Gasoline | |
| Standard Cab Configuration | Steering System | Electronic Power Steering |
| Brake System | Hydraulic Brake with ABS | |
| Air Conditioning | Factory Original A/C | |
| Window | Power Window | |
| Door Lock | Central Lock with Remote Key | |

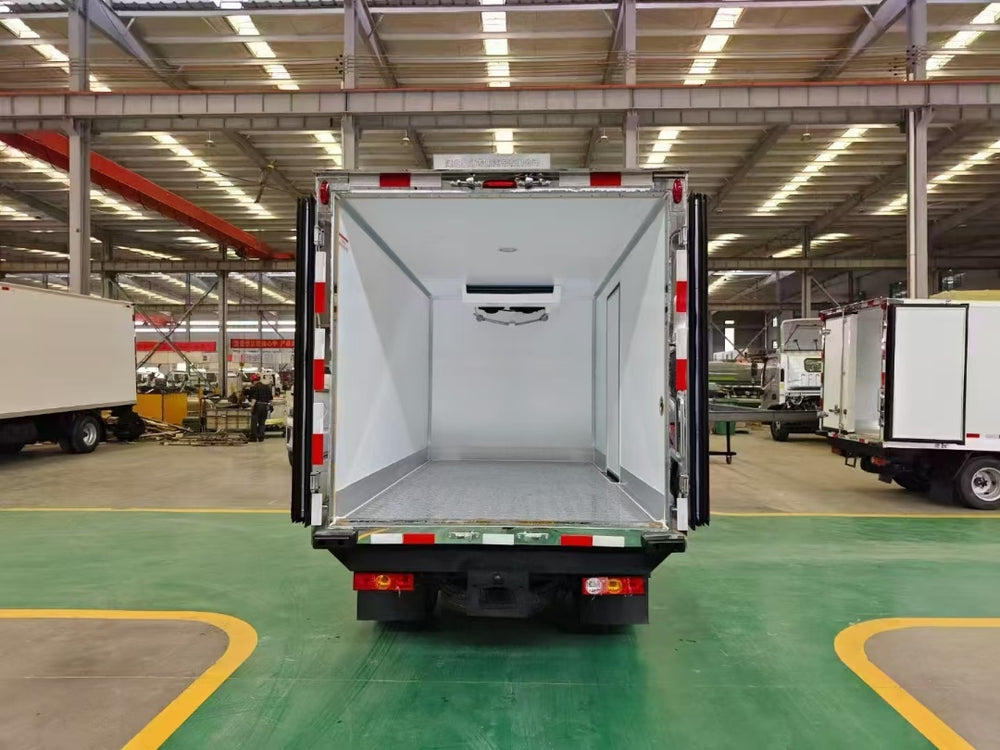

| Insulated Refrigerated Cargo Box | Inner Cargo Dimension (L×W×H) | 3120×1580×1560 mm |
| Box Volume | ≈7.7 CBM | |
| Box Panel Material | Inner & Outer FRP + 80mm High Density PU Insulation | |
| Floor Material | Anti-slip Pattern Aluminum Plate | |
| Edge & Fittings | Aluminum Alloy Wrapping, Stainless Steel Lock & Hinge | |

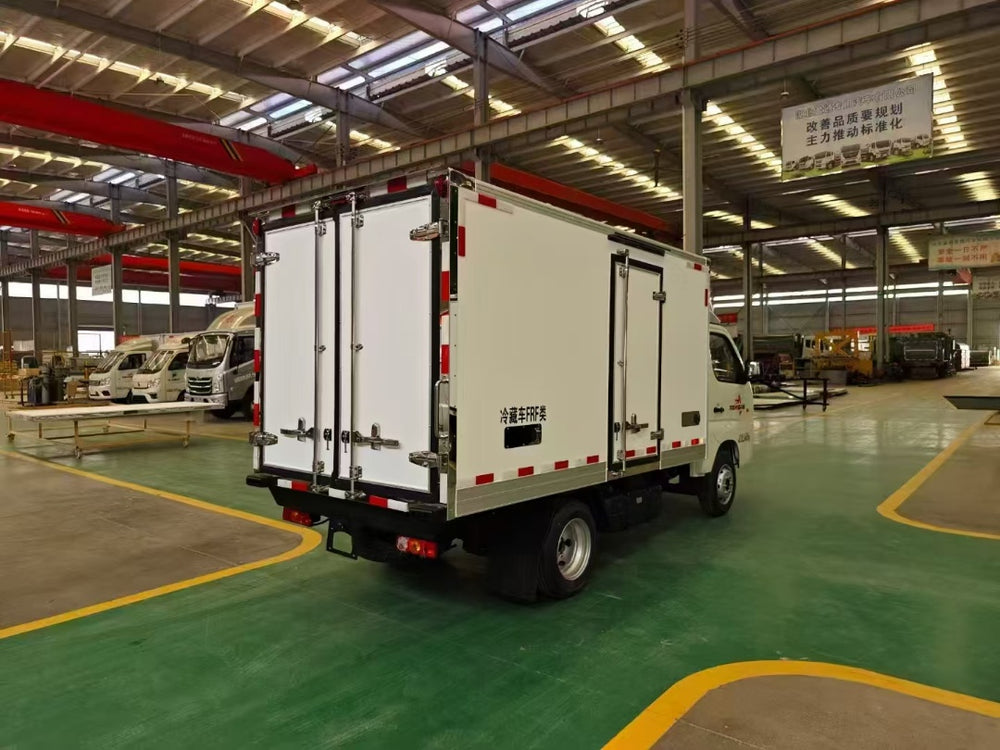

| Door Design | Rear Double Door + Right Side Single Door, Labyrinth Sealing Rubber Strip | |
| Optional Refrigeration Unit | Domestic Economy Unit | Kaixue / Hanxue, Temperature Range: -5℃ ~ -15℃ |
| Import Premium Unit | Carrier / Thermo King, Temperature Range: -18℃ ~ +25℃ | |
| Optional Extra Fittings | Available Accessories | Meat Hook Rail, Air Duct, Digital Temperature Recorder |
