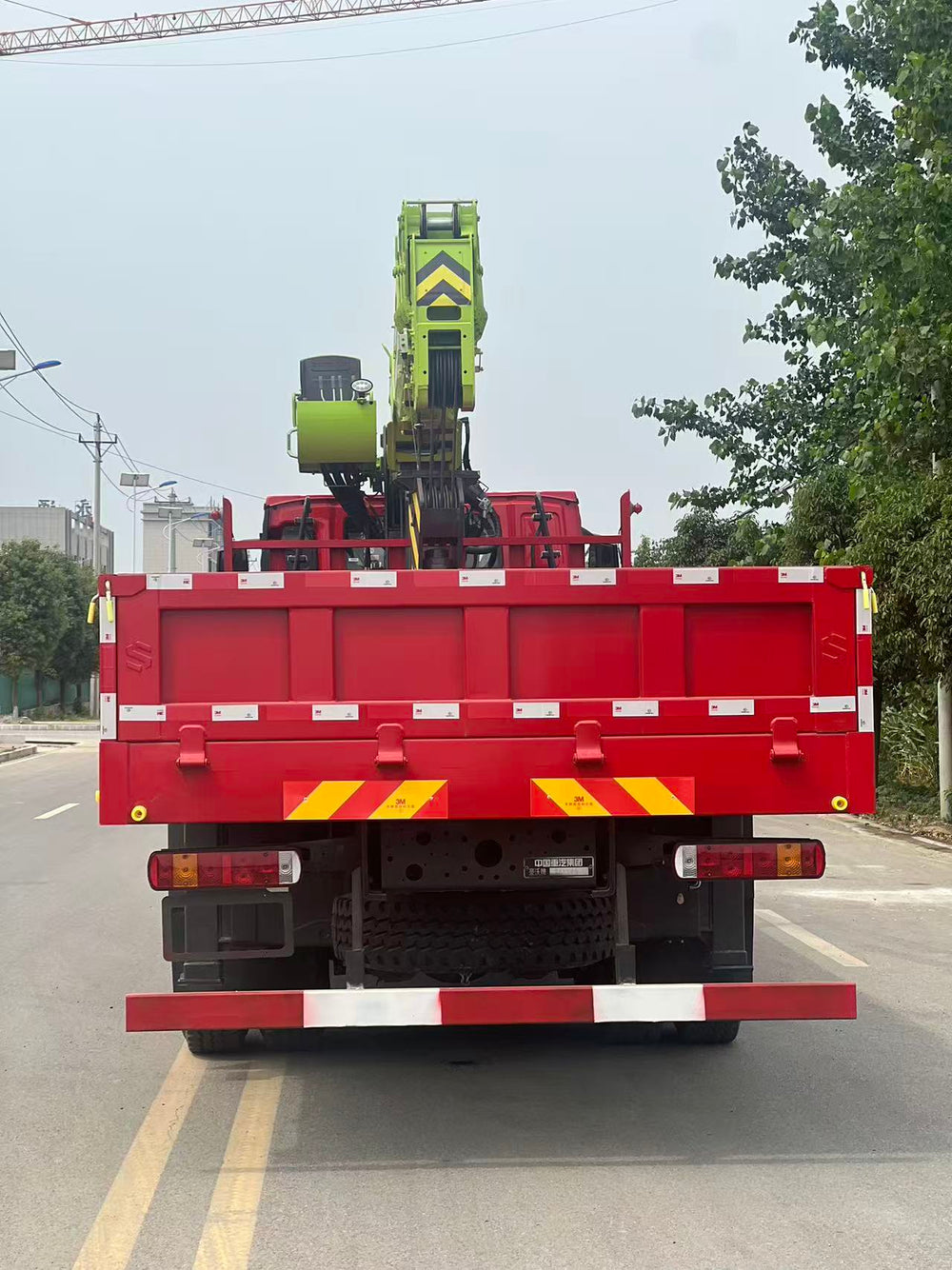

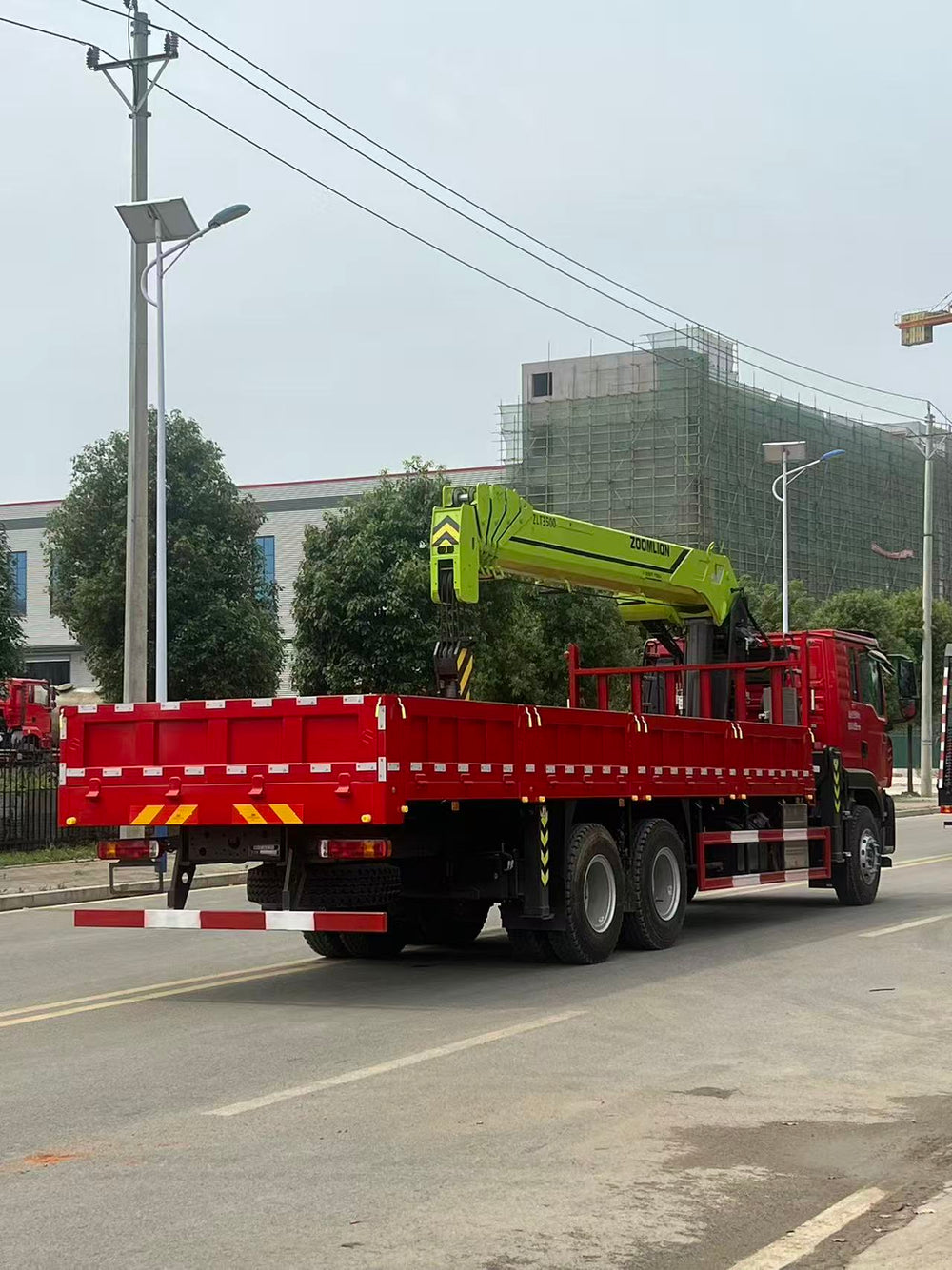

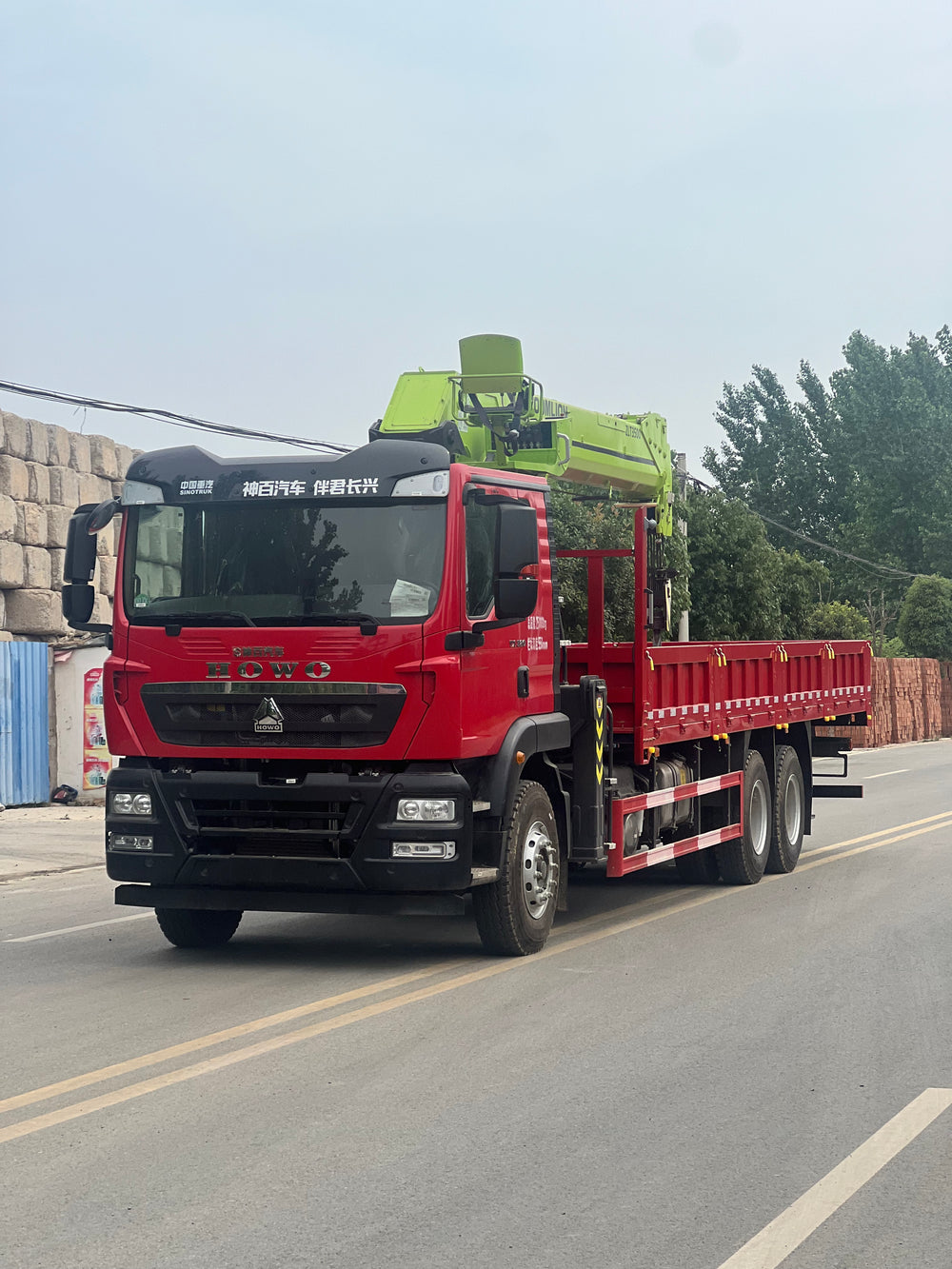

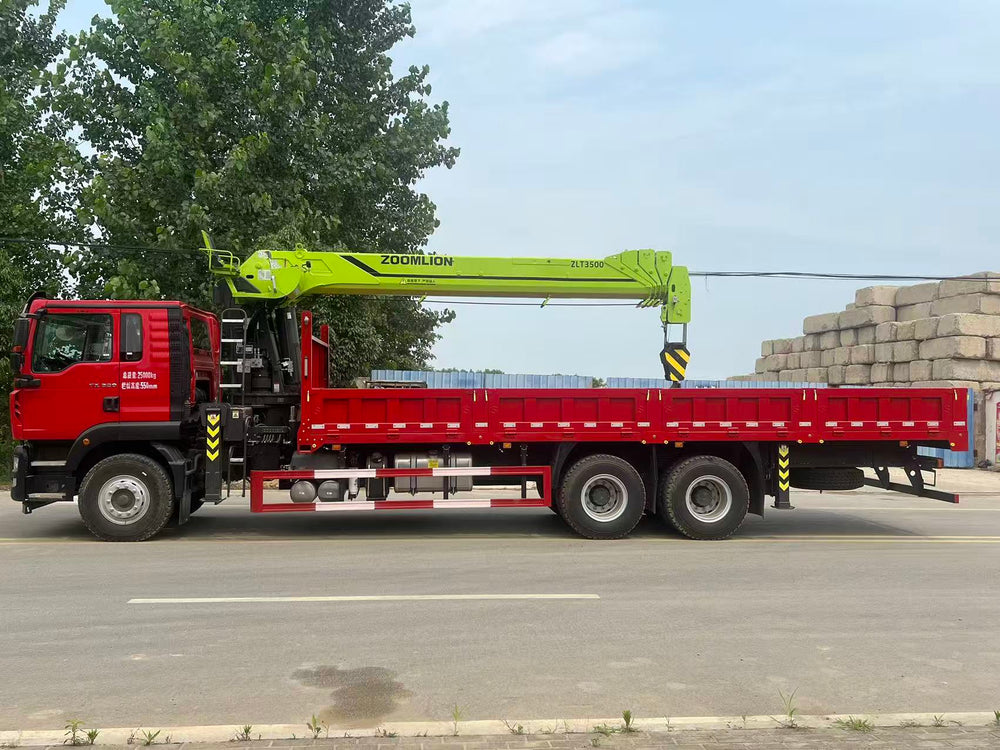

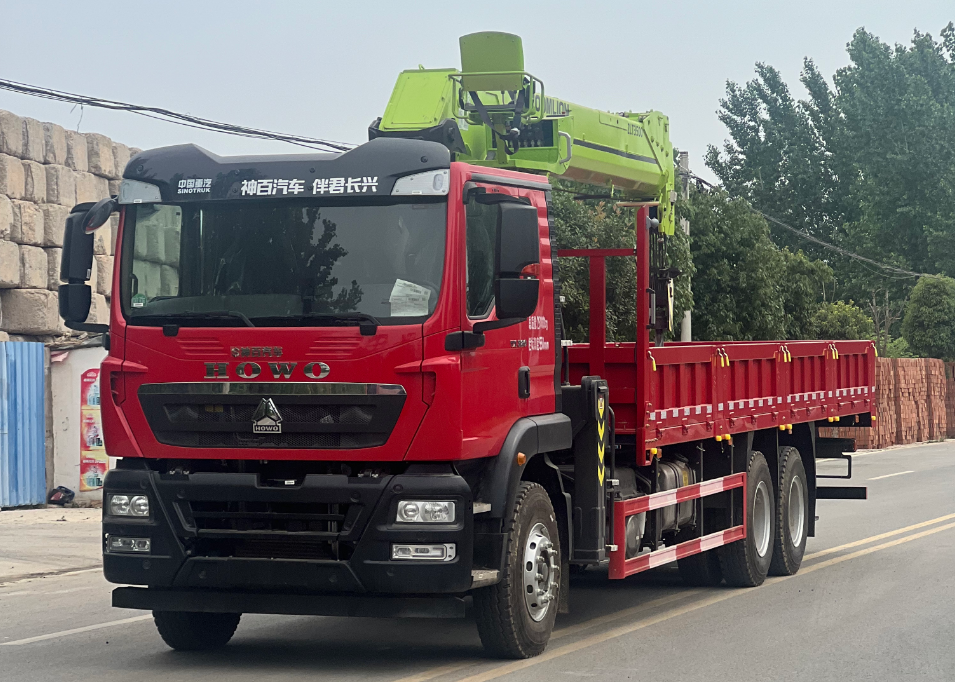

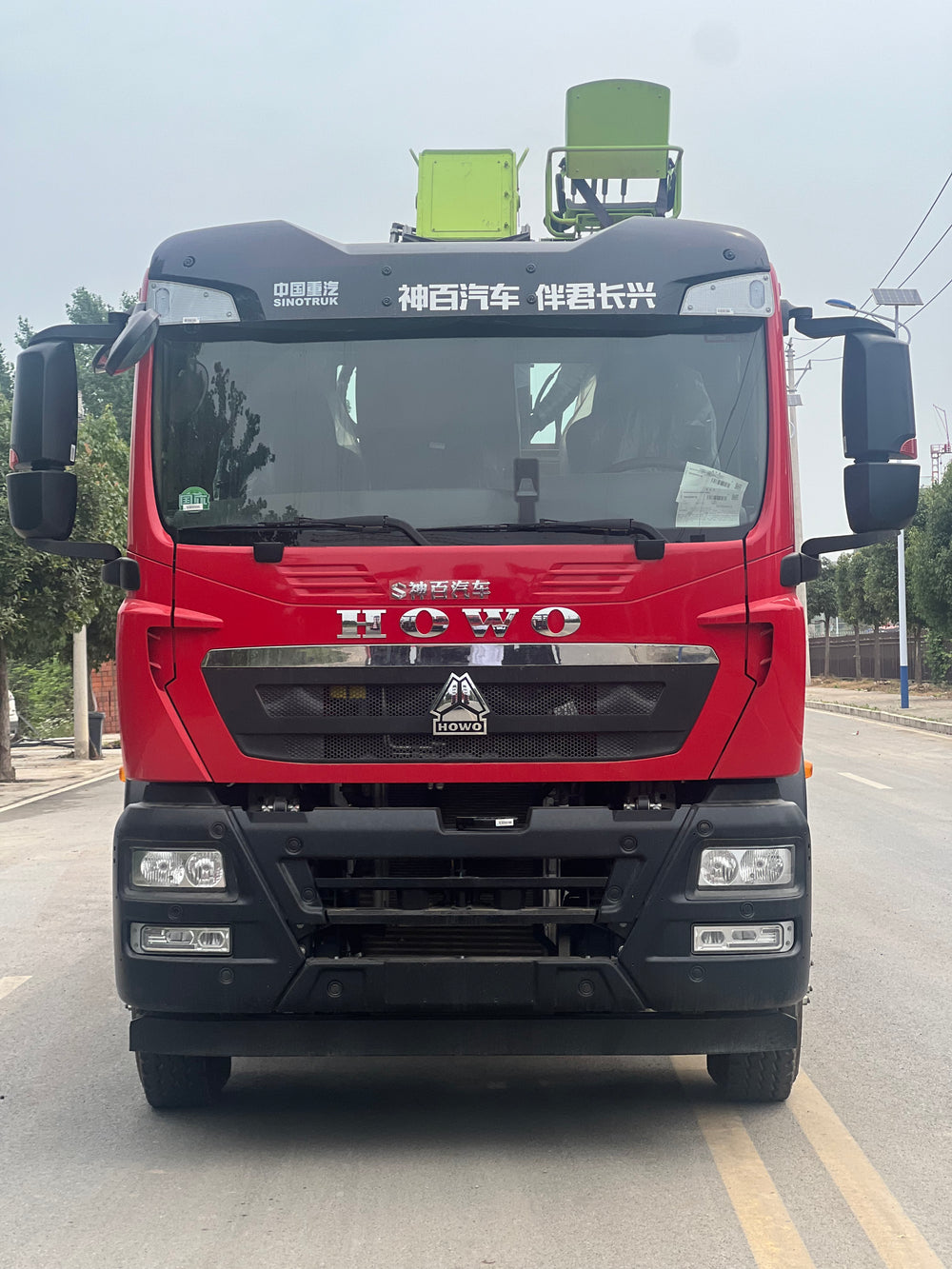

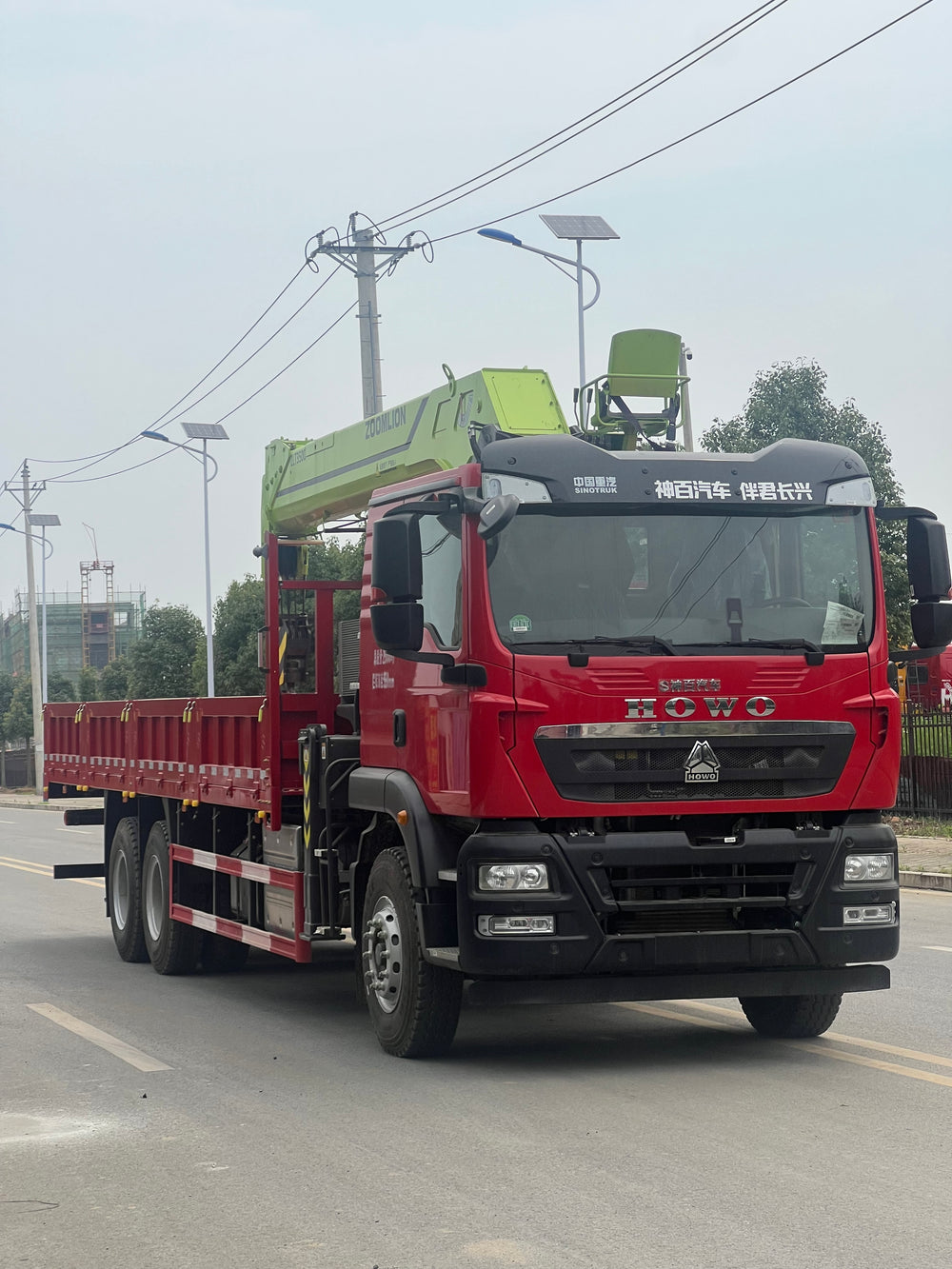

HOWO TX 6×4 - Zoomlion 14 Ton 5-Section Boom Truck Mounted Crane
| Category | Item | Specification |
|---|---|---|
| Chassis | Model | SINOTRUK HOWO TX 6×4 Rear Eight Wheels, China VI b |
| Engine | Weichai WP7H320E62, 320HP, 7.0L, 1400N·m, Euro 6 | |
| Gearbox | SINOTRUK 9-speed Manual (HW13709XSTC) | |
| Cab | TX Sleeper Cab, 4-point suspension, air seat, A/C | |
| Axles | Front 7.5T×2, Rear 13T×2 with differential locks | |
| Frame | 3-layer straight beam 300mm (8+5+5mm) | |
| Wheelbase | 5825+1350mm | |
| Tires | 11.00R20 18PR | |
| Fuel Tank | 300L aluminum alloy | |
| Cargo Box | 6100/8400×2450×550mm, 3mm side/5mm bottom | |
| Crane (Zoomlion) | Model | Zoomlion 14T 5-section boom (2nd single extension) |
| Max Lifting | 14T @ 3m radius; 4.95T full extension | |
| Boom Length | 5-section, 20–21m full length | |
| Lifting Height | 21.5–23m | |
| Working Radius | 19.6–20m | |
| Outriggers | Front double H-type, max span 8m; rear double legs | |
| Hydraulic System | Dual gear pump, 21–28MPa, with radiator | |
| Control | Upper + wireless remote, load moment limiter | |
| Vehicle | Overall Size | ~10500×2550×3850mm |
| Curb Weight | ~17.5–18.5T | |
| GVW | 25T (6×4 legal limit) | |
| Max Speed | 90km/h | |
| Application | Construction, equipment installation, tree transplanting | |
| Price (Jun 2026) | ~420,000–460,000 RMB |
