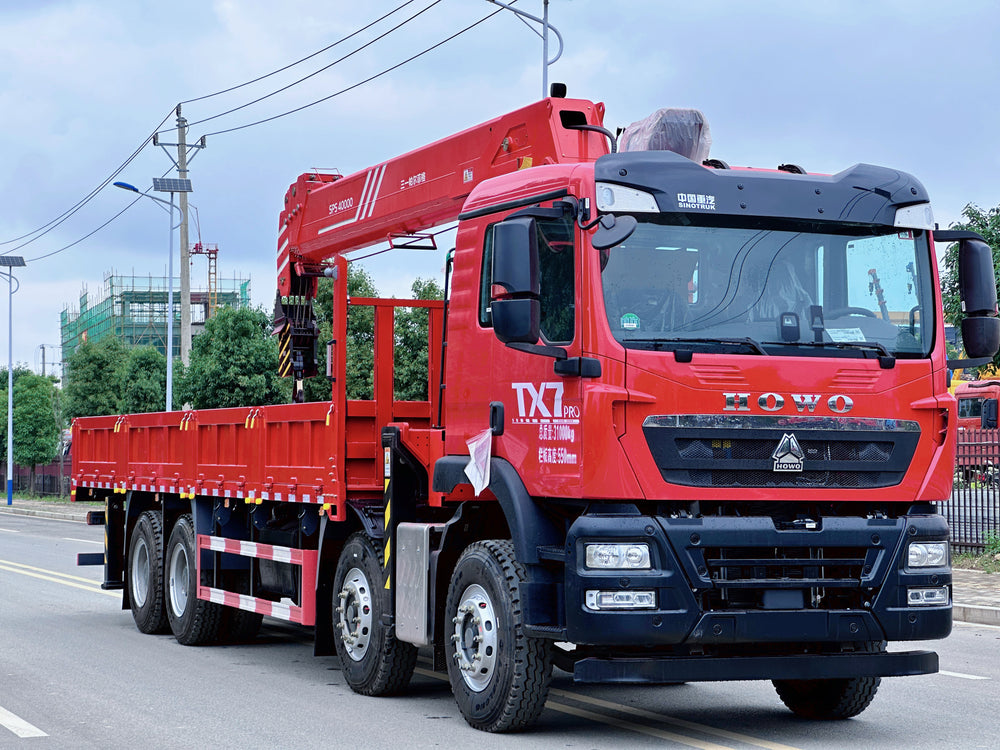

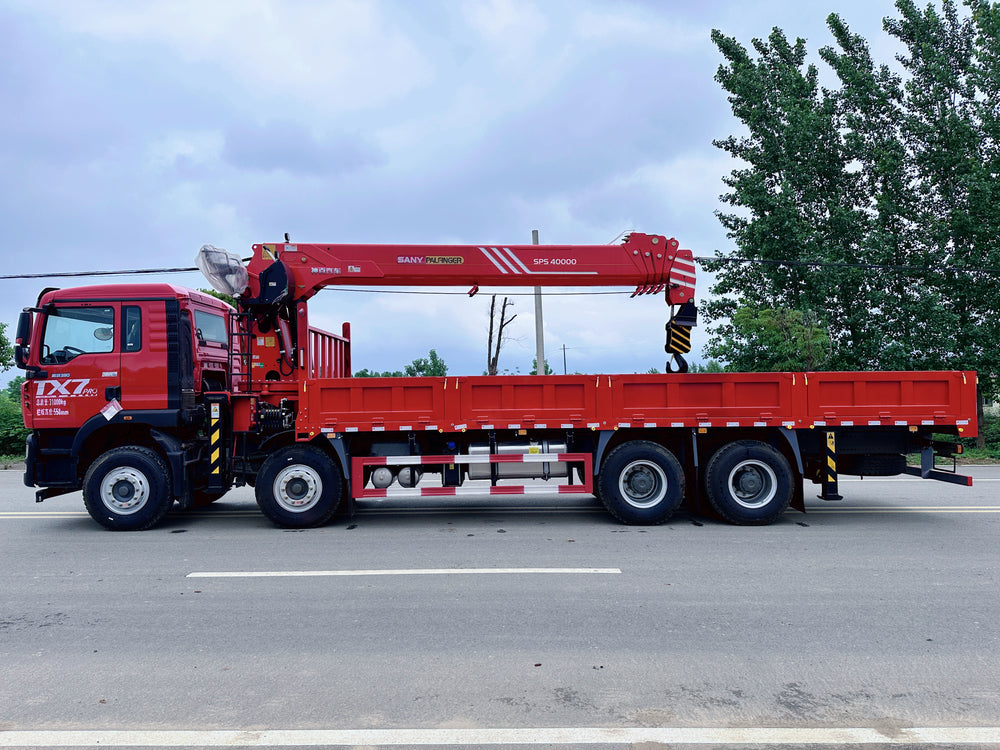

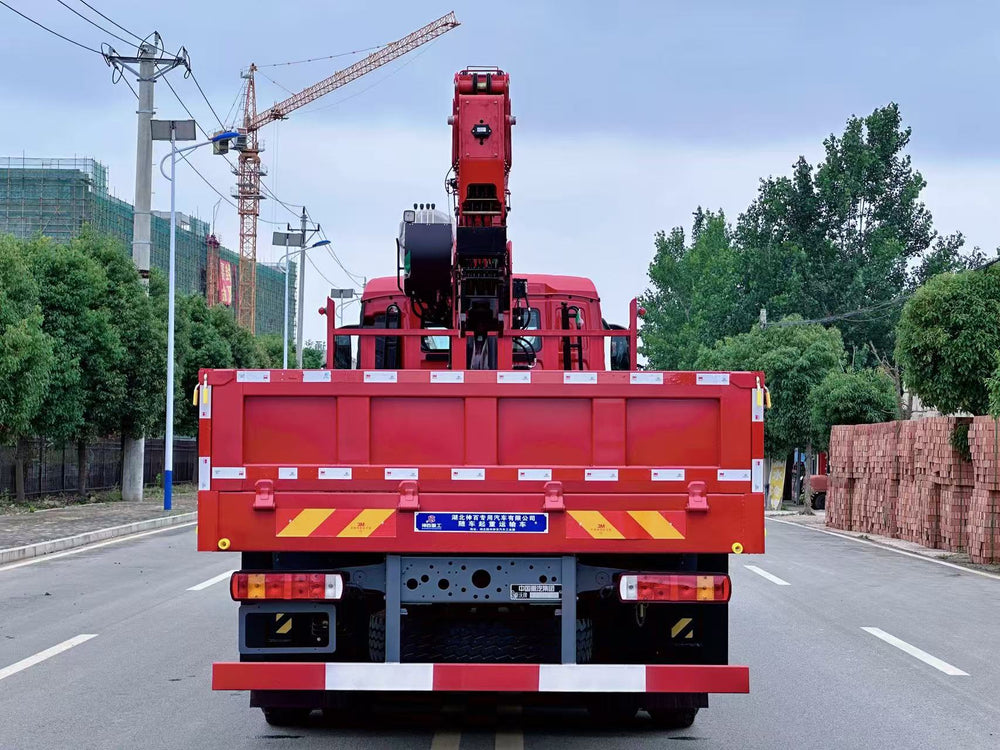

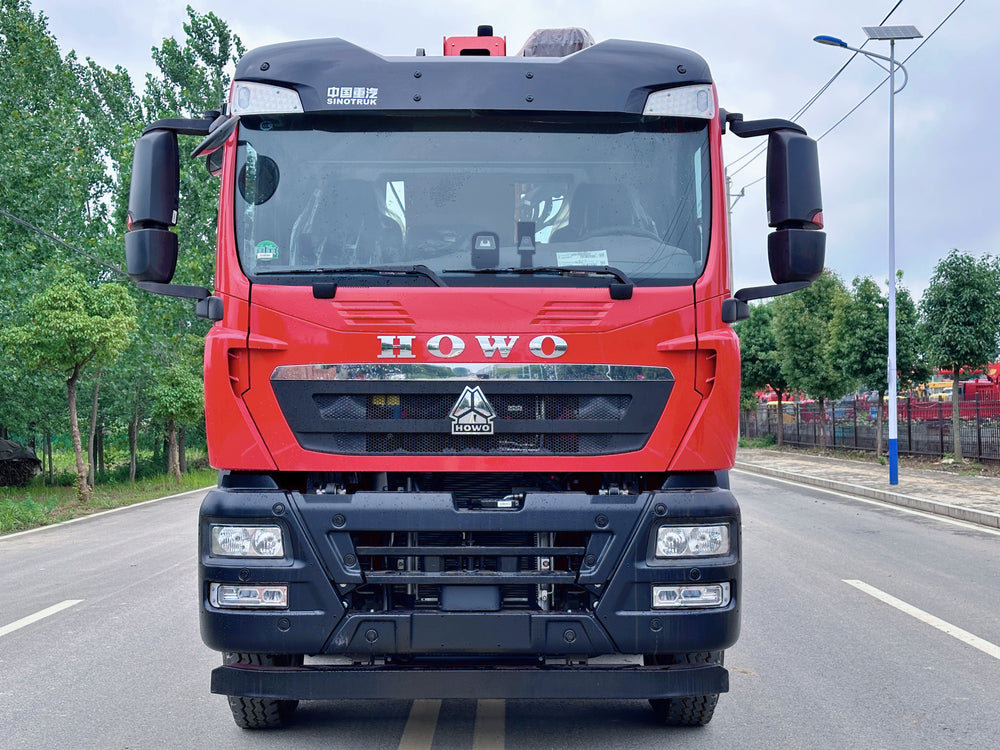

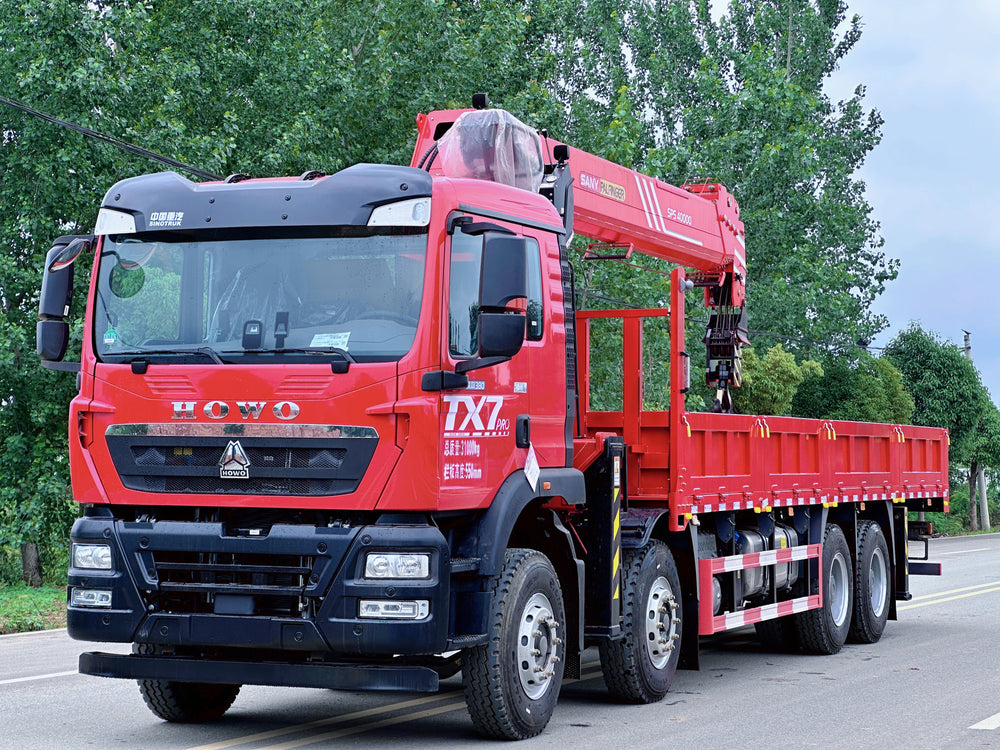

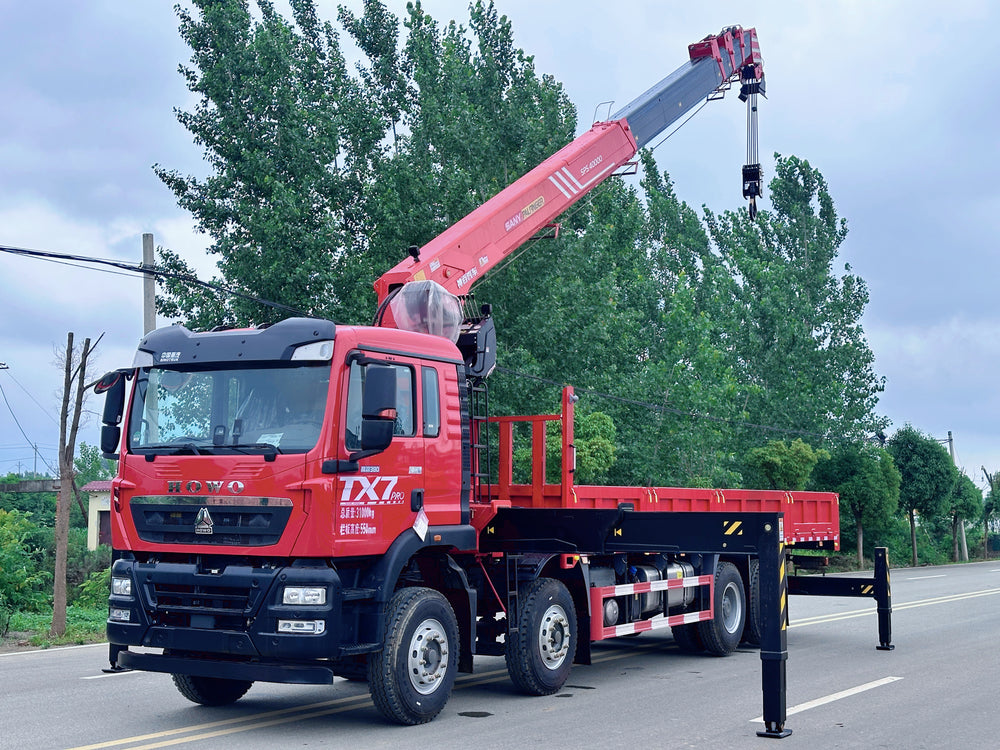

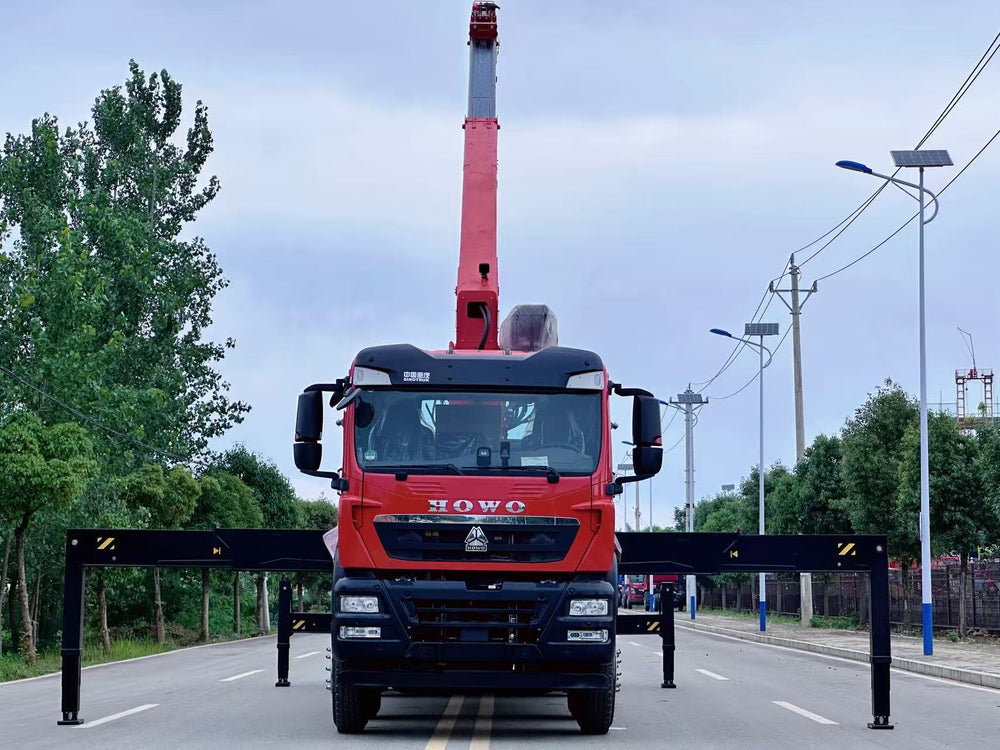

SINOTRUK HOWO 8×4 | Weichai 380HP | SANY 16 Ton 5-Section Crane
| Category | Item | Specification |
|---|---|---|
| Basic Information | Vehicle Model | SINOTRUK HOWO 8×4 Truck Mounted Crane |
| Drive Type | 8×4 (Front Four Axle, Rear Four Axle) | |
| Power System | Engine | Weichai 8L Series, 380 HP |
| Transmission | 10-speed Synchronized Gearbox | |
| Power Take-off | Flange Type PTO | |
| Emission Standard | China VI | |
| Chassis Parameters | Wheelbase | Customized for 8×4 heavy duty |
| Front Axle | 7.5 Ton Reinforced Axle | |
| Rear Axle | 13 Ton Reinforced Axle with Differential Lock | |
| Frame | Heavy-duty Three-layer Through Frame | |
| Leaf Spring | Standard Multi-leaf Spring | |
| Tire | 12.00R20 Mixed Tread, 18PR | |
| Fuel Tank | 400L Aluminum Alloy Fuel Tank | |
| Speed Limit | 89 km/h | |
| Braking System | ABS (4S/4M) | |
| Cab Configuration | Cab Type | Semi-sleeper Cab |
| Cab Suspension | 4-point Full Floating Suspension | |
| Seat | Air Suspension Driver Seat + Co-pilot Seat | |
| Mirrors | Electric Adjustable & Heated Rearview Mirrors | |
| Steering Wheel | Multifunctional Steering Wheel | |
| Monitoring System | Vehicle Intelligent Management System | |
| Crane Equipment | Crane Brand & Model | SANY 16 Ton, 5-section Telescopic Boom |
| Max Lifting Capacity | 16 Ton | |
| Max Boom Length | 21.6 m | |
| Max Lifting Height | 23 m | |
| Operation Mode | Top Operation | |
| Slewing Mechanism | Planetary Single Slewing | |
| Outrigger | Double-section Composite Outriggers | |
| Accessories | Full-length Subframe, Radiator, Overload Protection Device | |
| Cargo Box | Cargo Box Type | Heavy Engineering Cargo Box |
| Structure | 3-layer Side Panels, 5-layer Floor Panels | |
| Core Advantages | Powertrain | Integrated engine, transmission and axle design, stable power output |
| Safety & Comfort | Crash-resistant cab, shock absorption structure and comfortable seats | |
| Load Performance | Reinforced chassis, strong bearing capacity and torsion resistance | |
| Lifting Performance | SANY crane with stable operation and wide working range |
