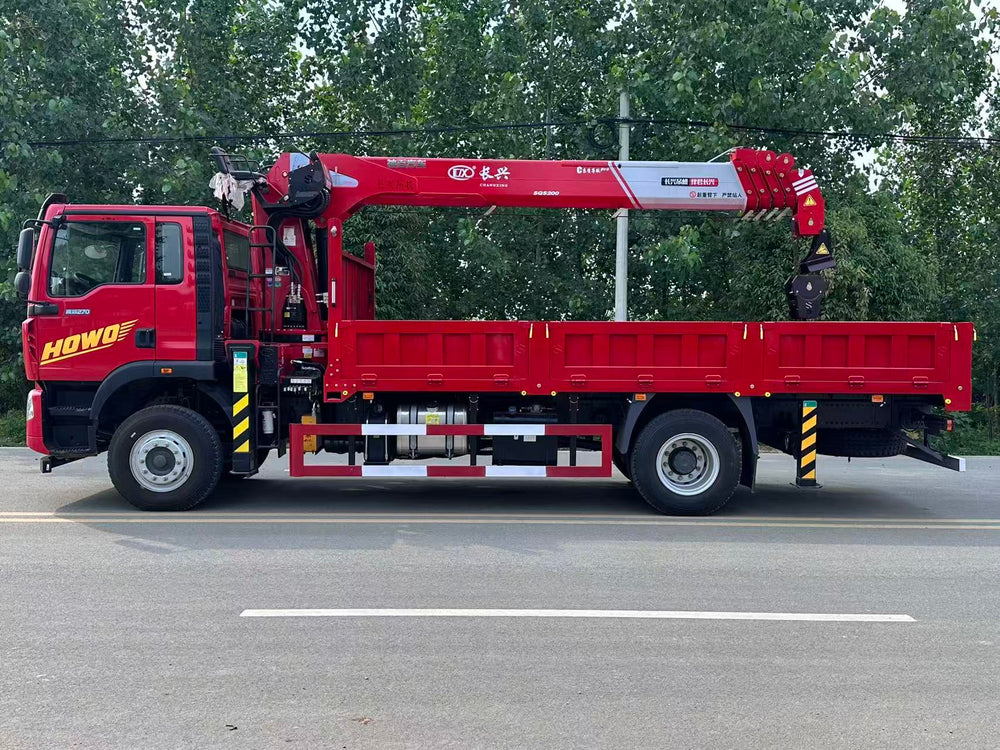

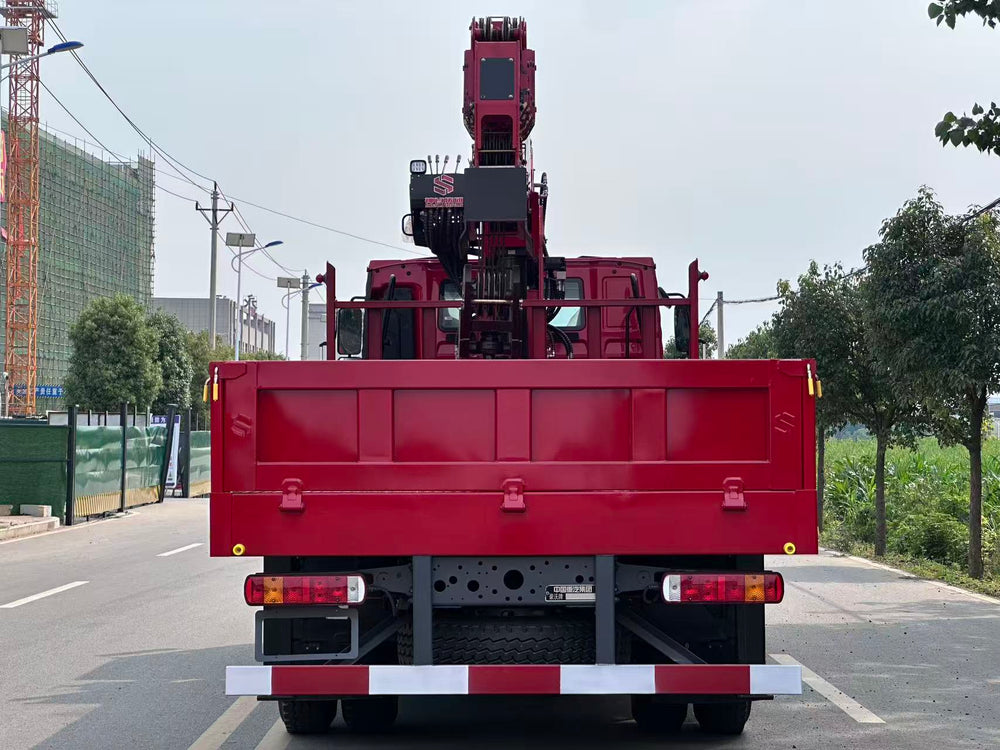

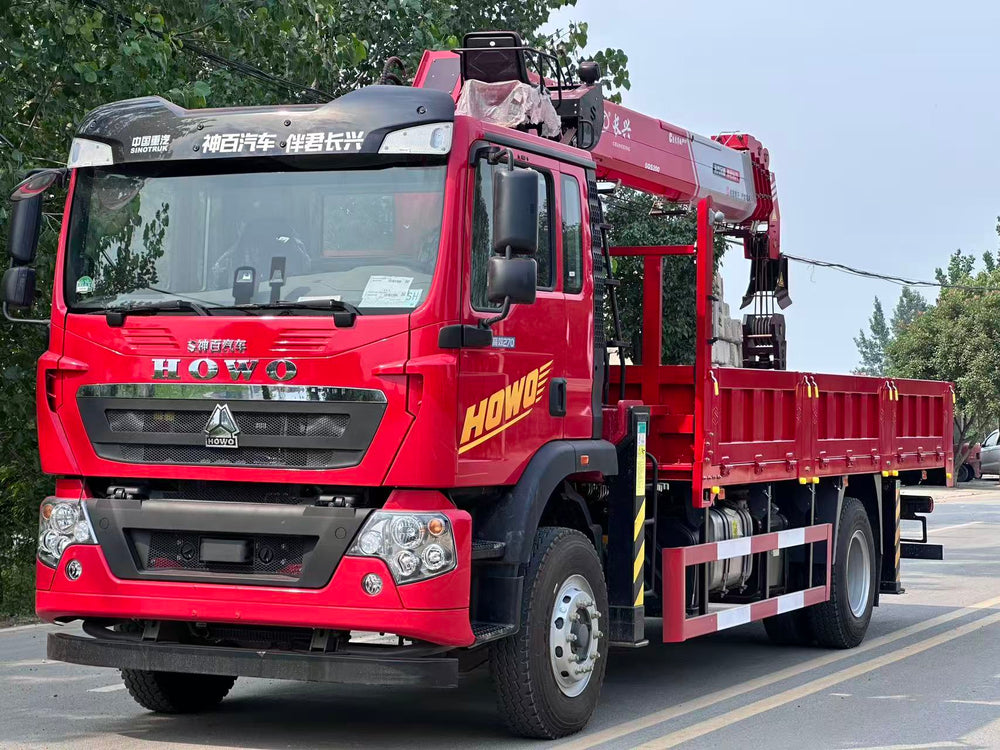

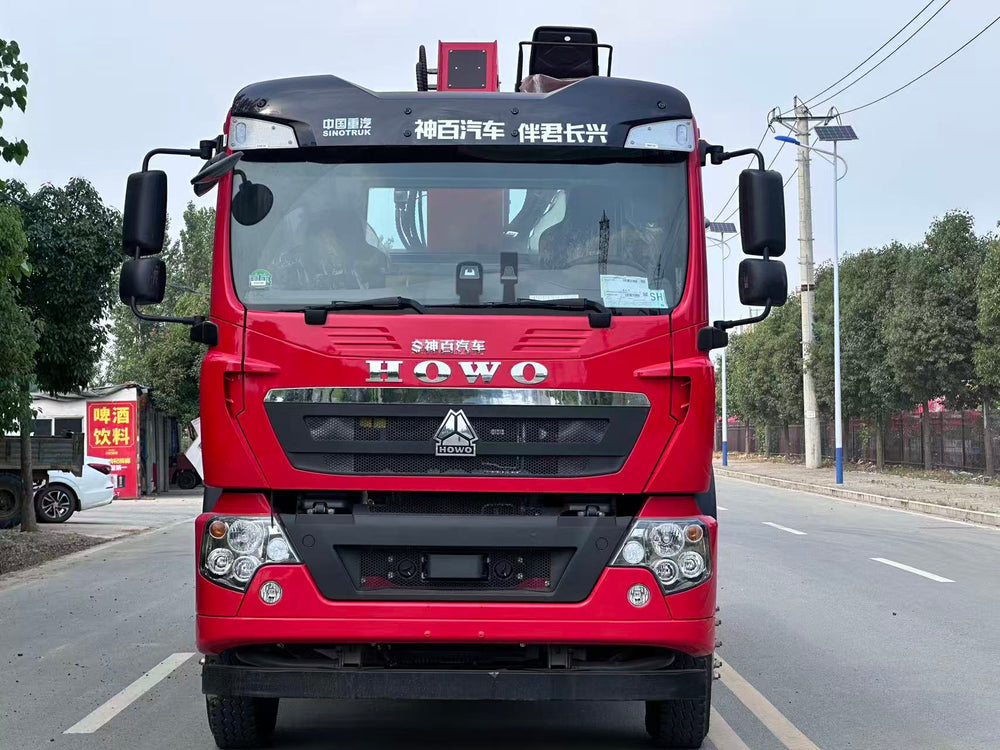

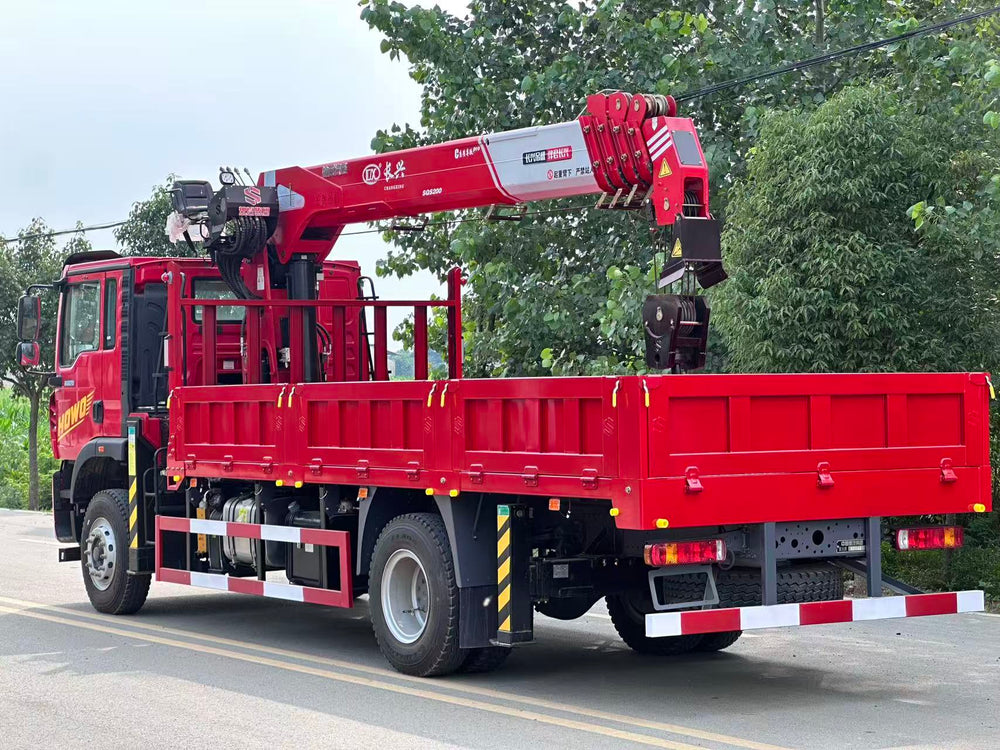

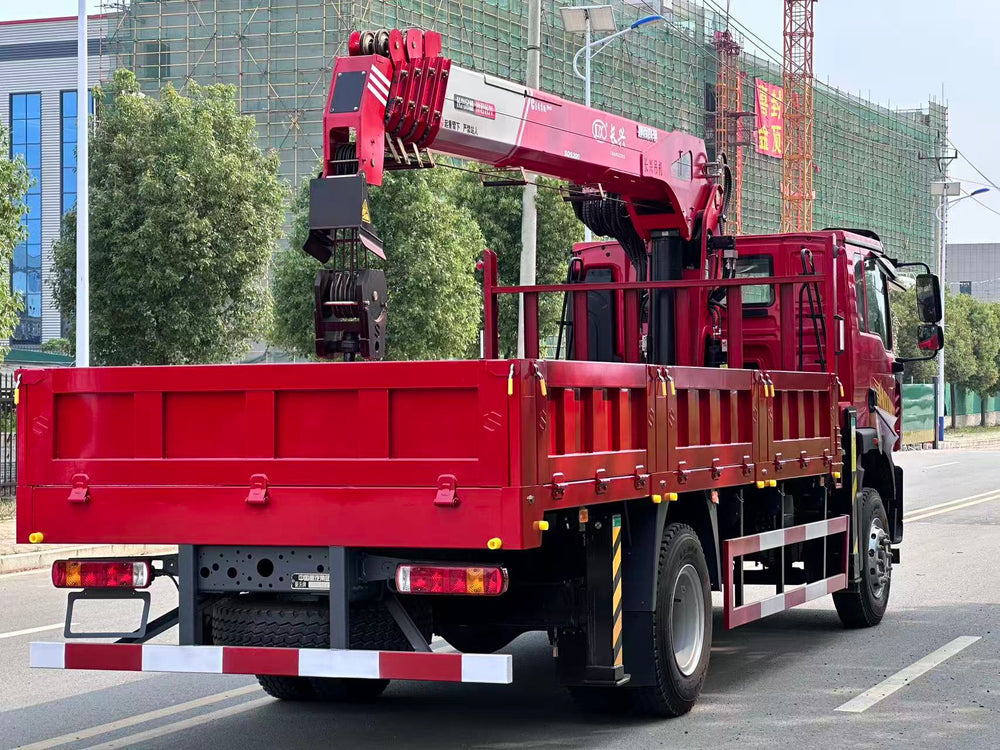

SINOTRUK HOWO TX 4×2 | Weichai 270HP | Changxing 8T 5-section Boom Crane
| Category | Item | Specification |
|---|---|---|
| Basic Info | Chassis Model | ZZ5187JSQK501GF1 |
| Drive Type | 4×2 (Single Rear Axle) | |
| Gross Vehicle Weight | 18,000 kg | |
| Power System | Engine Model | Weichai WP6H270E61 / WP7H270E62 |
| Rated Power | 270 HP (199 kW) | |
| Displacement | 6.2 L / 6.8 L, 6-cylinder | |
| Emission Standard | China VI (Euro VI equivalent) | |
| Max Torque | 1,100 N·m @ 1200–1500 rpm | |
| Transmission | SINOTRUK HW85508STC2 8-speed | |
| Power Take-off | HW45ZC Flange-type PTO, cable control | |
| Final Drive Ratio | 5.29 | |
| Chassis | Wheelbase | 5,000 mm |
| Front Axle | 6.5 Ton / 7.1 Ton | |
| Rear Axle | 13 Ton reinforced axle | |
| Frame | 3-layer (8+5+5) / 300 mm width | |
| Leaf Spring | Front 10 pcs / Rear 12 pcs | |
| Tire | 10.00R20, 18PR, mixed tread | |
| Fuel Tank | 200L aluminum alloy | |
| Braking | ABS (4S/4M), air brake | |
| Speed Limit | 89 km/h | |

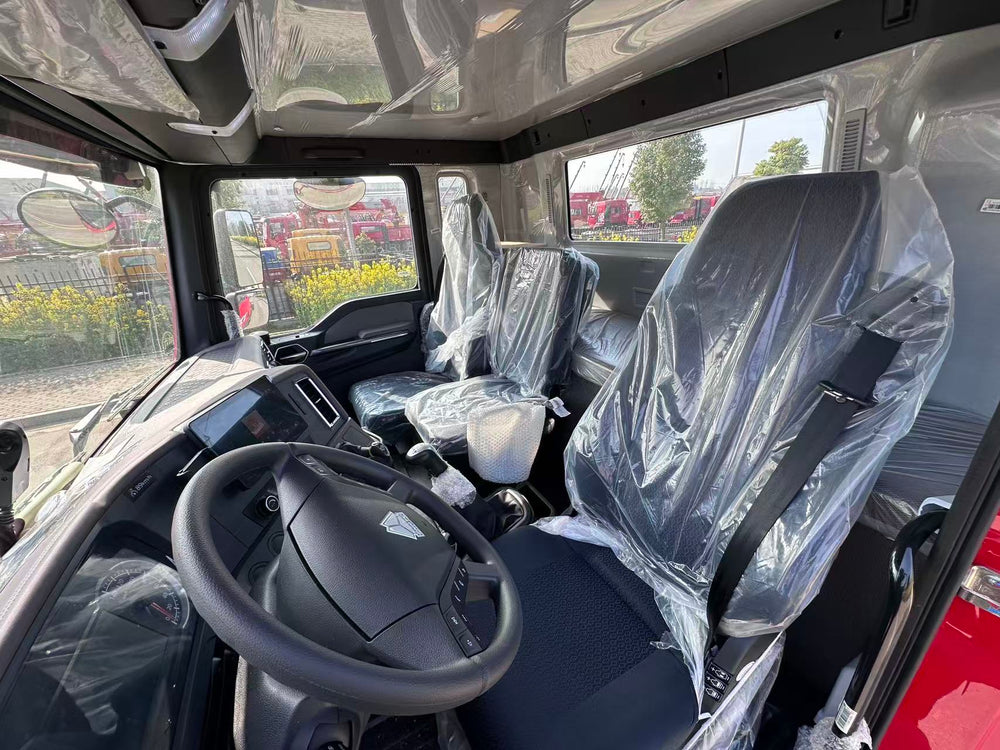

| Cab | Cab Type | TX-MATE-K Sleeper Cab (MAN design) |
| Suspension | 4-point suspension | |
| Seats | Air suspension driver seat + 3-seat layout | |
| Features | A/C, multifunction steering wheel, electric heated mirrors, central lock | |
| Crane (Changxing) | Model | SQ8.0A5, 8 Ton 5-section boom |
| Max Lifting Capacity | 8 ton (at 2.5 m radius) | |
| Max Boom Length | 17.5–18.6 m | |
| Max Lifting Height | 19.0–21.0 m | |
| Operation | Top seat control, proportional valve | |
| Slewing | Planetary single slewing, 360° | |
| Outriggers | Double-section front outriggers, span ≈7.5 m | |
| Hydraulic | Dual gear pump, oil cooler | |
| Weight | ≈3.75 ton | |
| Cargo Box | Dimension | 6,100 × 2,450 × 550 mm |
| Structure | Side 3 mm / Floor 5 mm, reinforced engineering box |
