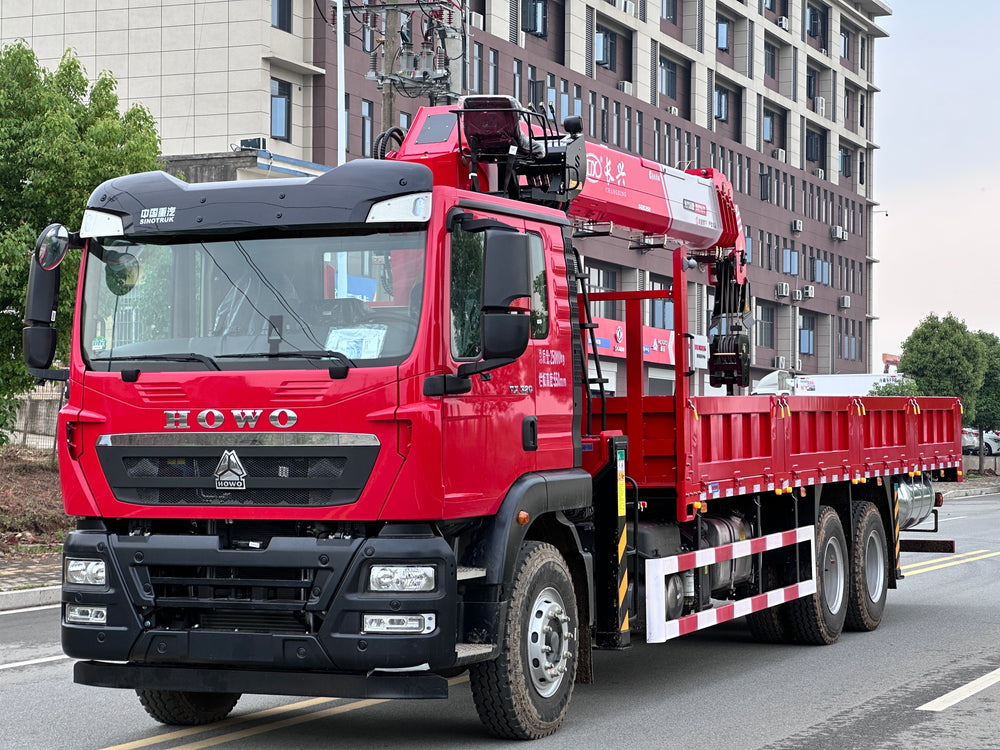

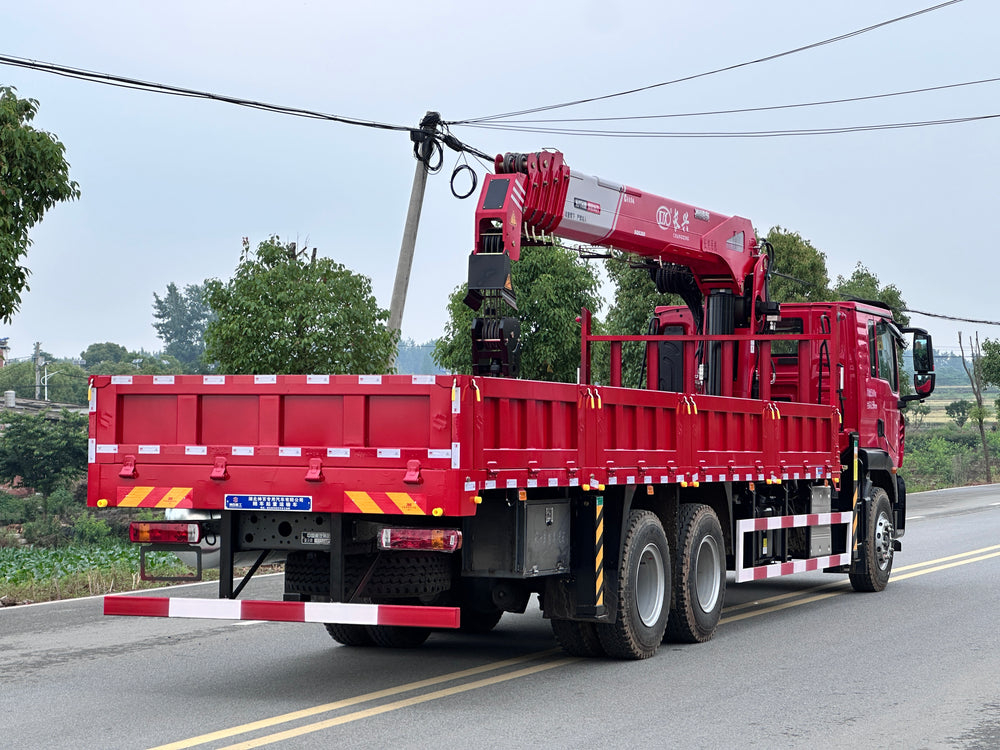

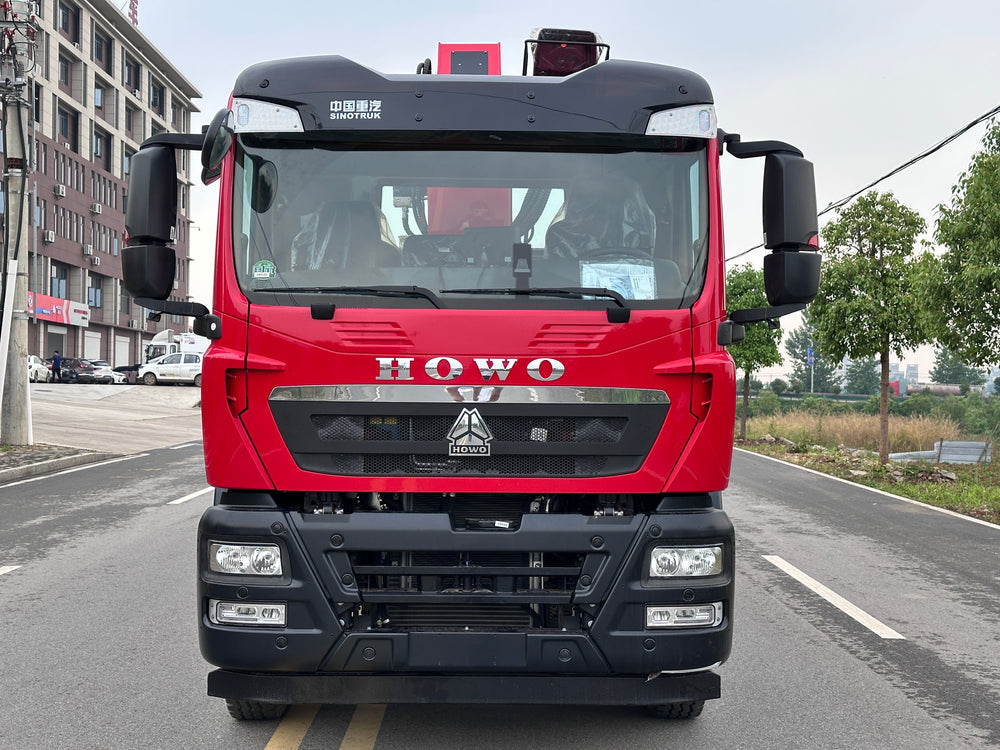

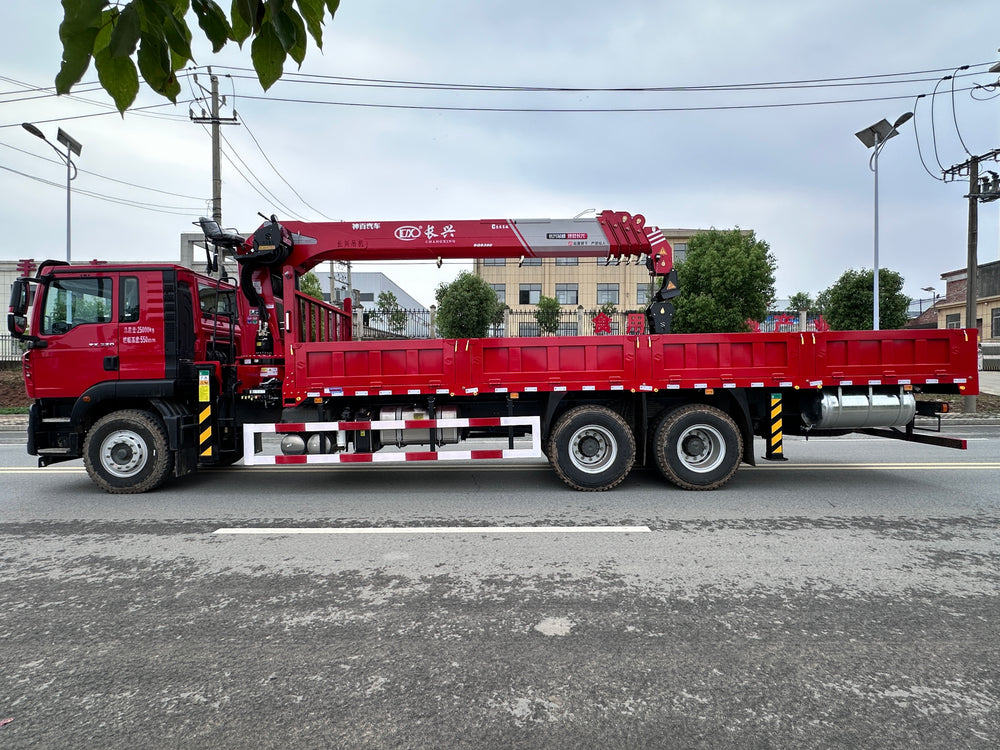

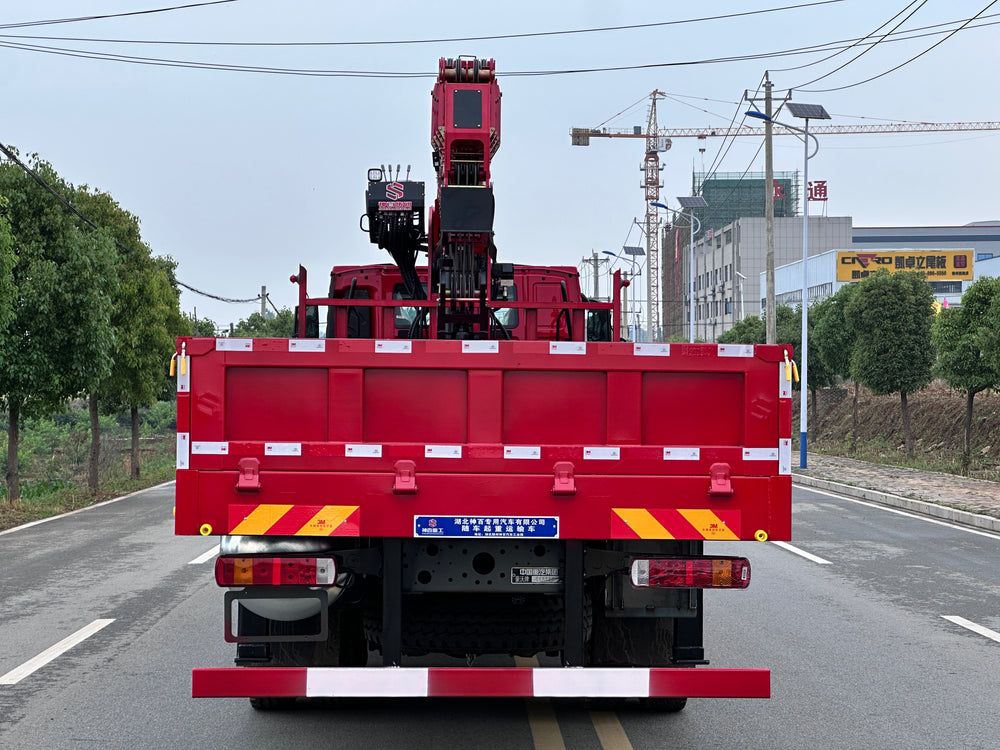

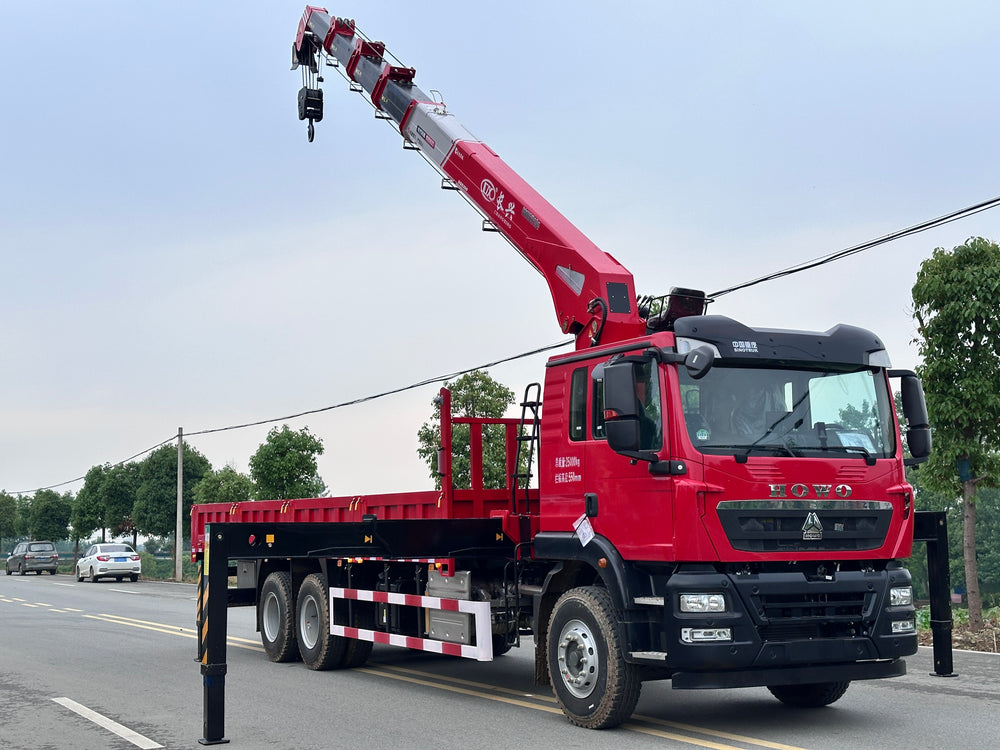

SINOTRUK HOWO TX 6×4 | 9-speed | Changxing 14T 5-section Boom Truck Mounted Crane
| Category | Item | Specification |
|---|---|---|
| Basic Information | Chassis Approval No. | ZZ1257V584JF1 |
| Drive Type | 6×4 | |
| Power System | Engine Model | Weichai WP7H320E62 |
| Rated Power | 320 HP, Displacement 6.8 L | |
| Emission Standard | China VI | |
| Transmission | HW13709XSTC2 9-speed Synchronized Gearbox | |
| Power Take-off | HW70 Flange Type PTO + Cable Type PTO | |
| Final Drive Ratio | 5.143 | |
| Chassis & Running Gear | Wheelbase | 5825 + 1350 mm |
| Front Axle | 7.5 Ton Reinforced Axle | |
| Rear Axle | 13 Ton Reinforced Axle with Differential Lock & V-type Thrust Rod | |
| Frame | 3-layer Through Frame (8+5+5/300) | |
| Leaf Spring | 10 / 12 Pieces | |
| Tire | 11.00R20, Mixed Tread, 18PR | |
| Fuel Tank | 300L Aluminum Alloy Fuel Tank | |
| Speed Limit | 89 km/h | |
| Braking System | ABS (4S/4M) | |
| Exhaust System | U-type Exhaust | |
| Cab Configuration | Cab Type | TX-MATE-K Semi-sleeper Cab |
| Cab Structure | 4-point Suspension, Crash Energy Absorption Design | |
| Cab Lifting | Manual Cab Lift | |
| Shock Absorber | Front & Rear Cab Spring Shock Absorbers | |
| Seats | Air Suspension Driver Seat + Lightweight Co-pilot Seat + Middle Seat | |
| Rearview Mirror | Electric Adjustable & Heated | |
| Steering Wheel | Multifunctional Steering Wheel | |
| Bumper | High-position Non-metallic Bumper | |
| Monitoring System | SINOTRUK Intelligent Connect Version B, Emission Monitoring Terminal | |
| Crane (Changxing) | Crane Model | SQ14.0A5, 14 Ton 5-section Boom |
| Max Boom Length | 19.5 m | |
| Max Lifting Height | 21.5 m | |
| Operation Mode | Top Operation | |
| Slewing System | Planetary Single Slewing | |
| Boom Feature | Single Extension for 2nd Boom | |
| Outrigger | Double-section Composite Front Outriggers | |
| Auxiliary Parts | Full-length Subframe, Radiator | |
| Cargo Box | Cargo Box Size | 8.4 m Engineering Cargo Box |
| Box Structure | 3-layer Side Panels & 5-layer Floor Panels |
