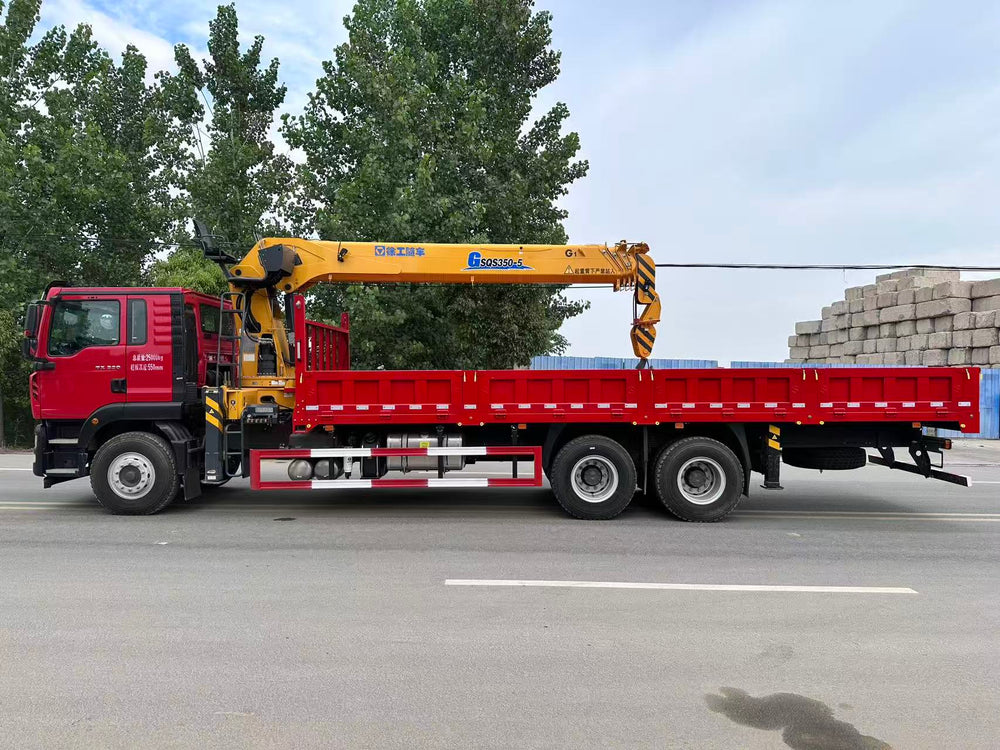

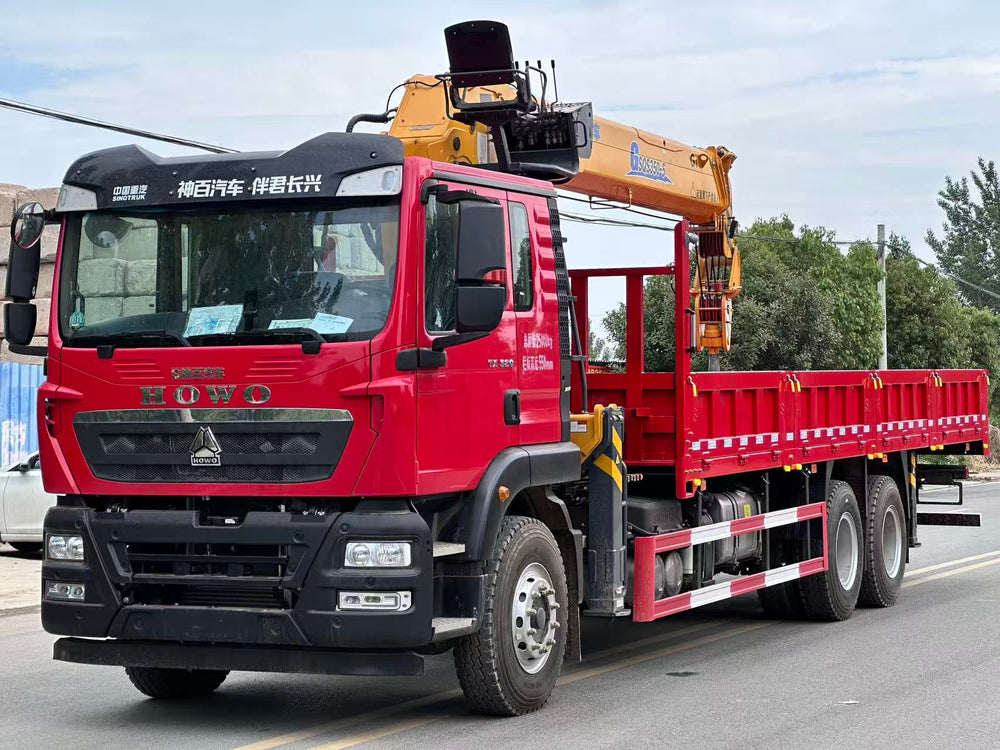

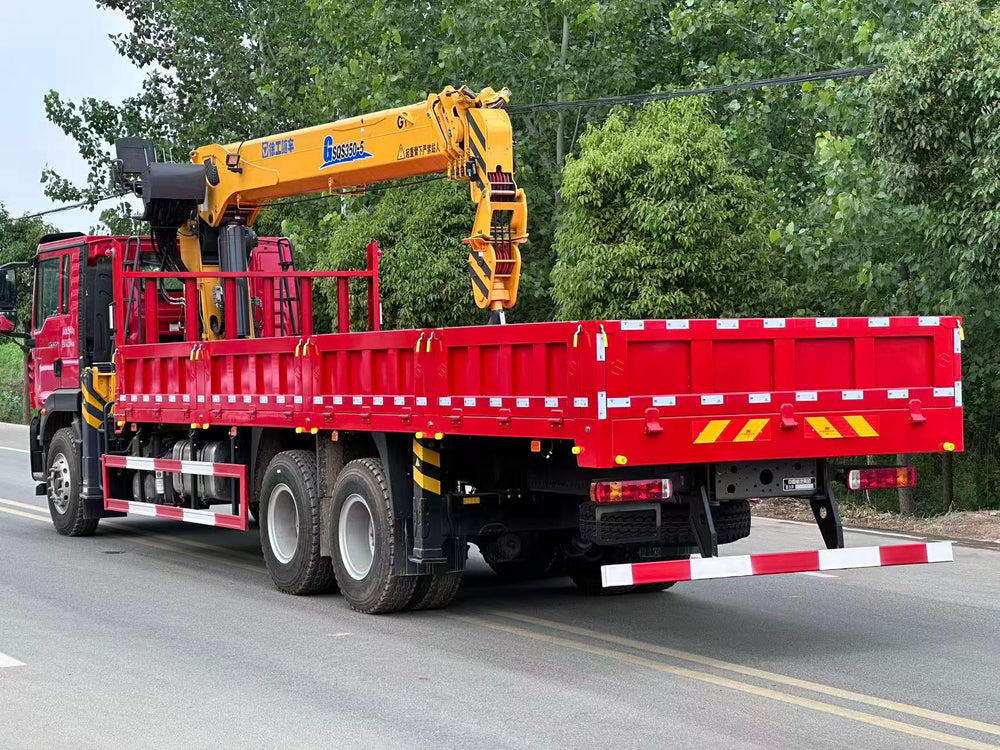

SINOTRUK HOWO TX320 6×4 Truck Mounted Crane with XCMG 14 Ton 5-Section Boom Full Specification Sheet
1. Chassis (SINOTRUK HOWO TX 6×4 Rear Eight Wheels)
| Parameter | Specification |
|---|---|

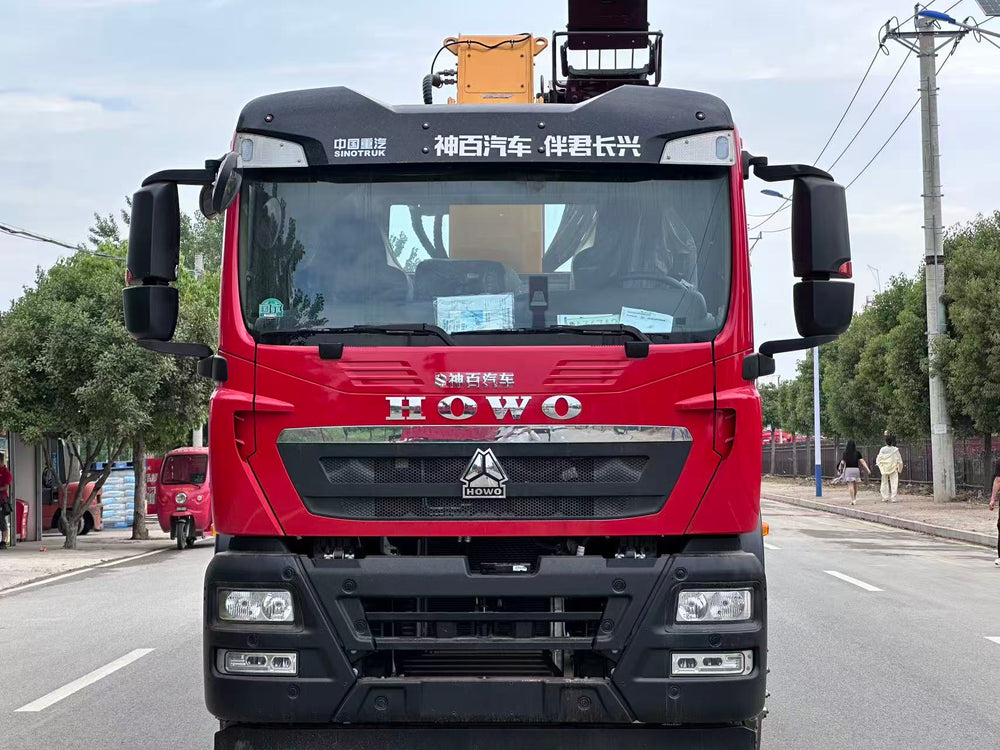

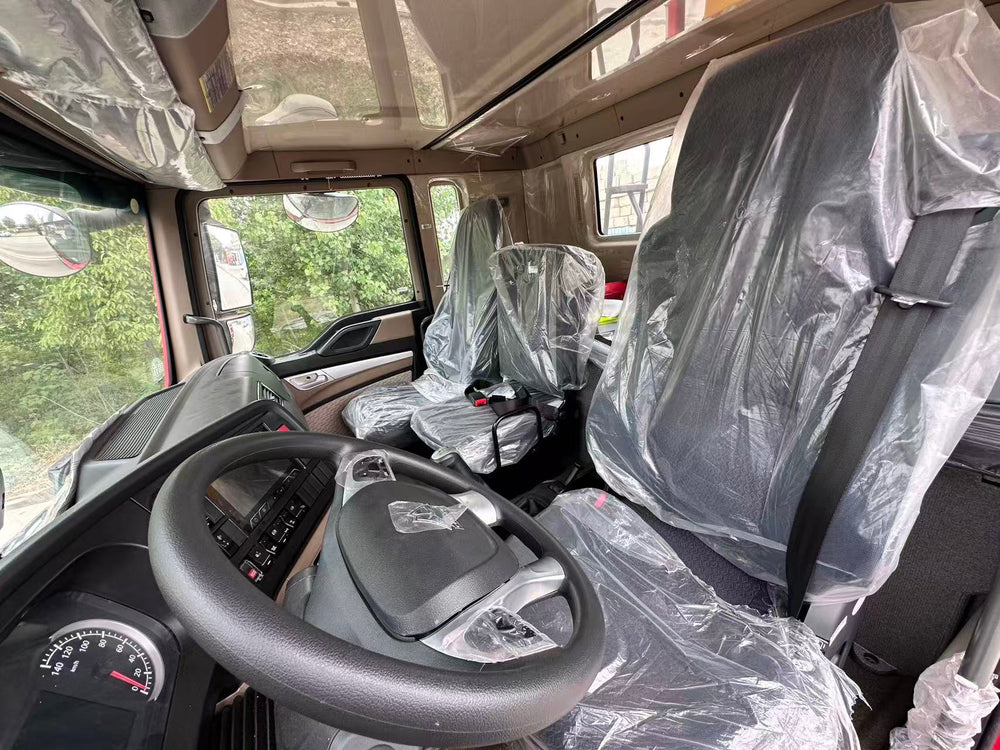

| Cab | TX-M Semi-wide/Wide-body, German MAN technology, 4-point suspension, Driver-side aviation airbag seat, Multi-function steering wheel, Central control screen, Widened sleeper |
| Engine | Weichai WP7H320E62 National VI, 7.0L displacement, 320 HP, Max torque 1400N·m |
| Gearbox | SINOTRUK HW13709XSTC 9-speed (12-speed optional), Aluminum shell lightweight design |
| Axles | Front axle 7.1/7.5 ton, Dual rear axles 13 ton (maintenance-free), Equipped with 3 differential locks + V-shaped thrust rod |
| Frame | 300mm full three-layer girder, Four-layer reinforcement at crane mounting position |
| Wheelbase | Standard 4600+1350mm; Short wheelbase optional 4200+1350mm (more flexible turning) |
| Tires | 11.00R20 18PR steel wire tires |
| Fuel Tank | 300L |
2. Upper Equipment (XCMG G Series 14 Ton 5-Section Boom SQS350-5)
| Parameter | Specification |
|---|---|
| Max Lifting Capacity | 14 Ton (at 2.5m working radius) |

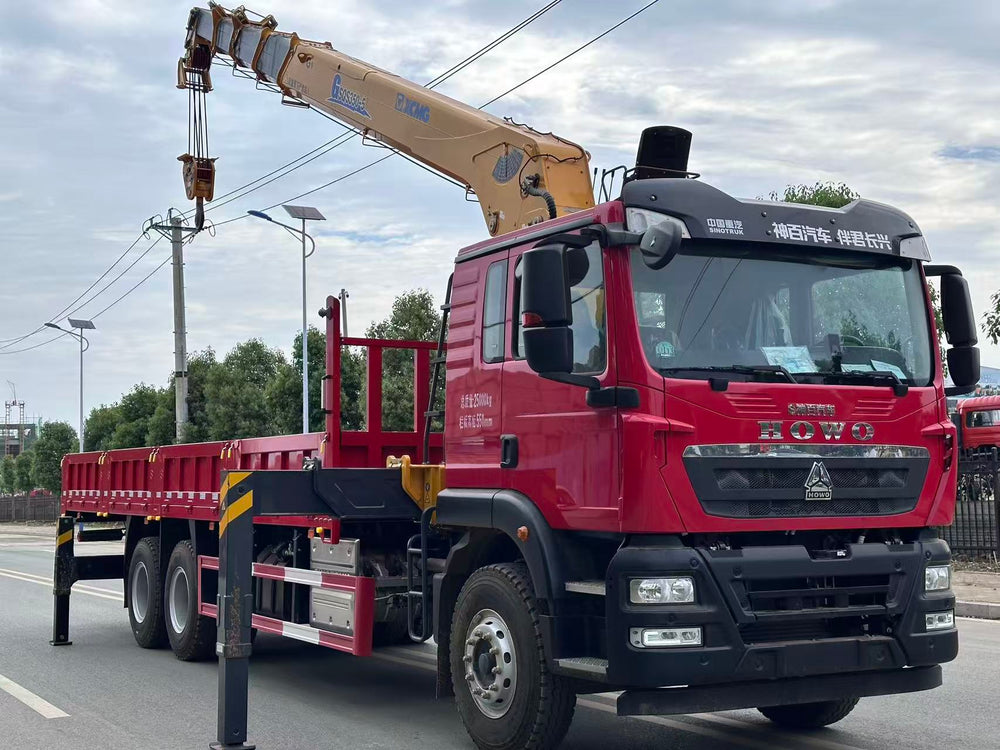

| Boom Length / Height | 5-section straight boom, Full extension 19.6m, Max lifting height 21.5–21.6m |
| Working Radius | 19.6m (full extension), Rated load at boom end 1.2 Ton |

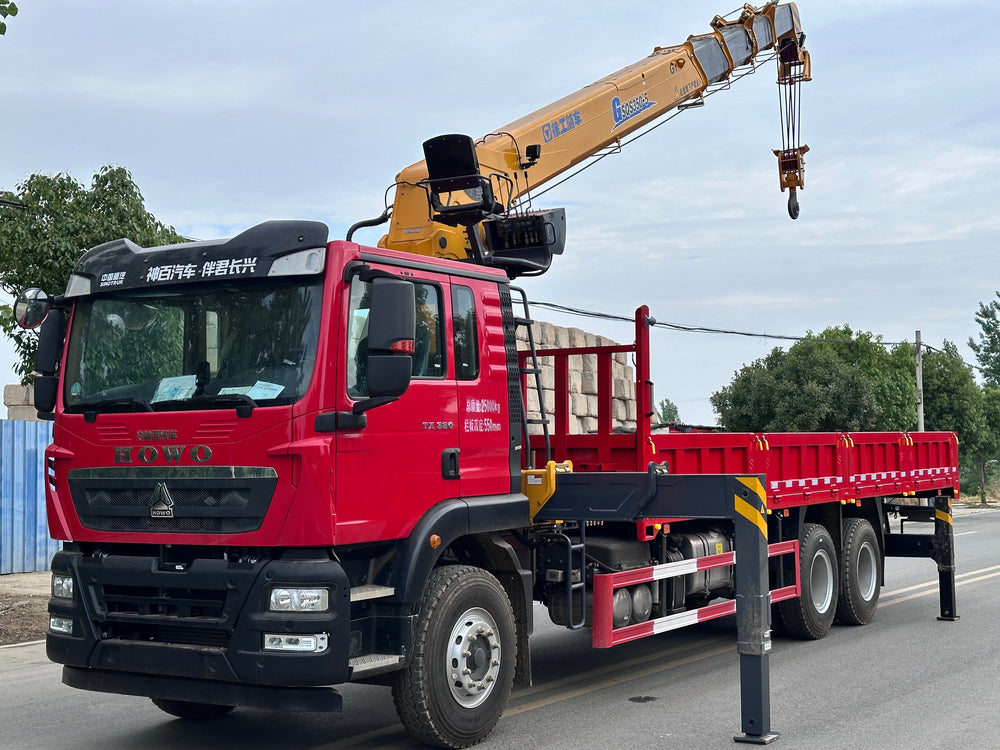

| Slewing / Outriggers | Dual slewing planetary reducer, Dual-section composite front outriggers, Span 7.6–7.7m; Hydraulic rear outriggers optional |
| Hydraulic System | Dual pump, System pressure 28MPa, Original factory radiator, Proportional valve control |
| Dead Weight | Approx. 5.25 Ton |
3. Cargo Box & Whole Vehicle
| Parameter | Specification |
|---|---|

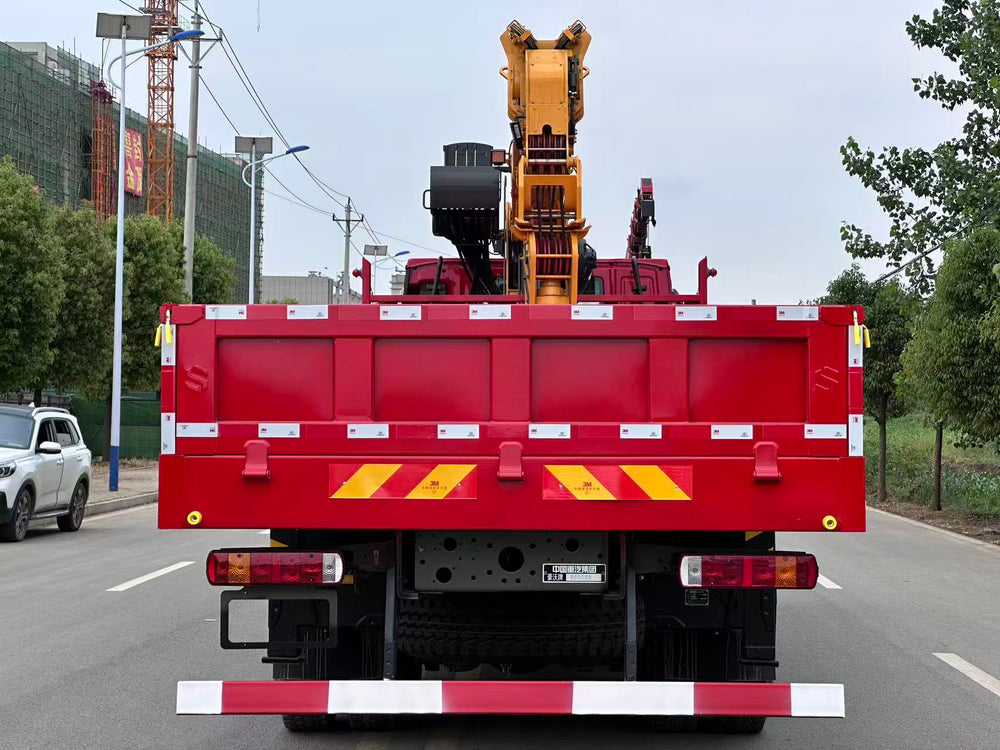

| Cargo Box | 8.4–8.5m (internal length), National standard high-strength steel plate (3mm side, 5mm bottom), Full folded steel cold riveted, Gantry frame reinforced with 6 straight channel steels |
| Overall Dimensions | Approx. 12×2.5×3.8m |
| Gross Vehicle Weight | 31 Ton |
| Curb Weight | Approx. 18.5 Ton |
| Suitable Working Conditions | Municipal engineering, infrastructure hoisting, building materials/equipment transportation, heavy load in mountainous/construction sites |
4. Core Advantages
| No. | Core Advantage Details |
|---|---|
| 1 | Strong Power: 320 HP Weichai engine + 3 differential locks, excellent off-road and slope climbing performance |
| 2 | High-performance Crane: XCMG G-series 14 ton 5-section boom, 19.6m large working radius, excellent micro-mobility and high-altitude stability |
| 3 | Stable Load Bearing: Three-layer girder + 13 ton rear axle, no deformation under heavy load |
| 4 | Comfortable Driving: Airbag seat + 4-point suspension, reduce fatigue during long-distance driving |
5. Reference Price
| Item | Details |
|---|---|
| Standard Configuration | TX320 chassis + XCMG 14 ton 5-section boom + 8.4m cargo box |
| Reference Price | 420,000 – 450,000 RMB (June 2026, fluctuates with configuration and region) |
Copy Instructions
- You can directly select the entire table content above and copy it to Word, Excel, WPS and other documents with one click;
- The table structure is standardized, and the format will be automatically adapted when pasted into most office software;
- If you need to adjust the module order or supplement parameters, you can directly edit it after copying.
