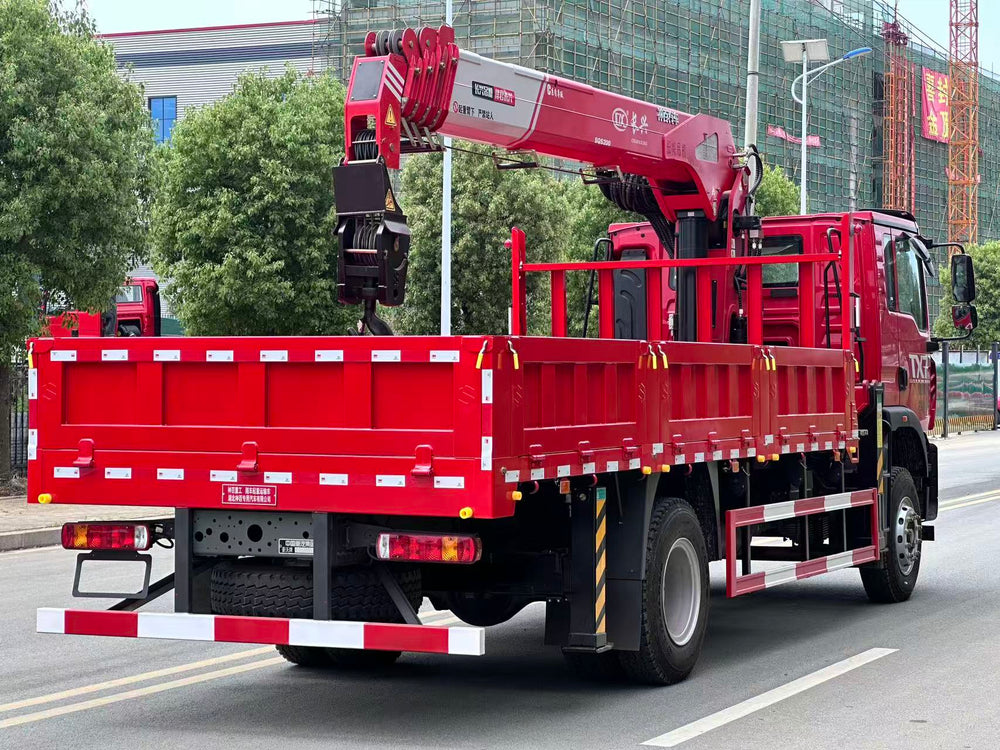

SINOTRUK HOWO TX7 | MAN Engine 290HP | Changxing 8T 5-Section Crane
| Category | Item | Specification |
|---|---|---|
| Basic Info | Chassis Approval No. | ZZ1187K501GF1 |
| Vehicle Model | SINOTRUK HOWO TX7 Truck Mounted Crane | |
| Power System | Engine | MAN MC07.29-61, 290 HP, Displacement 6.87 L |

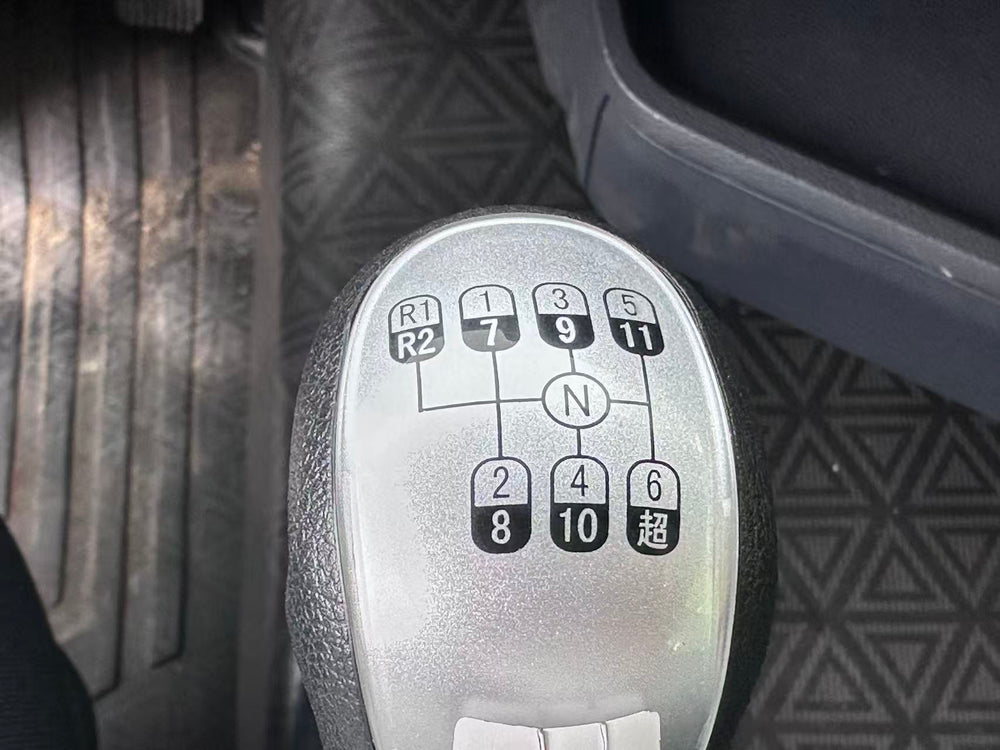

| Transmission | HW12712STC 12-speed Synchronized Gearbox | |
| Gear Ratio | 5.29 | |
| PTO | Cable Type PTO + HW45ZC Flange Power Take-off | |
| Chassis & Running Gear | Wheelbase | 5000 mm |
| Front & Rear Axle | HOWO Reinforced Engineering Axle (7t/13t) with Differential Lock | |
| Frame | Three-layer Through Frame (8+4+4/300) | |
| Leaf Spring | 11/9+8 Pieces | |
| Tire | 10.00R20, Mixed Tread, 18PR | |
| Speed Limit | 89 km/h | |
| Braking System | ABS (4S/4M) | |

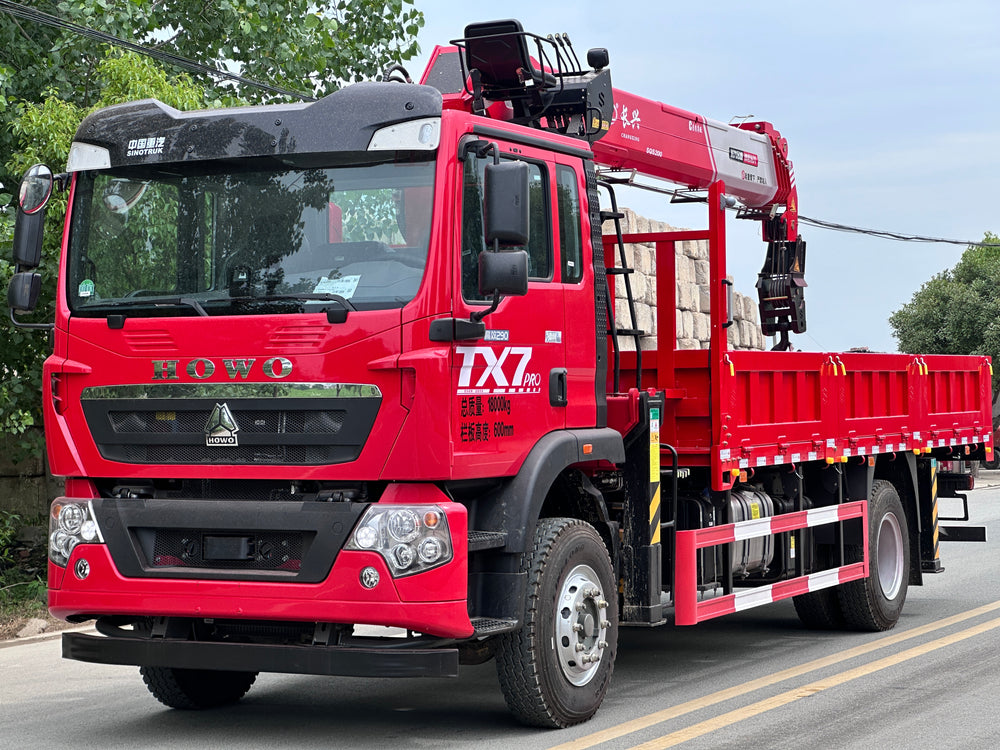

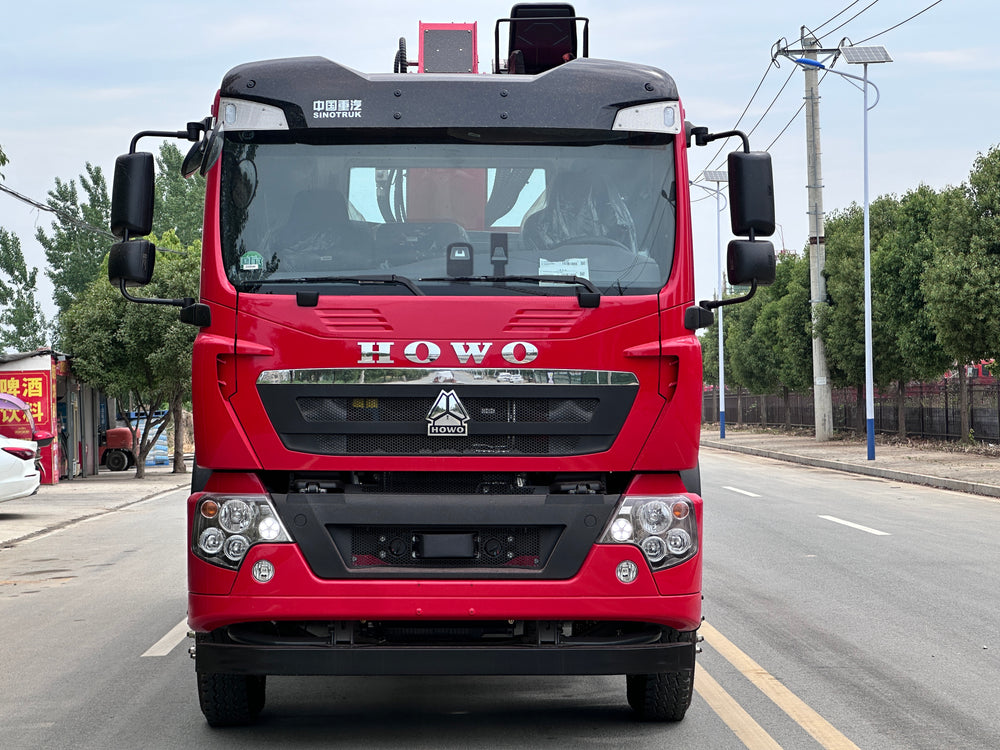

| Cab Configuration | Cab Type | TX-D Semi-sleeper Cab (Original MAN Cab) |
| Cab Structure | 4-point Suspension, Crash Energy Absorption Design | |

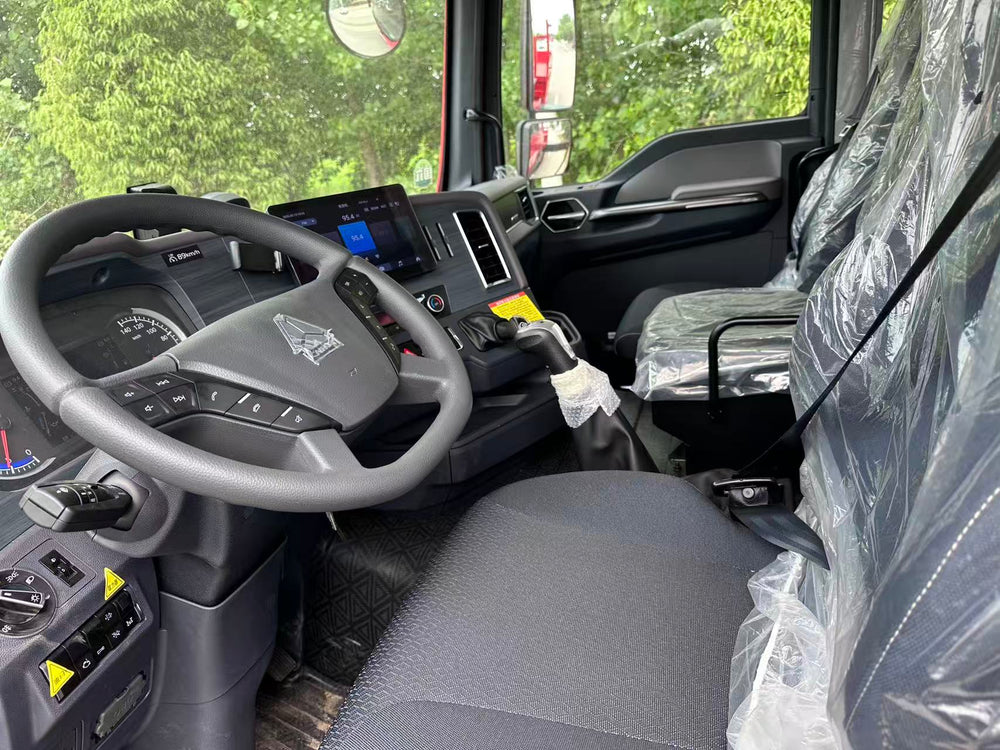

| Seats | Air Suspension Driver Seat + Standard Co-pilot Seat + Middle Seat | |
| Exterior Mirror | Electric Adjustable & Heated Rearview Mirror | |

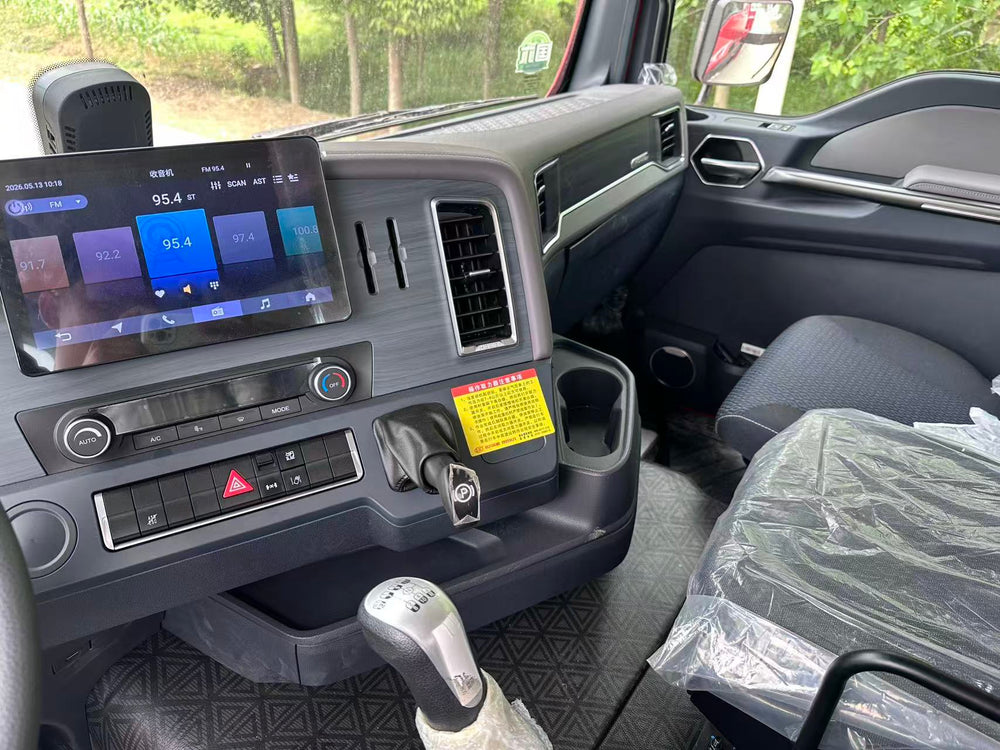

| Interior | Multifunctional Steering Wheel, 10.1" HD MP5 Screen | |
| Auxiliary Parts | Mechanical Main Switch, 120AH Battery, 200L Aluminum Fuel Tank | |

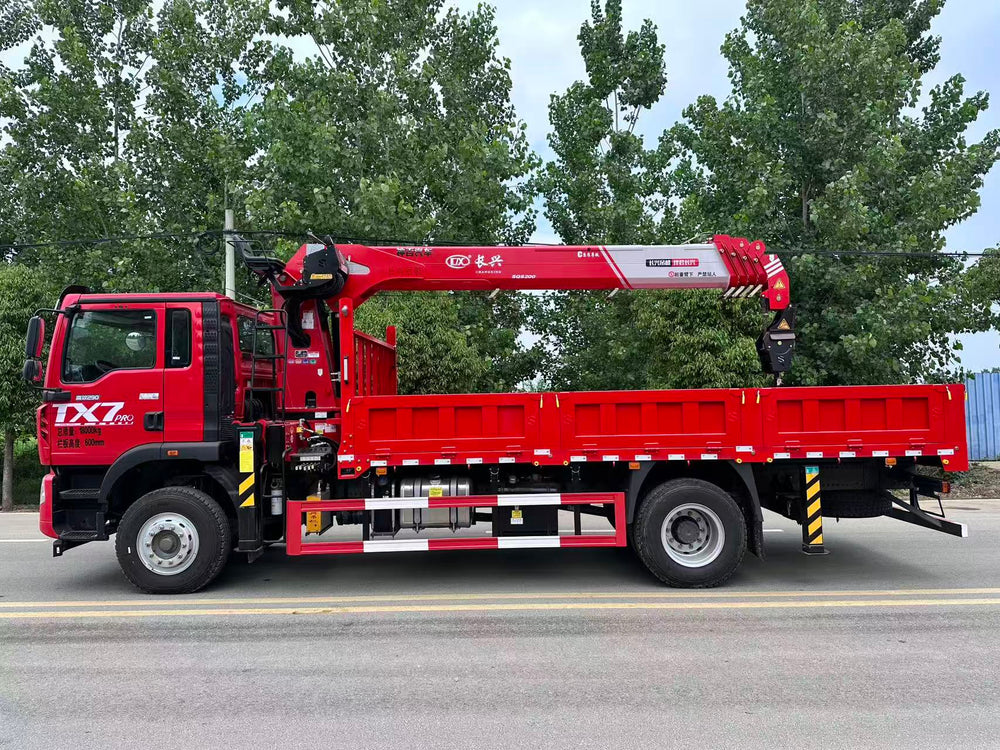

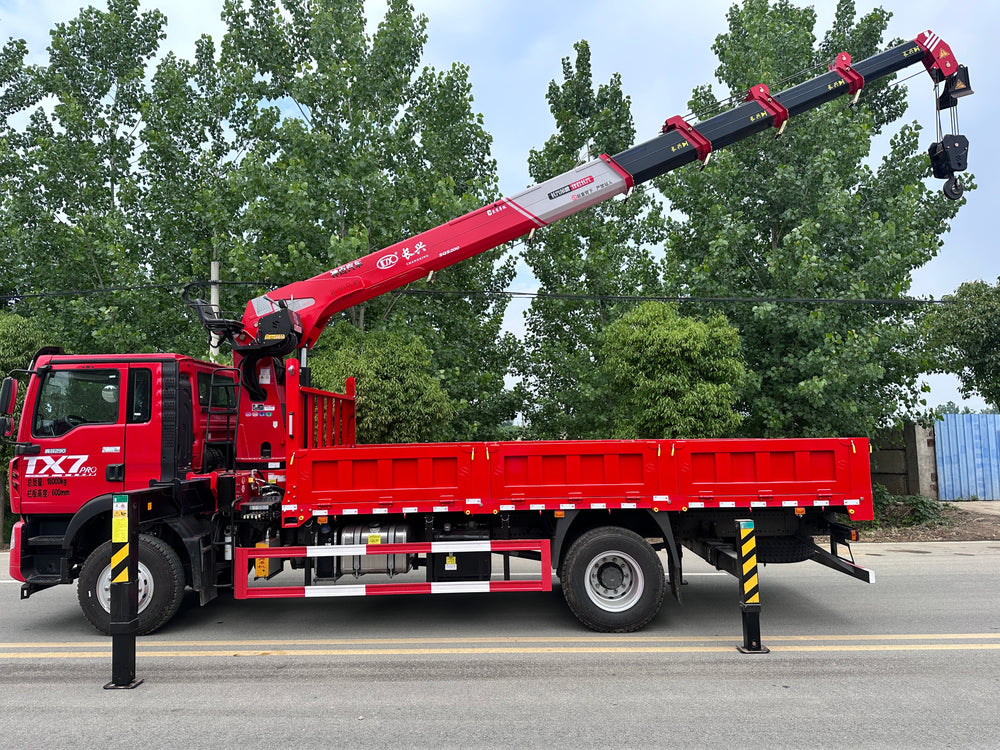

| Crane Superstructure | Crane Brand & Model | Changxing 8 Ton, 5-section Boom |
| Max Boom Length | 17.9 m | |
| Operation Mode | Top Operation | |

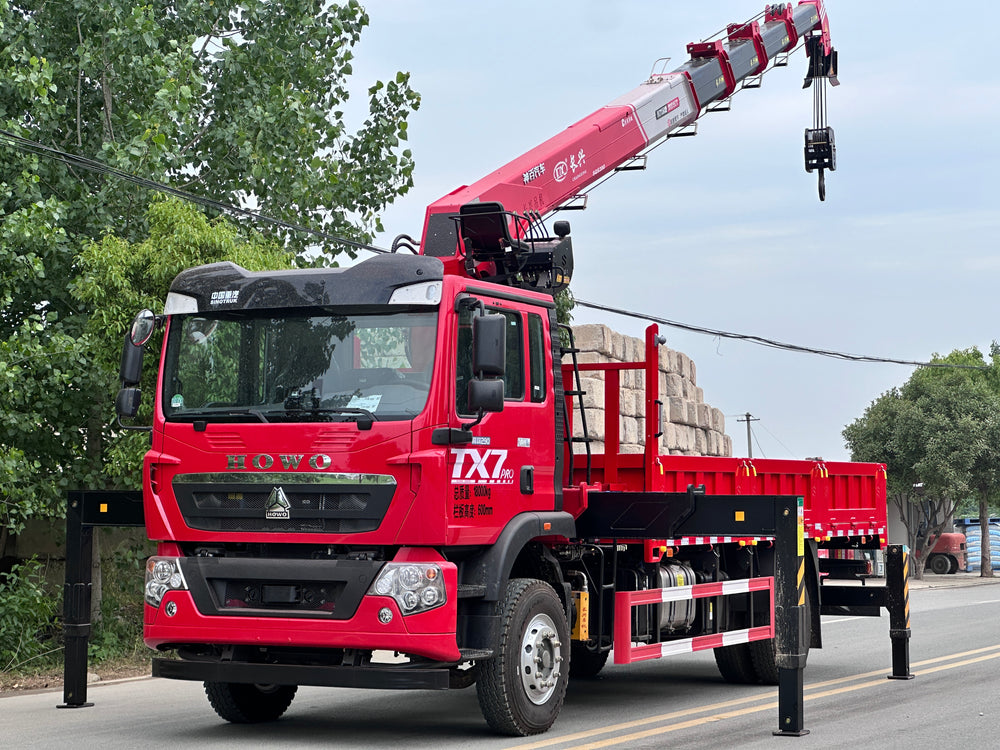

| Slewing & Outrigger | Single Slewing, Double Outriggers | |
| Auxiliary Parts | Full-length Subframe, Radiator | |
| Cargo Box | Size & Structure | 5.9 m Engineering Cargo Box, 3-layer Side / 5-layer Floor |
| Core Advantages | Overall Matching | Integrated Engine-Gearbox-Axle Design |
| Road Adaptability | High Torsion Resistance for Complex Road Conditions |
